Sample Rate

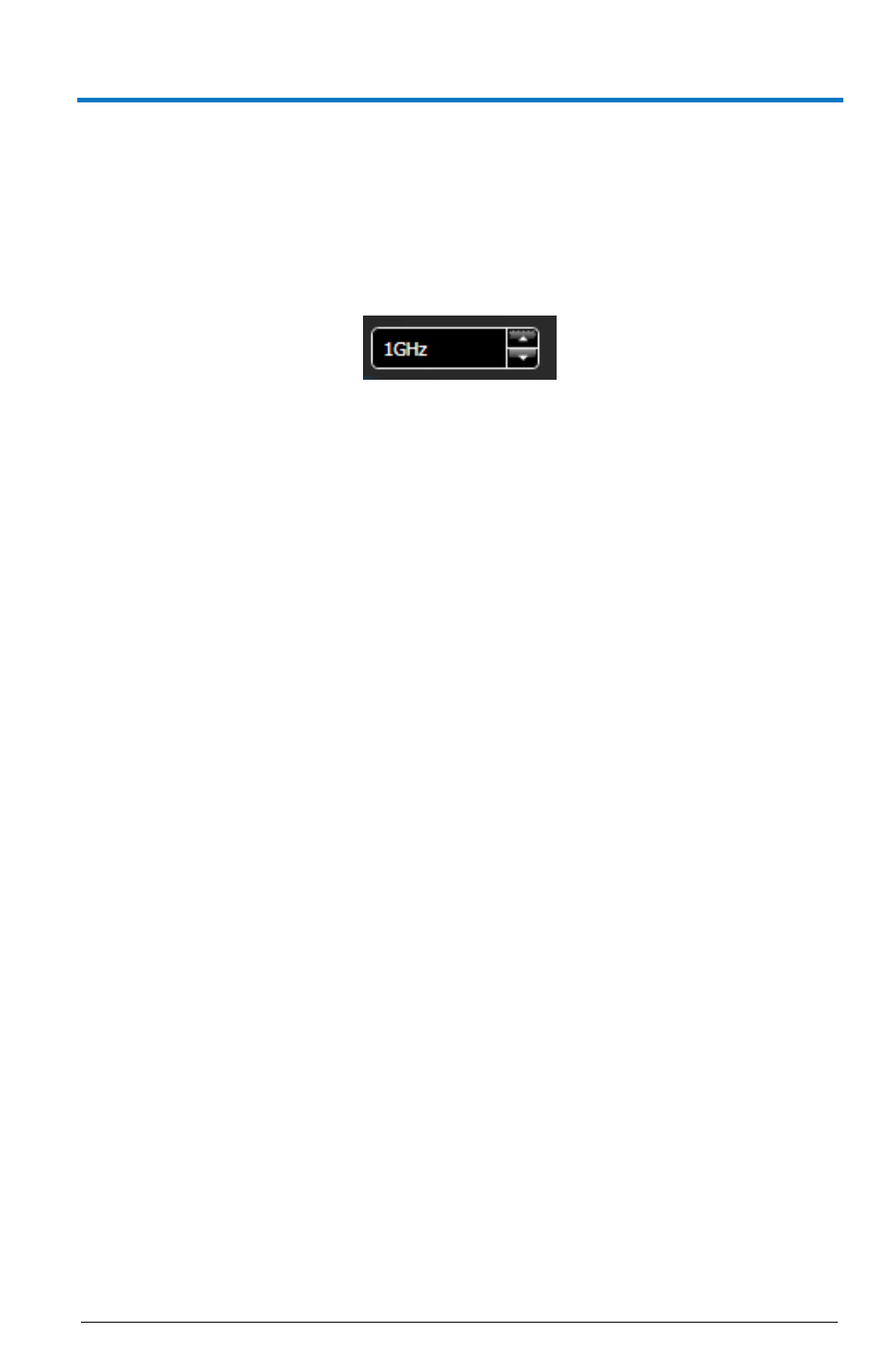

The Sample Rate spinner control is located at the top of the dashboard just
to the right of the Setup buttons. It shows the selected rate of sampling for
the digital pod. Use the up/down arrow buttons at the right of the control
to cycle through the higher/lower sample rates available on the device.
Changes made on the Sample Rate take effect on subsequent acquisitions.
The Menu Bar
The Menu Bar is a series of pull down listings along the top of the
application screen. These pull down listings provide access to some
additional features and alternative ways use some aforementioned
functions and controls.
Save/Load Setup, Acquisition, or Screenshot
Save/Load functions are accessed under File on the menu bar.
Save/Load Setup
Located under File → Save/Load Setup on the menu bar, this function lets
you save your current configuration to a file or load a previously saved file
back into LogicStudio. This includes all configurations of signals, device
settings, triggering, and view state.
Default Setup
Located under File → Default Setup on the menu bar, this function resets
the application setup to the default configuration. The default setup
contains 16 simple digital line signals D0 – D15.
Save/Load Acquisition
Located under File → Save/Load Acquisition on the menu bar, this function
allows you to save the complete set of samples (digital and/or analog)
included in your currently displayed acquisition. When using the
RearView™ tool, the currently selected acquisition is saved. The resulting
acquisition file can then be re-opened in LogicStudio for further
examination, or sent to another LogicStudio user for additional analysis.
Data loaded into LogicStudio can be manipulated and displayed exactly the
same as when it’s acquired live. The current Setup is also saved with the
