LogicStudio
A
28 922294 Rev A
different logical ways including: A only, B only, A and B, A or B, A then B,
and B then A.
The yellow arrows update to display the logical flow based on your choice.

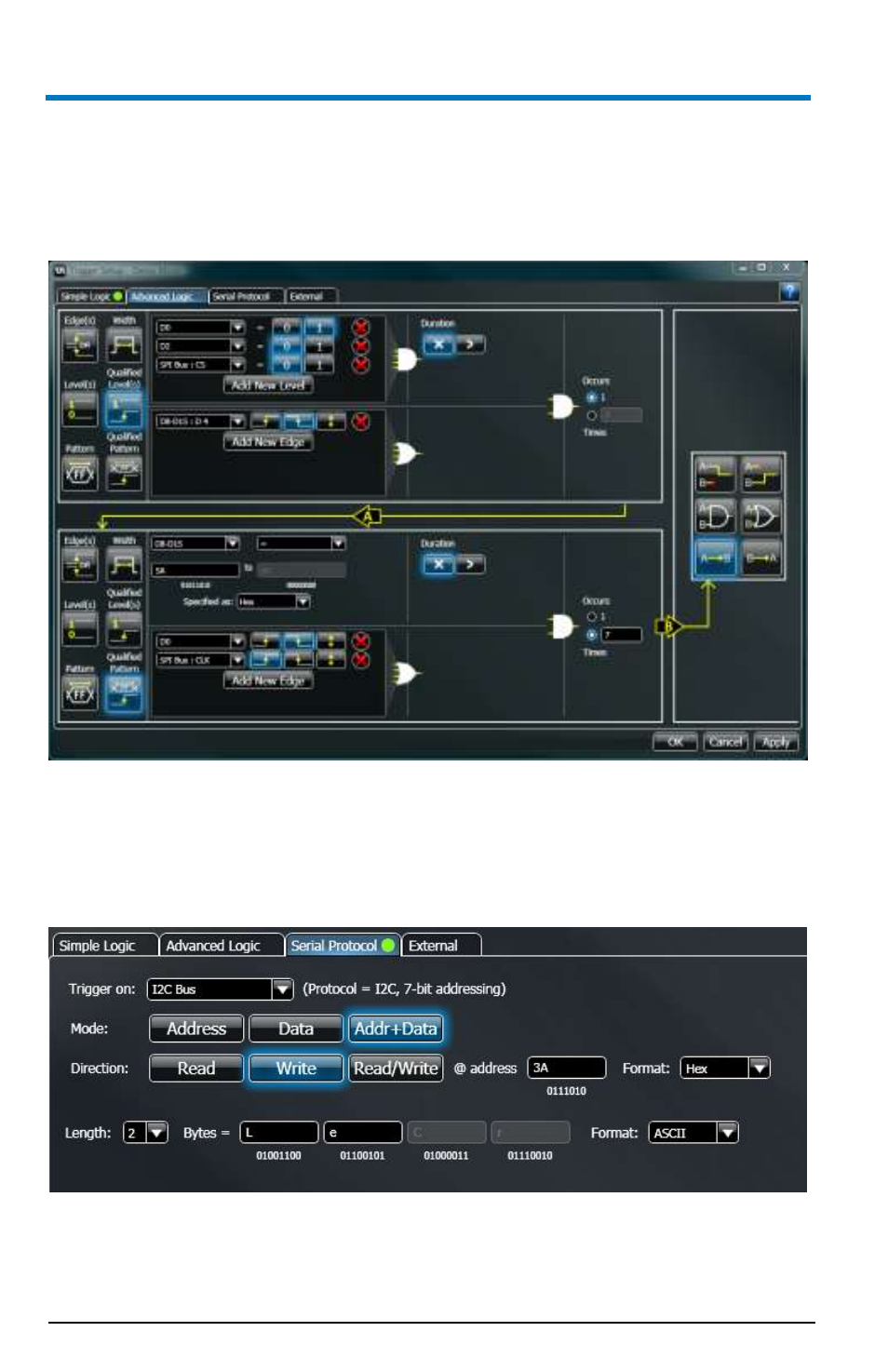

An example of the Advanced tab is shown here.
S ERIAL P ROTOCOL T AB
Use this tab to define triggers on serial decode signals you may have
defined for I2C, SPI, or UART protocols. An example of an I
2
C trigger is
shown here.
E
XTERNAL
T
AB
Use this tab to set the logic pod to trigger on an external input signal. A
threshold voltage for the signal can be specified.
