WorldView

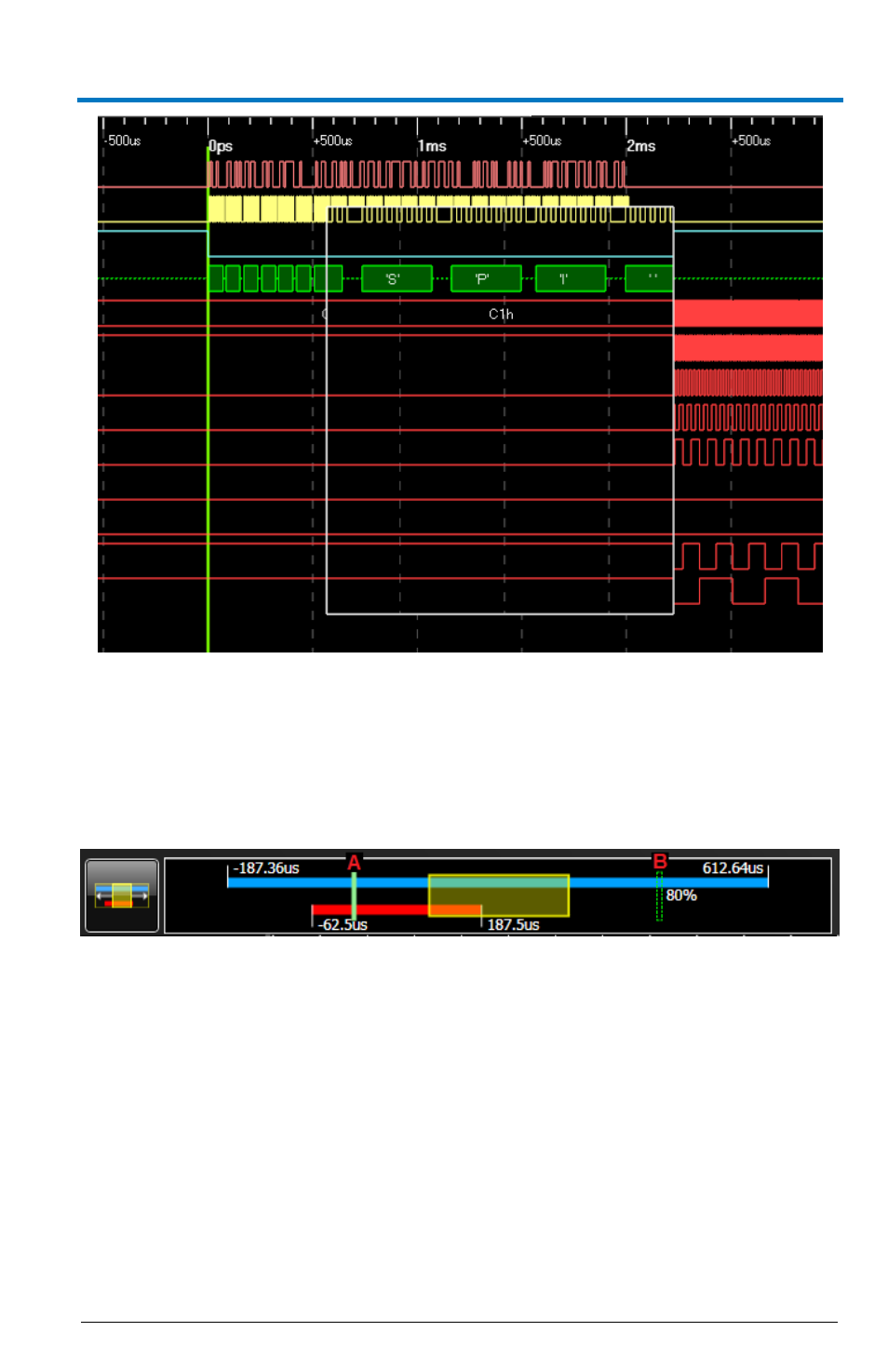

The WorldView is an extremely powerful control just above the waveform
display on the dashboard. Not only does it provide important high-level
waveform information, but it also allows for display configuration and even
pre/post-store settings. The control is shown below:
The WorldView is primarily a high-level presentation of the current
relationship between your displayed acquisition(s) and your current view in
the main waveforms display. The display automatically updates to reflect
the current conditions whenever display adjustments or a new acquisition
is obtained.

The blue horizontal bar represents the digital samples
acquired. The labels on each end of the bar show the time
extent of that data relative to the trigger point.

The red horizontal bar represents analog samples (if present)
acquired from an attached oscilloscope and the labels on each
