Show/Hide – Allows you to remove signals from view without
deleting the configuration.

Stacked/Freeform Modes –The signal control panel automatically
displays signals in Stacked mode - meaning they are shown as
individual rows listed in the waveform display area. When you
change the signal control panel setting to Freeform mode, you can
use vertical click-and-drag mouse icon (in the grip area at the left
of a given signal) to drag signals and superimpose them over other
signals in the waveform display area.
NOTE : When in Stacked mode, the grip area’s vertical click-and-drag mouse
icon rearranges the order of your signals (see Arranging Your Signals for
more information) instead of superimposing the signals.

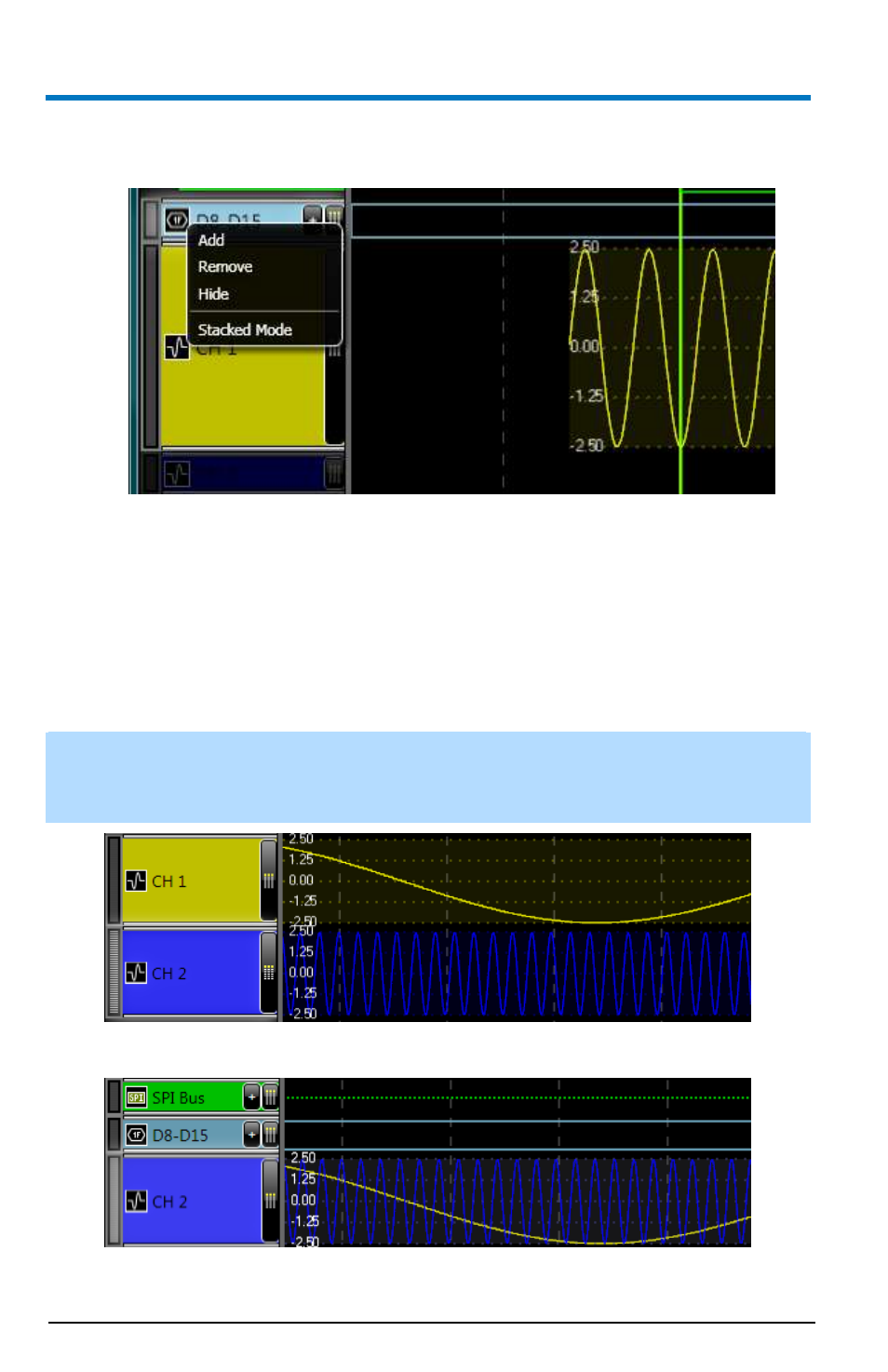

Channels 1 and 2 in Stacked Mode.
Channel 2 superimposed over Channel 1 using Freeform Mode.
