Modifying a Signal
Click a signal’s colored name box and corresponding details for the signal
are shown on a dialog at the bottom of the waveform display area. This
dialog shows contents based on the selected signal’s type. It is the same
dialog used for individual rows on the
Signals List setup screen.

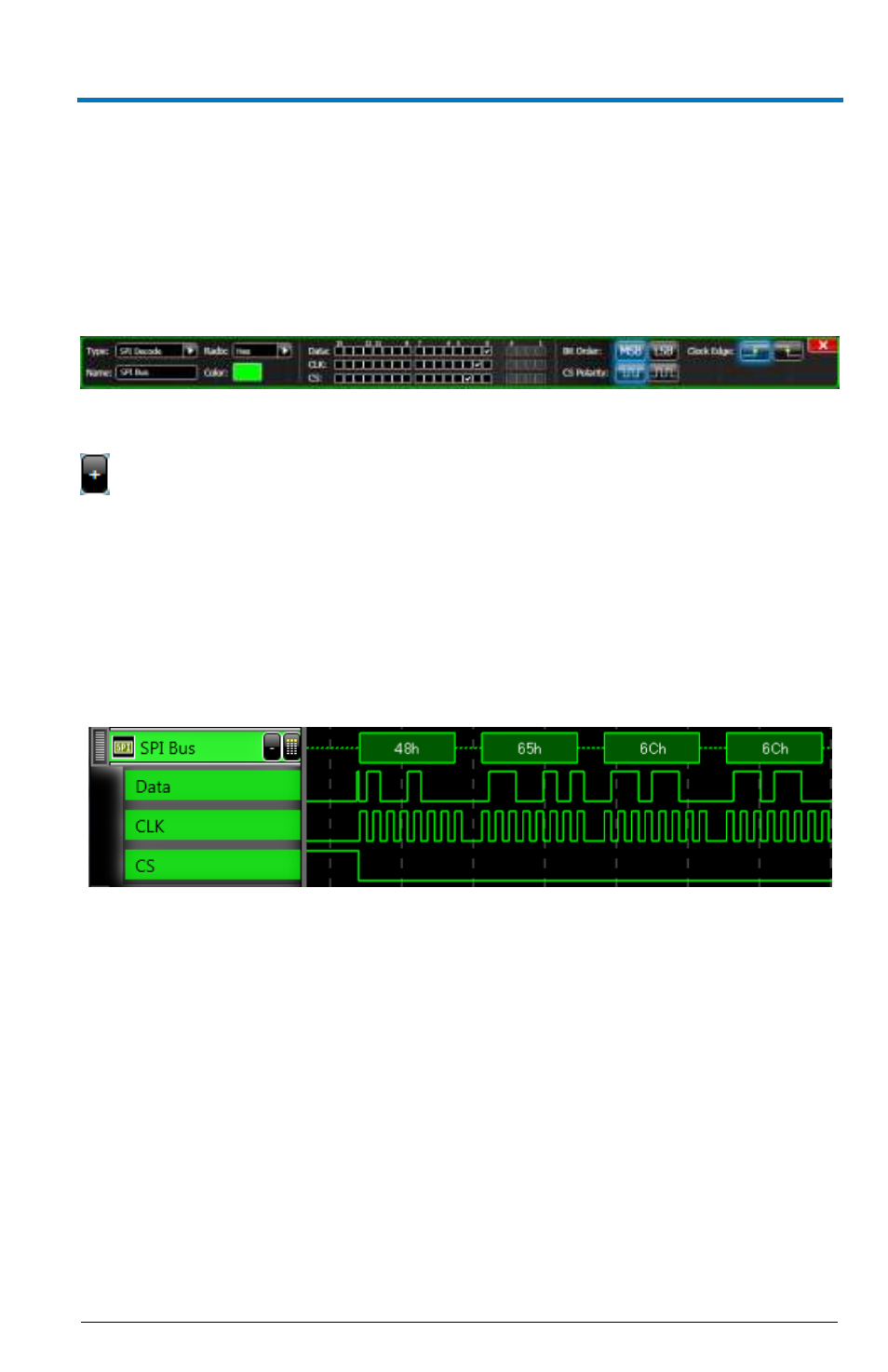

The following screenshot shows a SPI decode signal dialog.
Complex Signals
Digital Bus, Digital Wave, and I2C /SPI/UART Decode type signals are all
complex signals that can be comprised of more than one source channel.
Signals of these types have an expand/collapse button on their right side
allowing you to show/hide the individual source channels as Digital Line
type signals.These sub-signals cannot be directly modified and are
automatically named based on how they apply to the complex signal. An
example of an expanded SPI Decode is shown in the following screenshot.
