You cannot make new acquisitions without a connection to a digital pod.
However, you do not need to have an oscilloscope connected to create
acquisitions.
PLEASE NOTE THE FOLLOWING :

Disconnecting the oscilloscope can speed up the rate of
acquisitions if you temporarily don’t need the analog data.

Refer to the Oscilloscope Models Supported by topic for a list
of supported oscilloscopes.

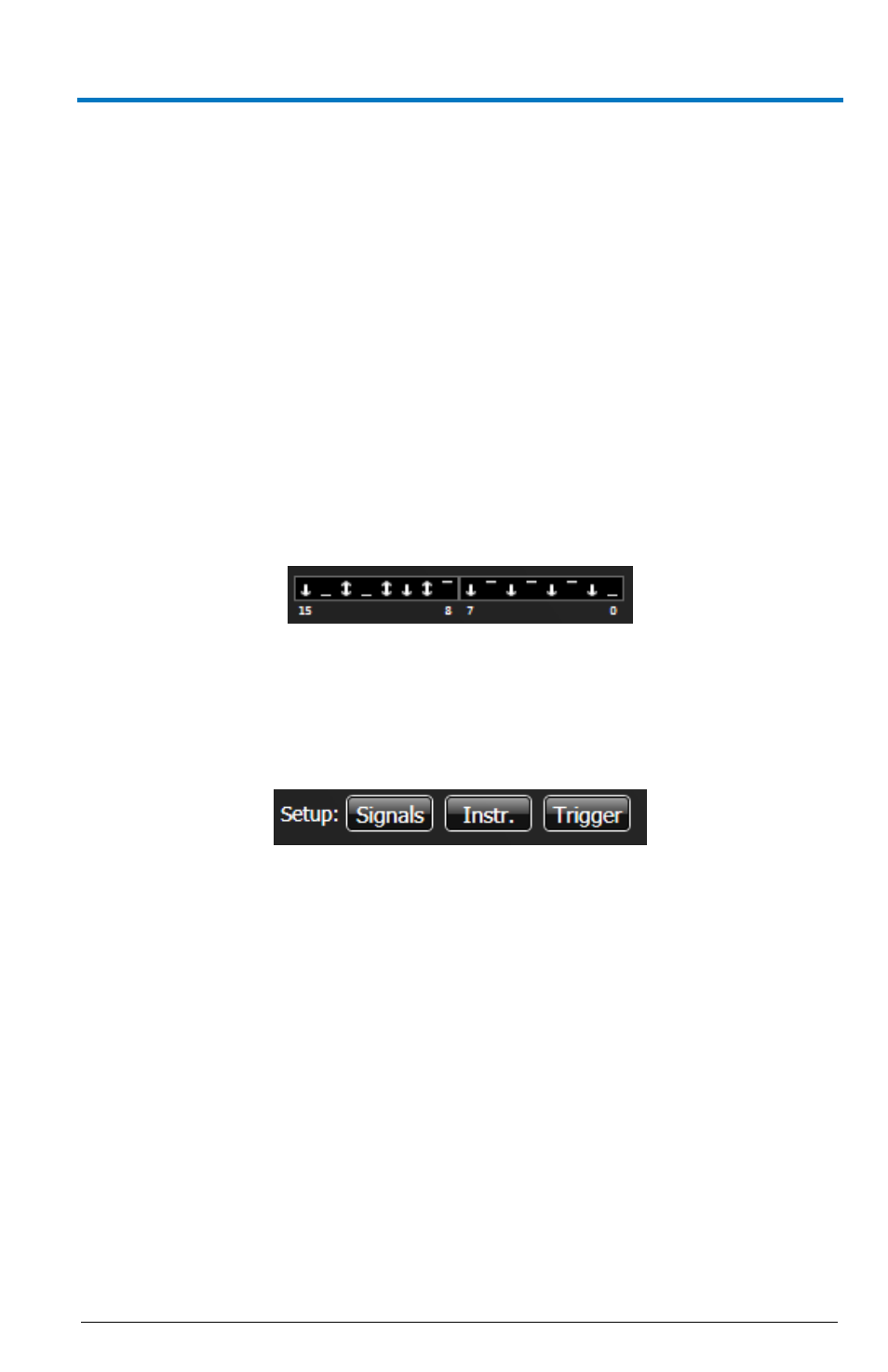

Pin Activity
The Pin Activity display is located at the top of the dashboard. It shows the
activity status of all digital device channels in real-time (regardless of
application or device state).
Setup
Three Setup buttons are directly to the right of the device connection
buttons. The Setup buttons allow for configuring the application and digital
device.
Signals List
Clicking the Signals button shows a screen containing a list of all signals to
be rendered on the waveform display. The Signals list looks like the
following:
