9.2 Checking Connection
When you start the application, the connection check dialog box (Figure 9.2.1) appears first. The PC
communicates with the driver according to the “communication port” and “baud rate” set in the application
setting window, which is explained later.
When the connection with the driver is checked, the application starts up in the online mode. If the driver
cannot be found or the Esc key is pressed, the application starts up in the offline mode. (Even if the
application is started up in the offline mode, it is possible to switch to the online mode by performing
“re-connection,” which will be explained later.)

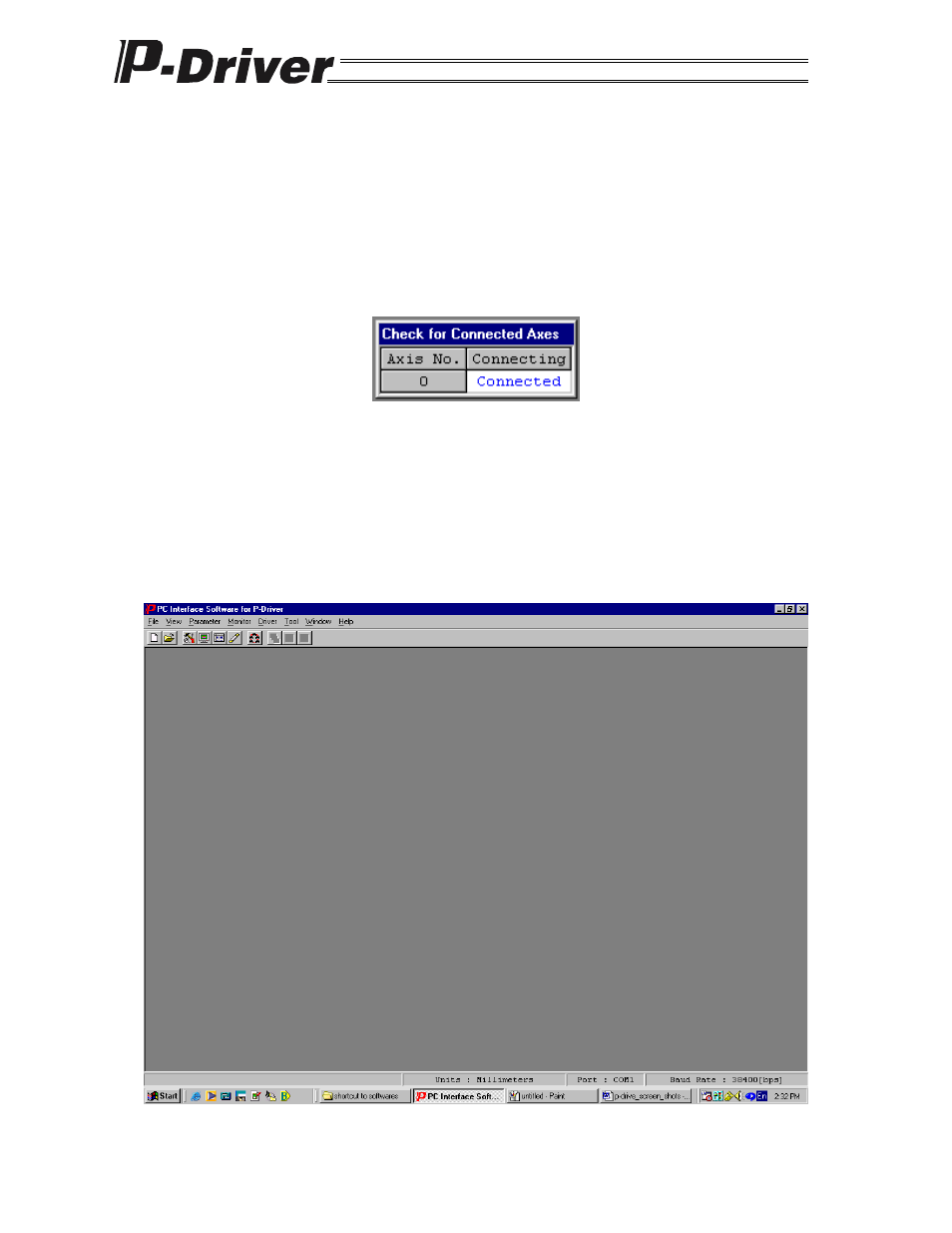

Figure 9.2.1 Connection Check Dialog Box
9.3 Main Window
When the connection check is completed, the online startup window (Figure 9.3.1) appears. If the driver
cannot be found, the window starts up in the offline mode (Figure 9.3.2). Select the following items from the
menu or click the corresponding tool buttons to operate the software.
Figure 9.3.1 Online Startup Window
