c. Click the Display tab to display the window shown in Figure 9.7.2.

In this tab, you can set the display unit and coordinate revised display.

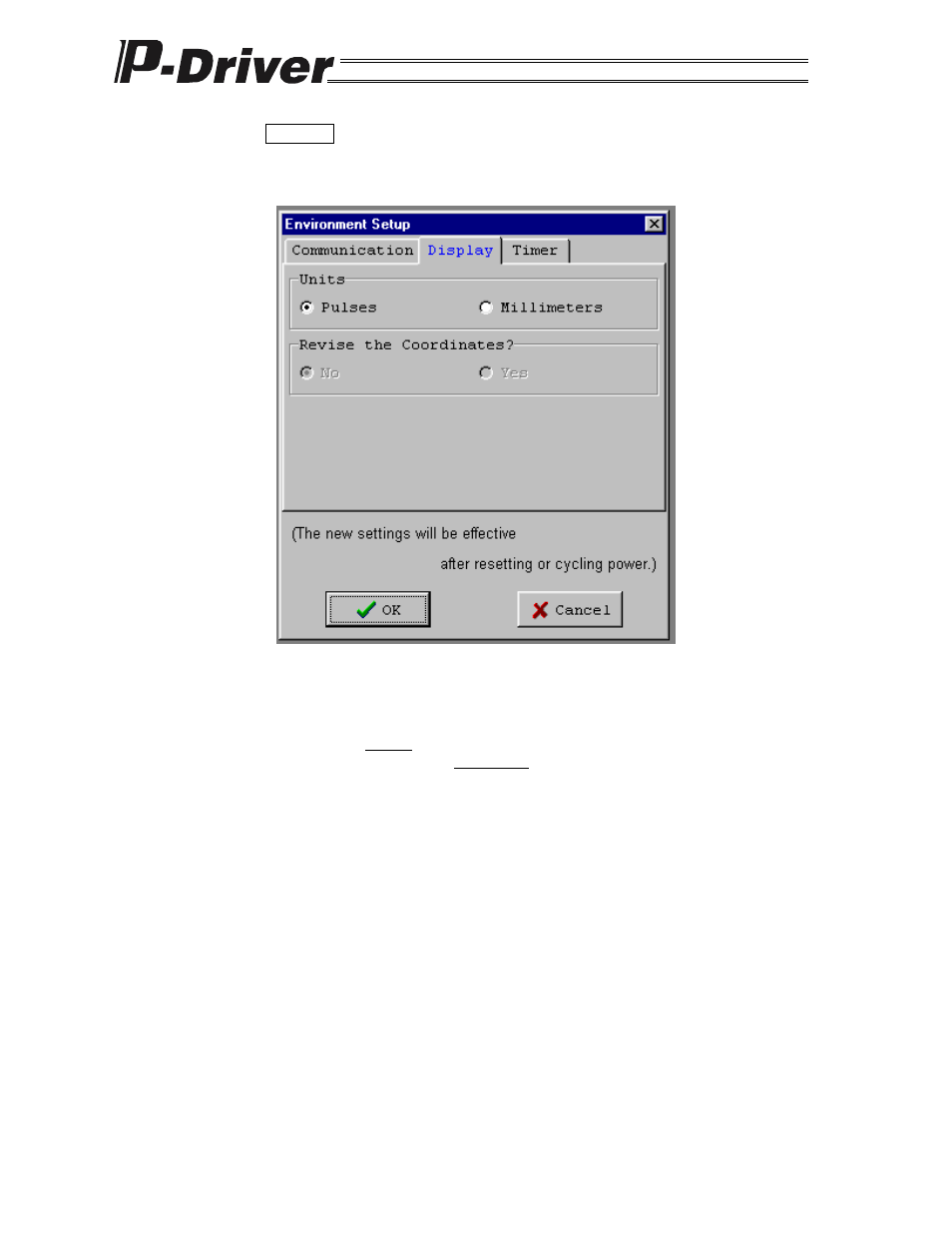

Figure 9.7.2 Environment Setting – Display

If you set the display unit to Pulses, parameter inputs and the current values in the monitor are
displayed in units of pulses. If you select Millimeters, you can input and display values in
millimeters, after conversion using parameters such as the lead length and the number of encoder
pulses.
