13
4. Wiring

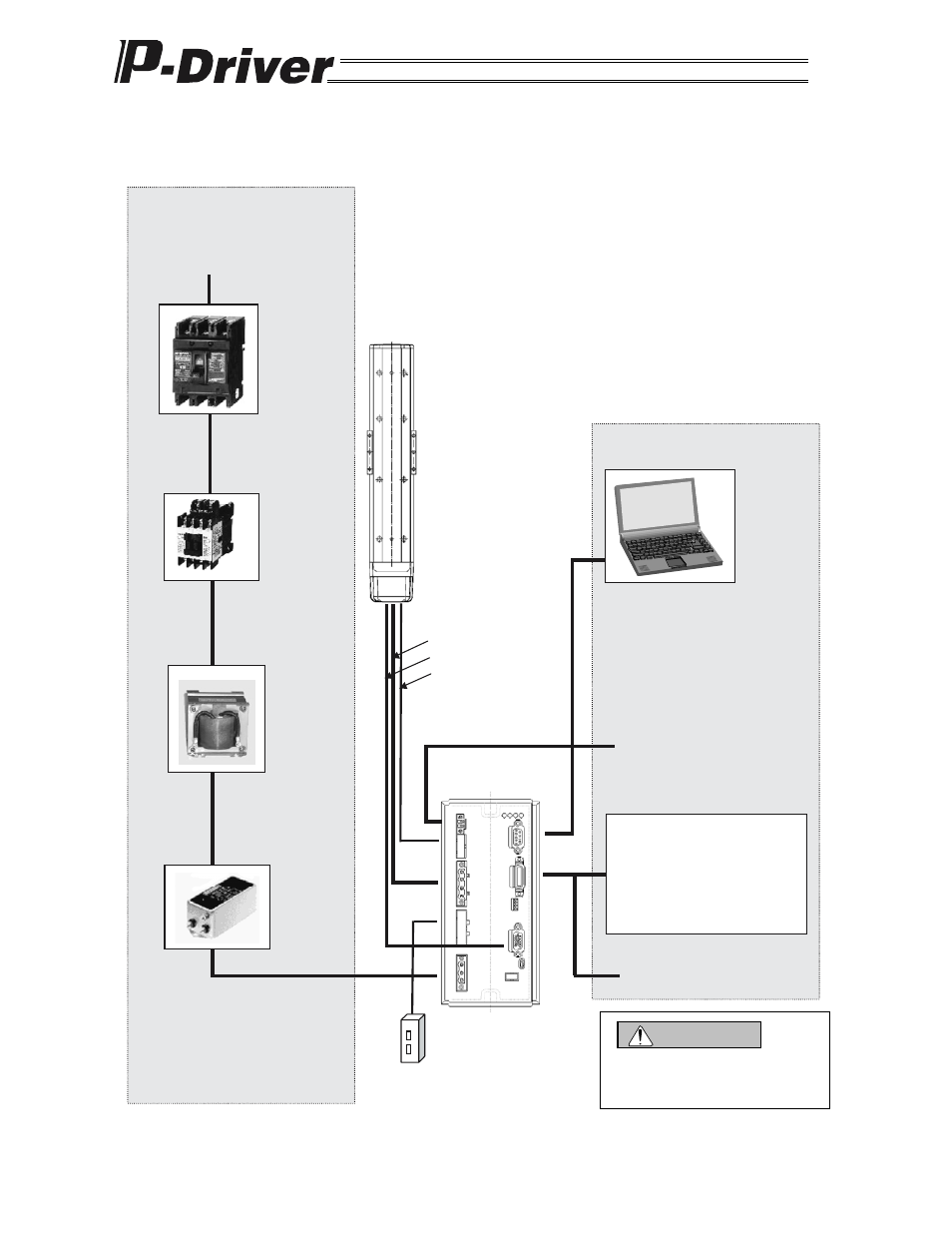

4.1 Configuration
100~115 V 50/60 Hz
200~230 V 50/60 Hz
Power supply for I/O signals
24 VDC 0.8 A
[Parts to be prepared by
the customer]
Single-phase AC power supply
Power-supply breaker
Switches the power
supply on/off and
prevents damages due
to short-circuit current.
Electromagnetic contact
Used when disconnecting
this product from the
power supply, such as at
emergency stop.
AC reactor
Used when the
power-supply capacity is
large, in order to control
voltage fluctuations and
higher harmonics.
Line filter
Since the PWM control circuit of this
product generates higher harmonics
due to switching, radiation noise and
conduction noise may influence
peripheral devices connected to the
same power supply. In such cases,
mount a line filer.
Actuator
Motor cable
Encoder cable
LS cable (optional)
[Parts to be prepared by
the customer]
General-purpose PC
The PC software dedicated for
P-Driver allows parameter setting
and operation adjustment.
Brake power supply
24 VDC, 1 A
External (host) controller
P-Driver supports various
controllers of pulse-train output
type.
Regenerative resistance unit
(optional) Caution
z Separate the power supply for
the brake from the power supply
for the I/O signal interface.
