2 external output specifications – IAI America ACON-CG User Manual
Page 61
47
5. I/O Signal Control and Signal Functions
Controller
External power supply
Internal circuit
Each output
Load
Load
Controller
External power supply
Internal circuit
Each output
Load
Load
5.1.2
External Output Specifications
Item Specification
Number of output points
16 points
Rated load voltage
24 VDC
Maximum current
50 mA/point
Residual voltage
2 V or less
Isolation method
Photocoupler

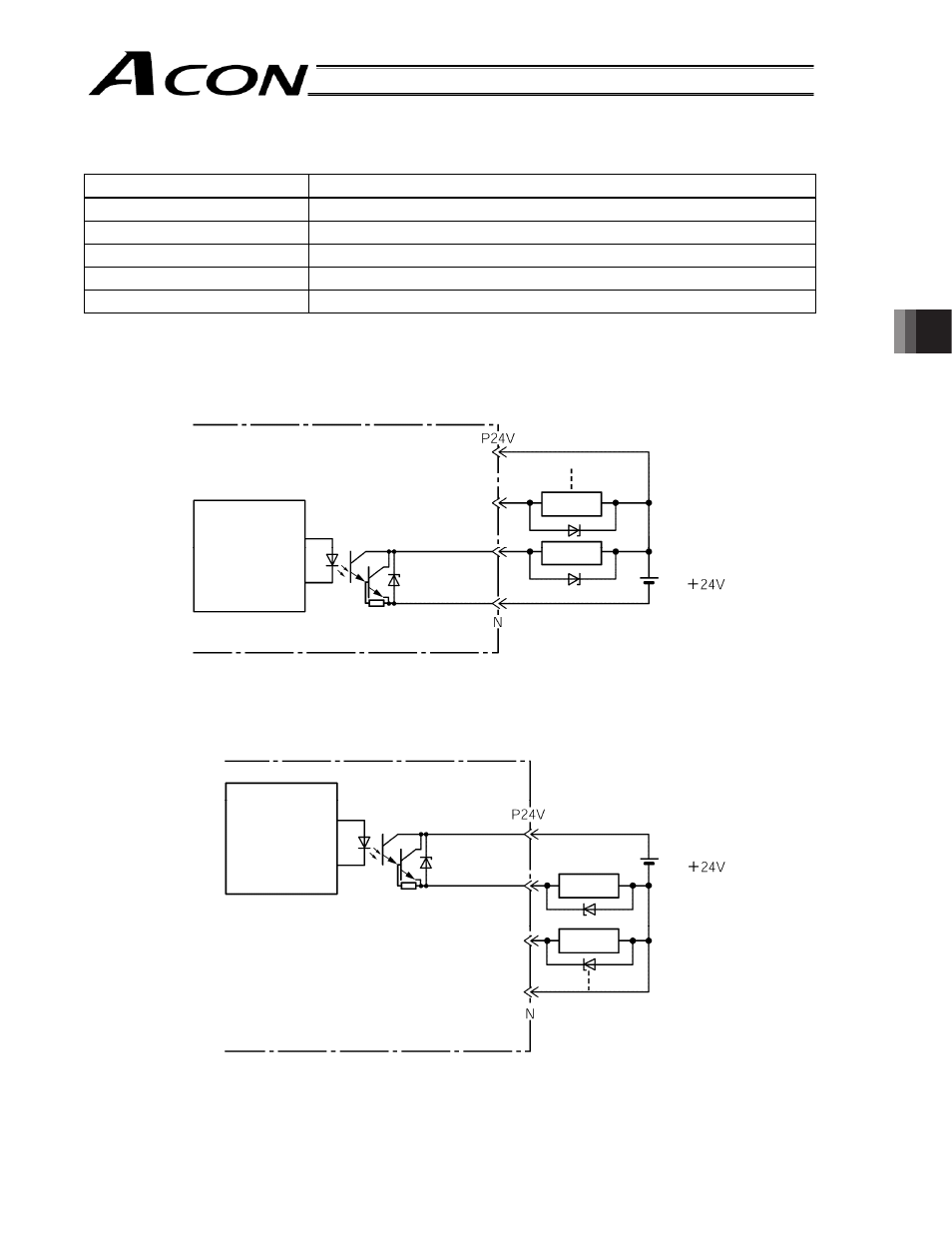

Internal circuit configuration
[NPN specification]
[PNP specification]
