7. Operation
Controller
[5] [2]
[1]
[9]
[8] [3]
[7] [6]
[10] [4]
PIO
Signal name
Start
Command position 1
Command position 32
Completed position 1
Completed position 32
Position complete
Zone
Moving
Category
Input
Output

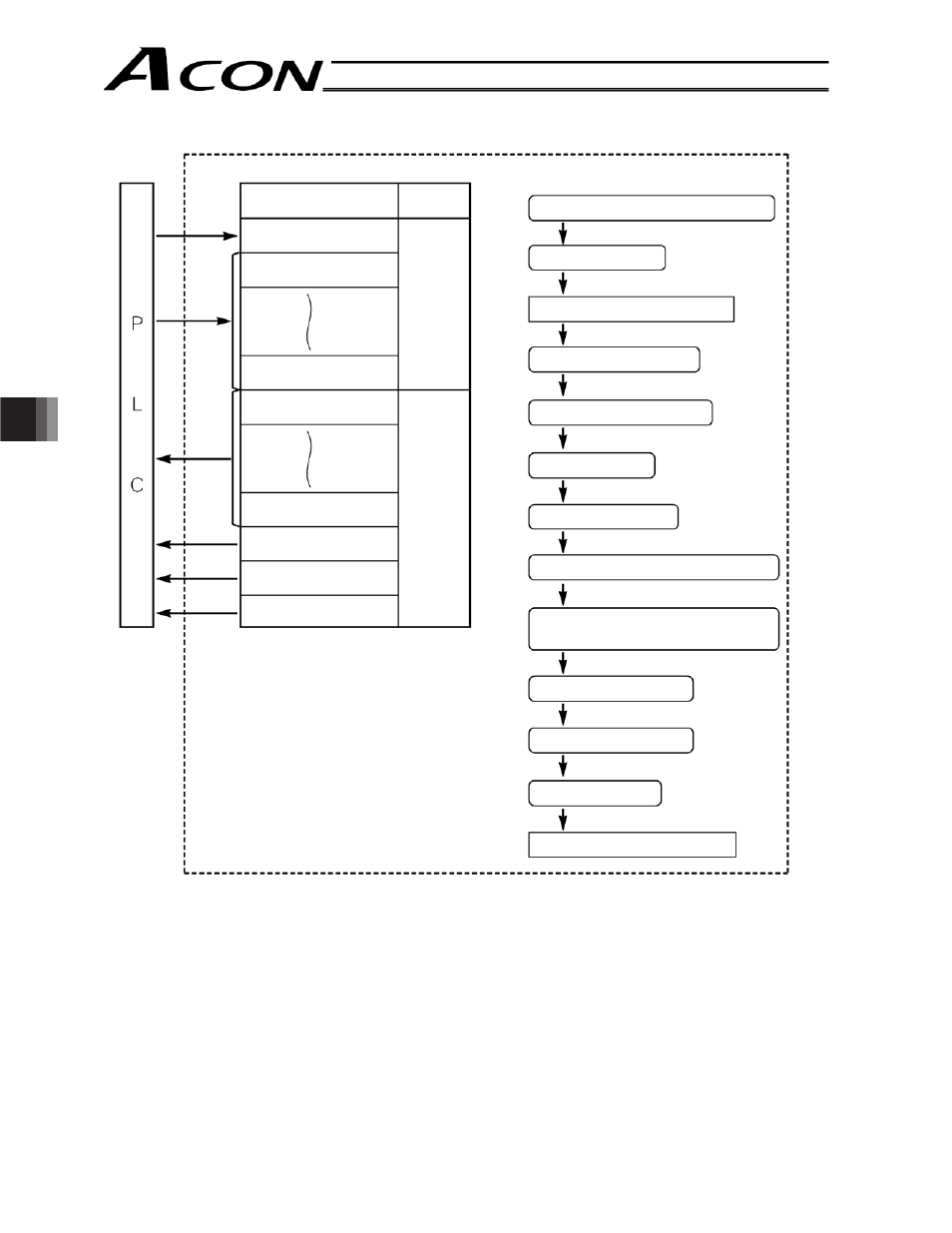

Reference flow
Select/enter a desired command position. [1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
Start input ON
Completed position OFF
Position complete output OFF
Moving output ON
Start input OFF
Moving output OFF
Movement to the selected position
completes.
Position complete output ON
Completed position is output.
Movement to the selected position
starts.
Actuator enters the zone. Zone output ON
Actuator exits the zone. Zone output
OFF
