IAI America CT4 User Manual
Page 62

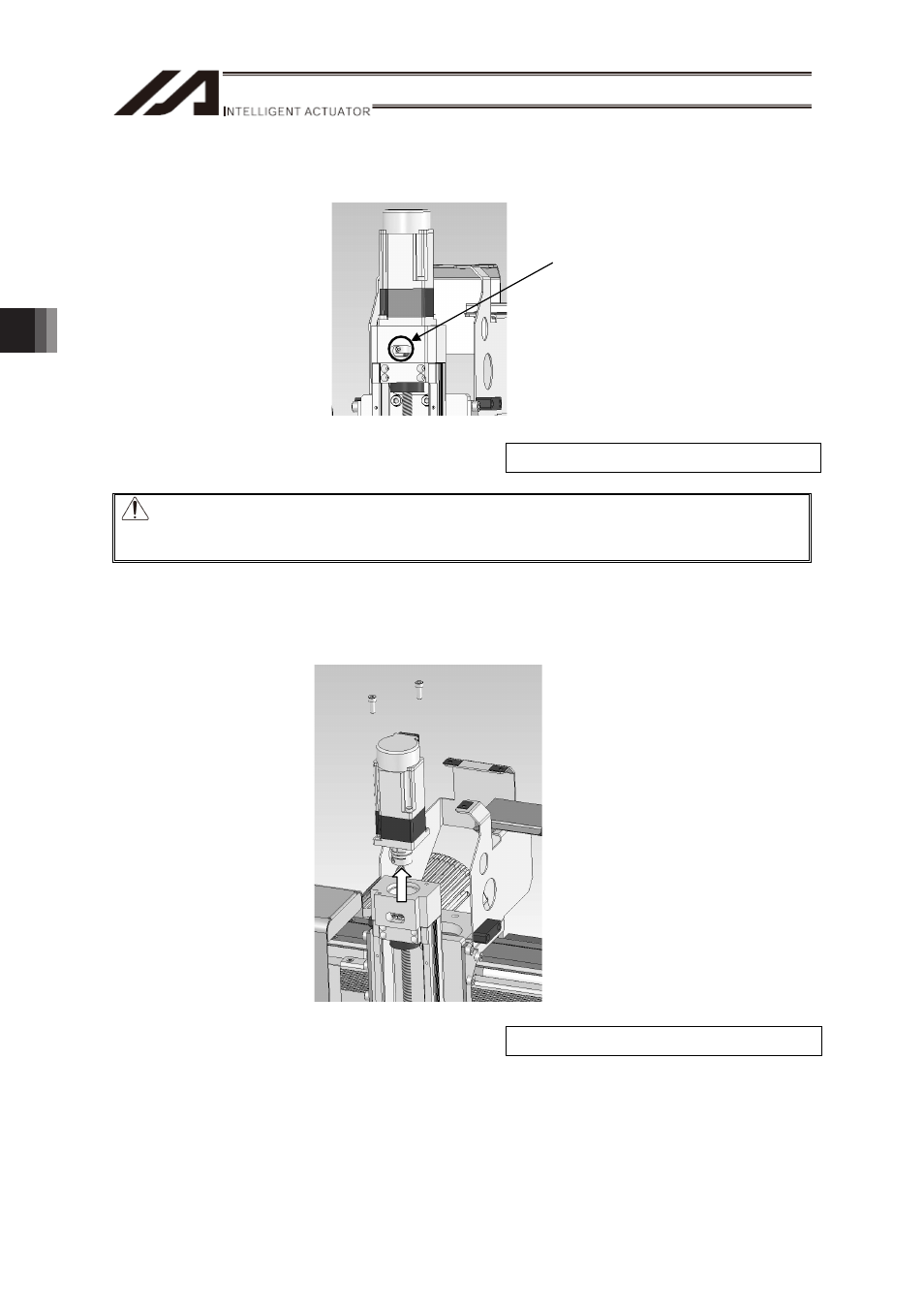

4. Maintenance Inspection
56
3) Move the table to a position where the coupling tightening screw can be seen(at the circled
places). Loosen the coupling screw.
Caution: Be careful of the table dropping down.
Hold the table (and/or work piece) so it would not drop down before loosening the
coupling screw.
4) Remove the motor fixing screws and pull out the motor unit and the coupling from the body.
Tool to use: Hex Wrench 2mm-sized
Tool to use: Hex Wrench 3mm-sized
Coupling
