4. Maintenance Inspection

3) Detach the four screws holding the screw cover (at the points where circled) and remove the

screw cover.

Tool to use: Hex Wrench 2.5mm-sized

4) Check inside.

5) After the work is finished, attach the screw cover and tighten the screws.

Tightening Torque : 83N㨯cm

6) Attach the Z-axis cover

Caution: Be careful in case a hand or a work piece is attached and the Z-axis brake is

released. It may cause an injury or may damage the hand or work piece by

dropping it.

4.5 Internal Cleanup

When cleaning, wipe with a soft cloth to remove dust and dirt.

Do not blow compressed air so dust would not get in from gaps.

Do not use oil type solvent, neutral detergent or alcohol.

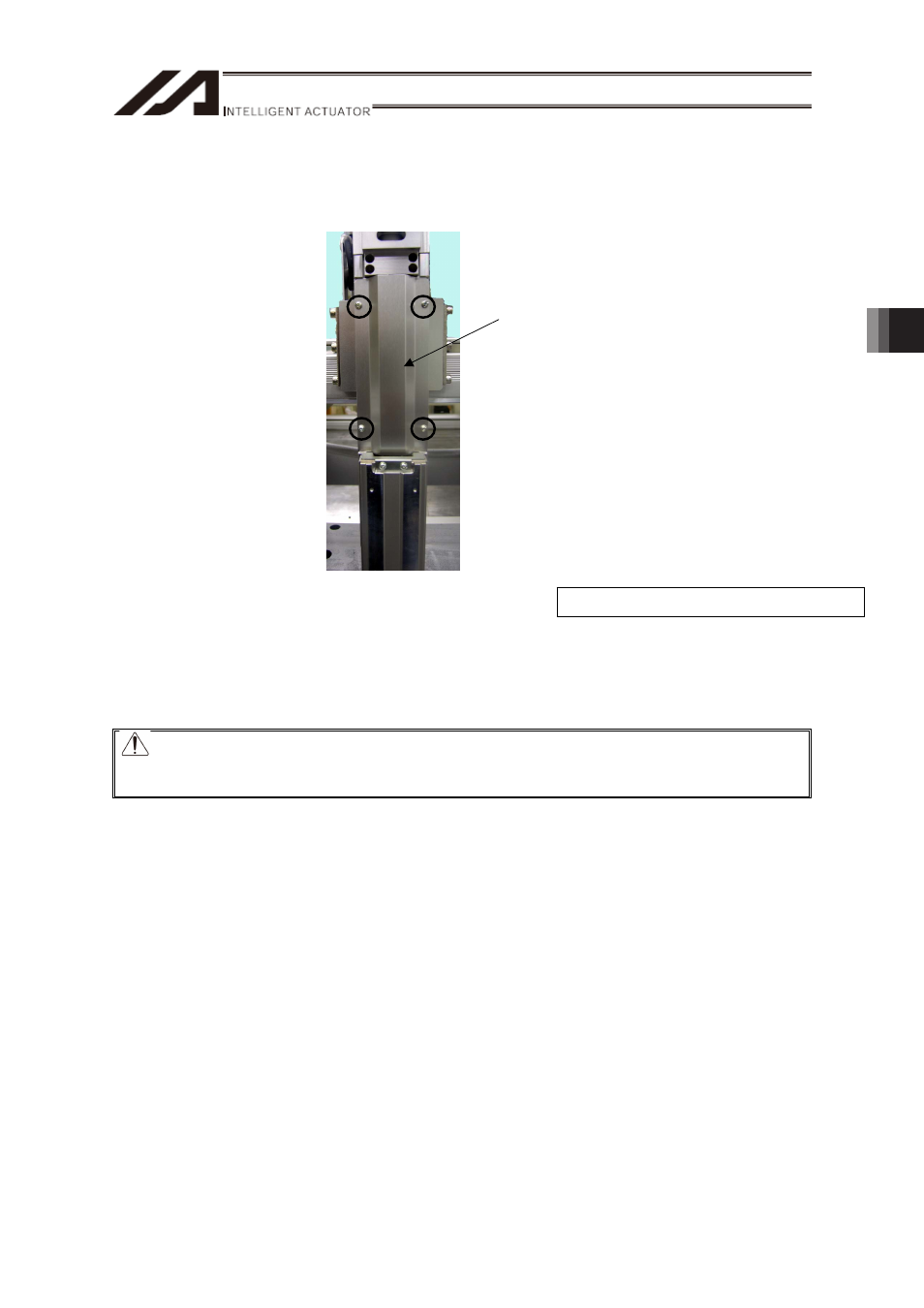

Screw Cover
