4. Maintenance Inspection

40

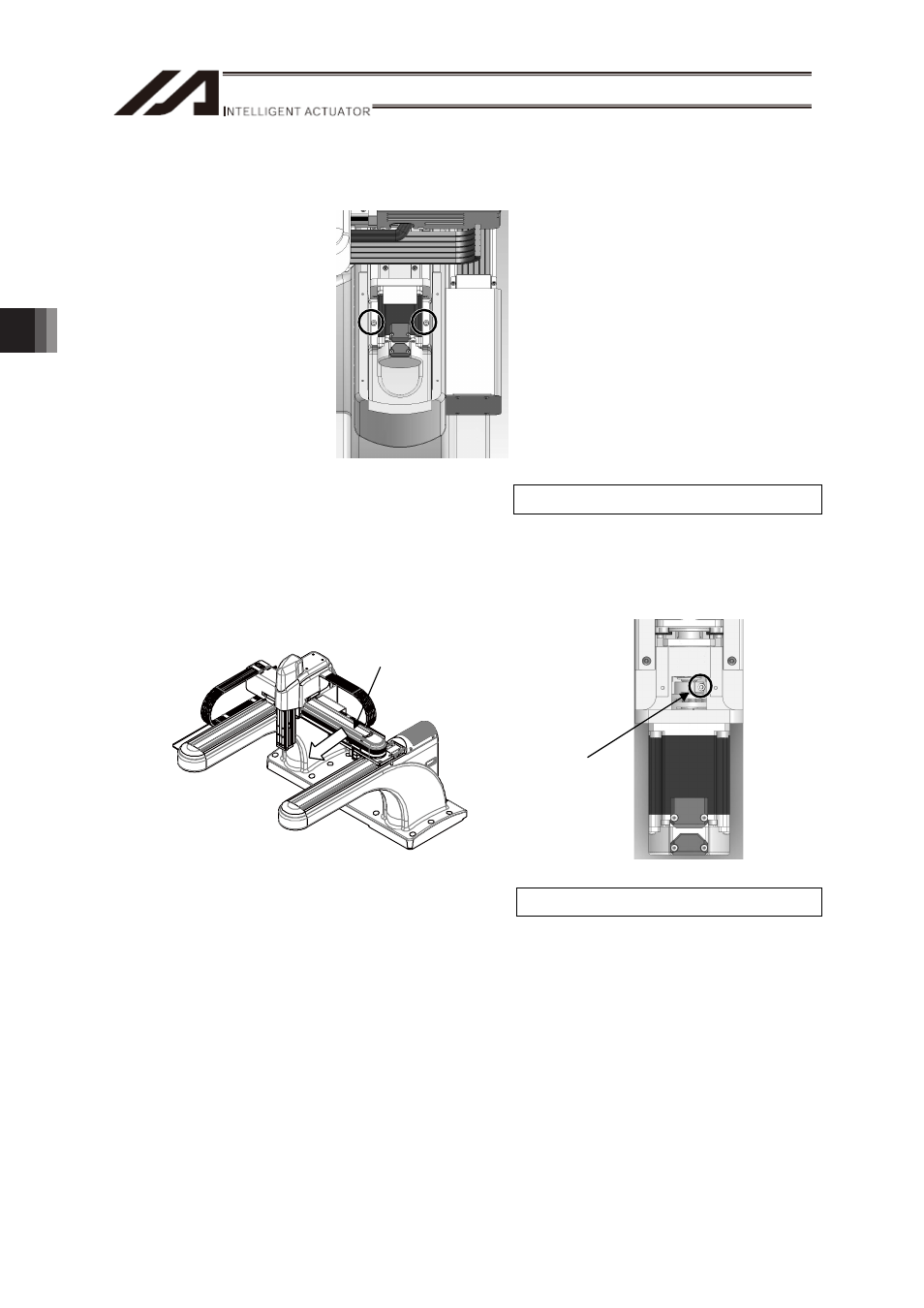

3) Detach the two screws (at the points where circled) holding the plate of the heat radiation

sheet at the bottom of the motor.












Tool to use: Hex Wrench 3mm-sized

4) Turn OFF the controller and move the Y-axis to the direction shown with an arrow below

so you can see the coupling tightening screws (at the points where circled).Loosen the

coupling screw with the hex wrench.














Tool to use: Hex Wrench 2.5mm-sized




Y-axis

Coupling
