IAI America CT4 User Manual
Page 60
4. Maintenance Inspection
54
4.7.3
Process to Replace the Motor for the Z-Axis
[Items Required for Replacement Work]
x
Motor Unit for Replacement Model No.
: M-CGZ-TMA050-TA-B-CQ
x
Cable Band
x
Hex Wrench: 2mm, 2.5mm and 3mm-sized
[Procedure]

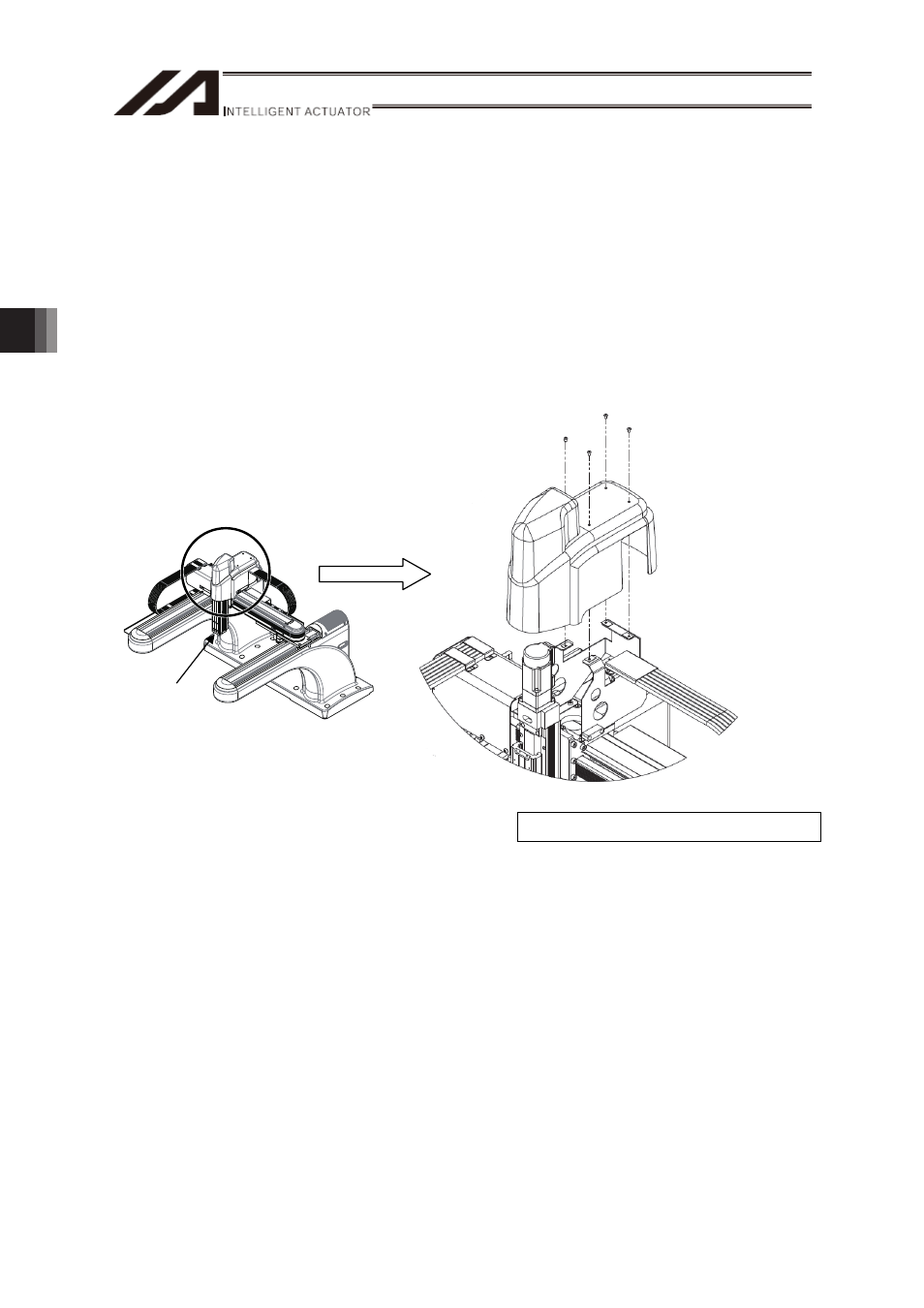

(1) Detaching the Z-axis Cover
Turn OFF the controller. X1-axis, X2-axis and Y-axis can be at any position.
Remove the four screws holding the Z-axis cover.
Z-axis
Tool to use: Hex Wrench 2.5mm-sized
