IAI America CT4 User Manual
Page 61
4. Maintenance Inspection
55

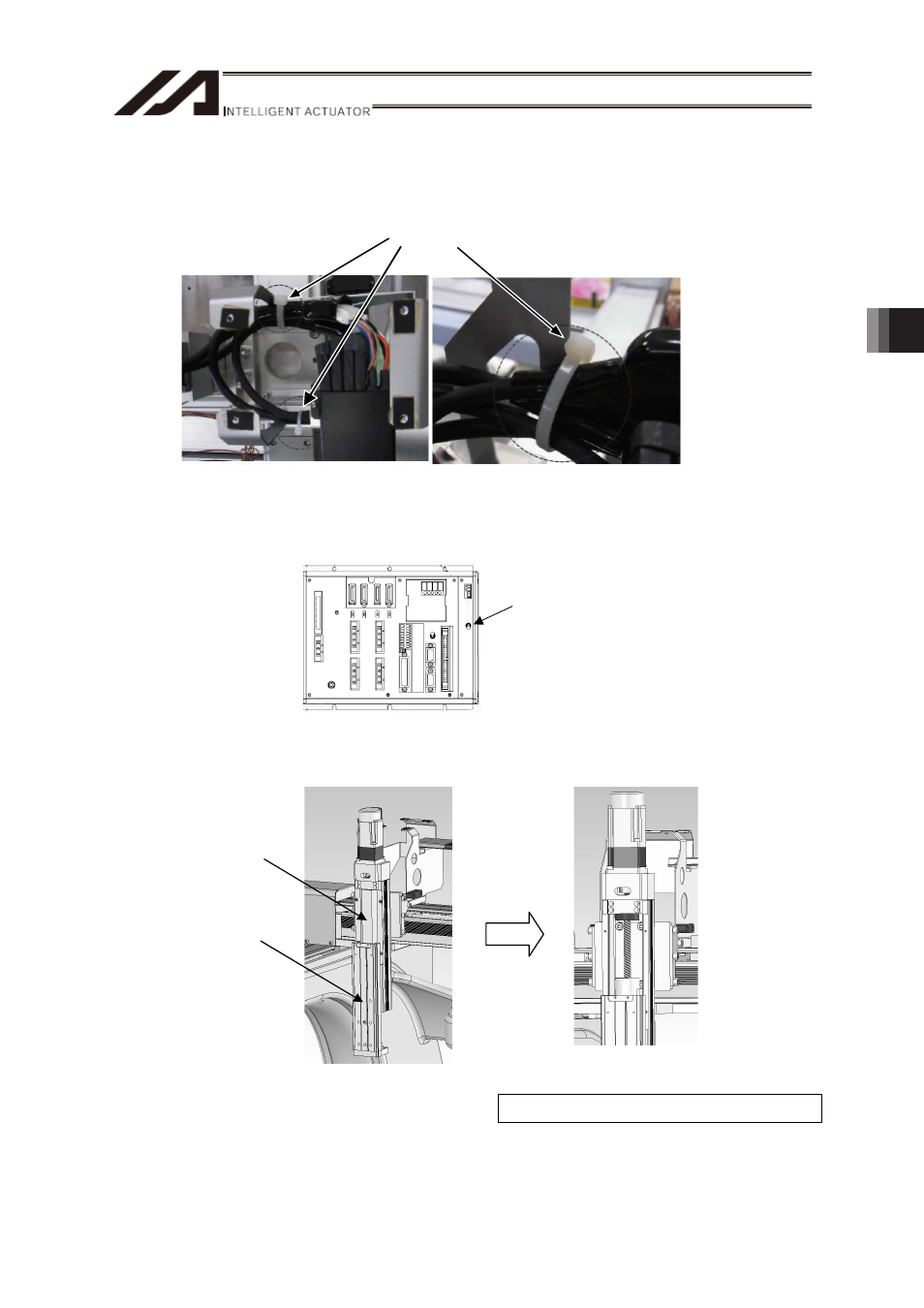

(2) Detaching the Motor
1) Cut and remove the cable band clamping the cables. Disconnect the motor cable connector
from the ribbon cable.
2) Turn ON the controller, put the brake switch up (to RLS side) to release the brake and move
down the table.
Detach the screws holding the screw cover and remove the screw cover.
Tool to use: Hex Wrench 2.5mm-sized
Cable Band
Brake Switch
Screw Cover
Table
