IAI America RCAW User Manual
Page 87
4. Maintenance
81
4.7 Replacing the Bellows of the RCAW Dustproof/Splash-proof Type
[Items Required for Replacement]
y
Replacement bellows unit
: RA3 ······ JB-RA3- (stroke)
: RA4 ······ JB-RA4- (stroke)
y
Phillips screwdriver
y
Torque driver
y
Grease
Kyodo Yushi
Multemp LRL3
[Procedure]

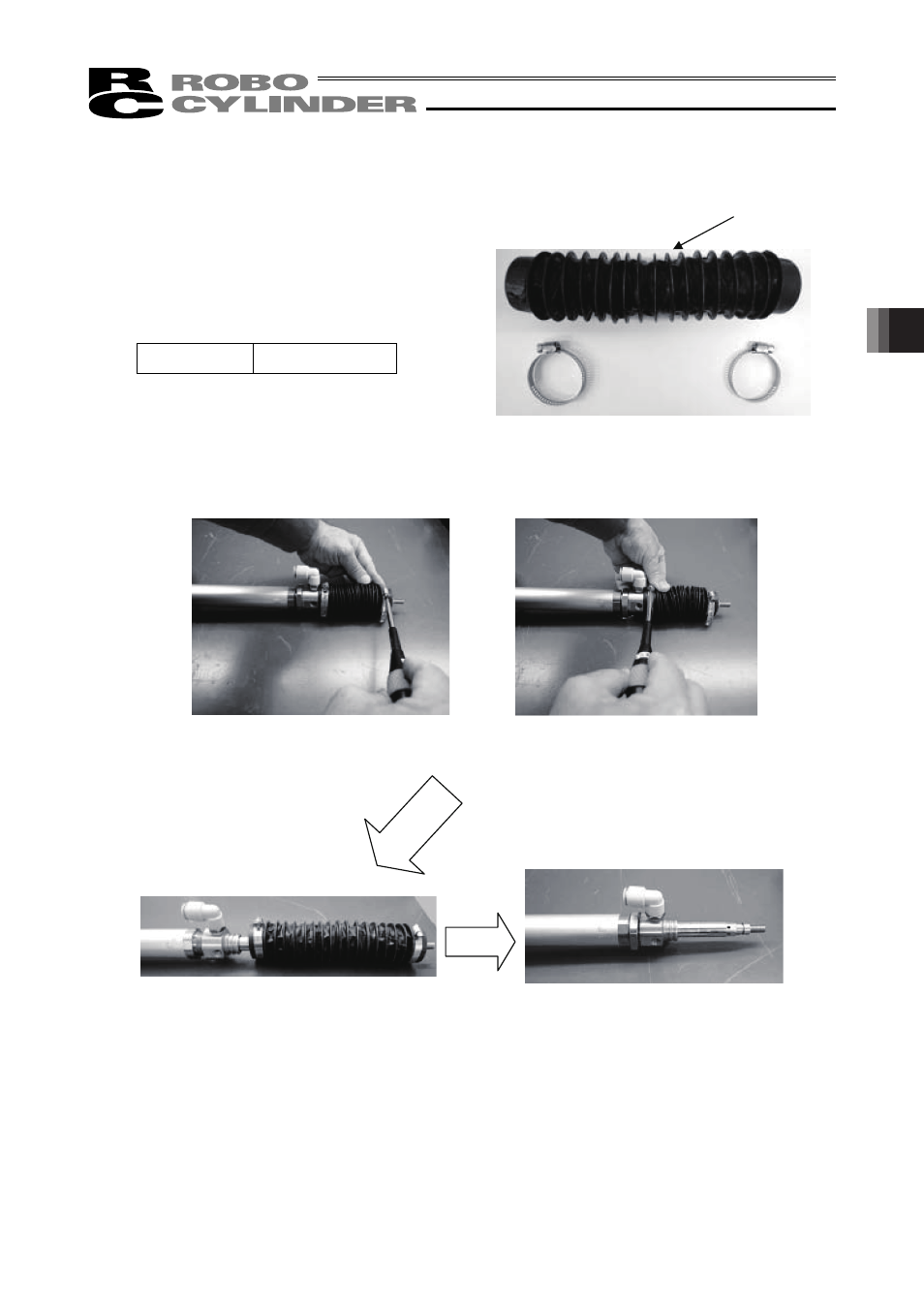

1) Loosen the front and rear metal fittings affixing the bellows and remove the bellows.
Bellows
Loosening of front metal fitting
Loosening of rear metal fitting
Removal of bellows
Bellows has been removed
