2. Installation
54

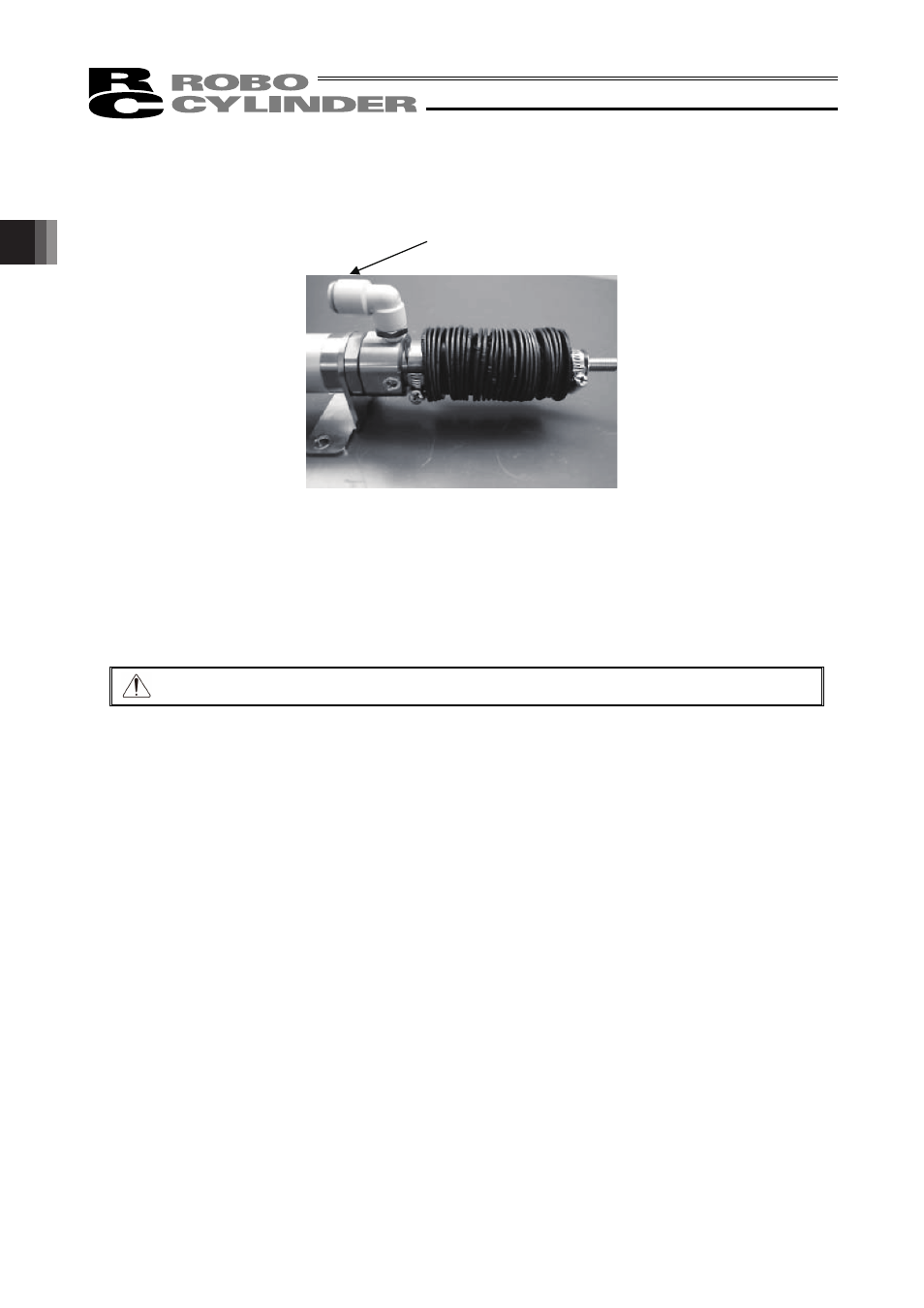

2.3.3 Connecting the Air Tube of the RCAW Dustproof/Splash-proof Type
Intake/exhaust port
Install the air tube (outer diameter: 10 mm, inner diameter: 6.5 mm) on the intake/exhaust port and guide the
air tube to a location where the external environment assures the tube will not come in contact with water.
(Applicable tube)
Shown below is a representative model of air tube that can be installed on the RCAW:
•
TU1065: Polyurethane tube (Manufacturer: SMC)
Caution: The air tube should not be more than 3 m long.
