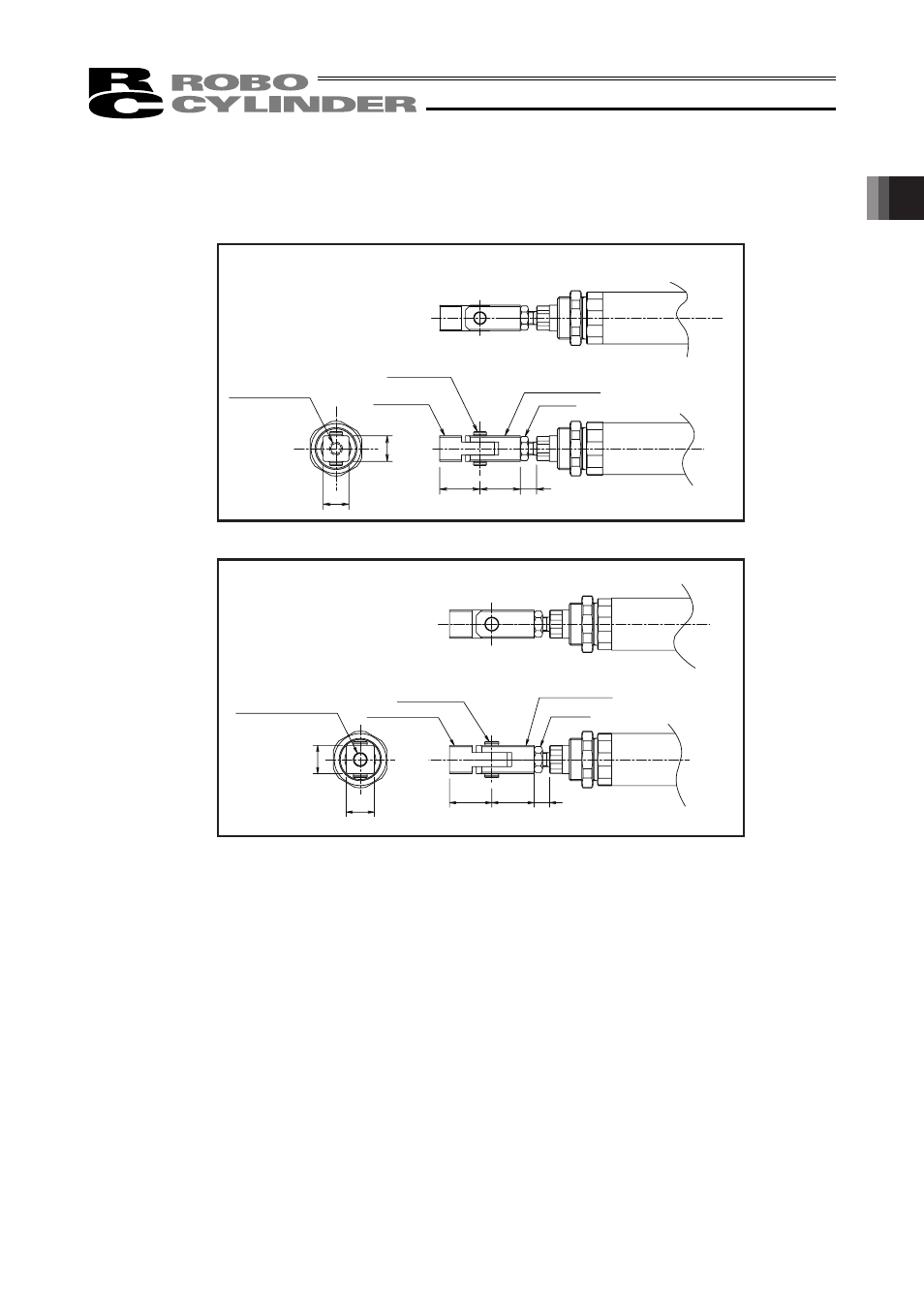

1.3.11 Knuckle Joint (Model No. : NJ)
This metal part is used to give some degree of freedom (rotation) in the movement at the rod end of the
actuator when Clevis or trunnion part is used.
16
25
25 10
16
Joint Pin
Joint S
Joint W
Nut
M8×1.25 Depth 11
For RCA-RA3□
Model code of single product RCA-NJ-RA3
20
30
30 11
20
Joint Pin
Joint S
Joint W
Nut
M10×1.25 Depth 13
For RCA-RA4□
Model code of single product
RCA-NJ-RA4
