1. Specifications Check
23

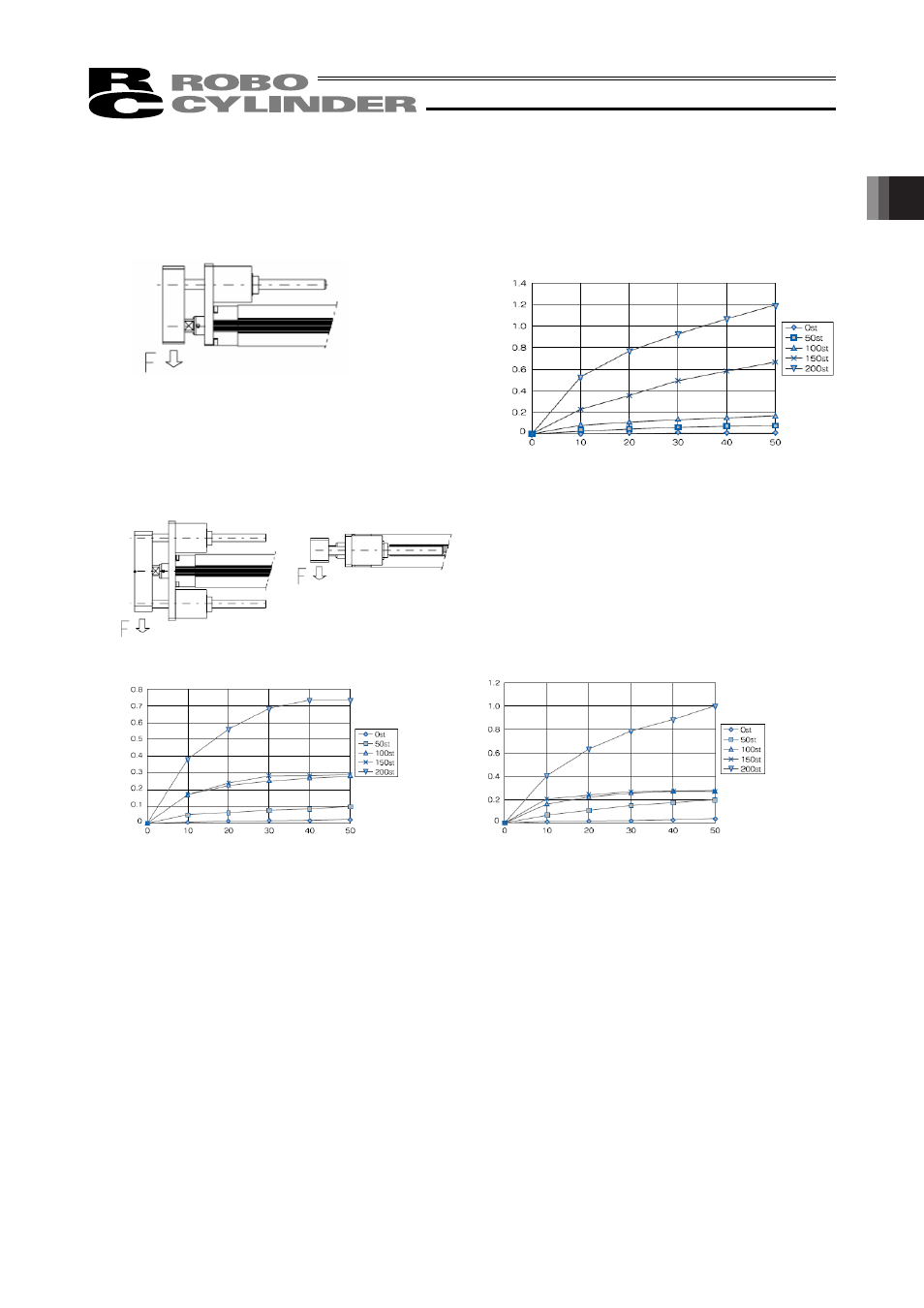

1.2.8 Radial load and Tip Flexure
Shown below is the correlation graph of the load applied to the guide tip and the flexure at that time.
(1) Single guide
* Single guide type is not capable
for any load except for those
from the top and bottom.
(2) Double guide
Double guide type Double guide type
Fl
ex
ur
e
(m
m
)
Load (N)
Fl
ex
ur
e
(m
m
)
Load (N)
Fl
ex
ur
e
(m
m
)
Load (N)
