2. Installation
53

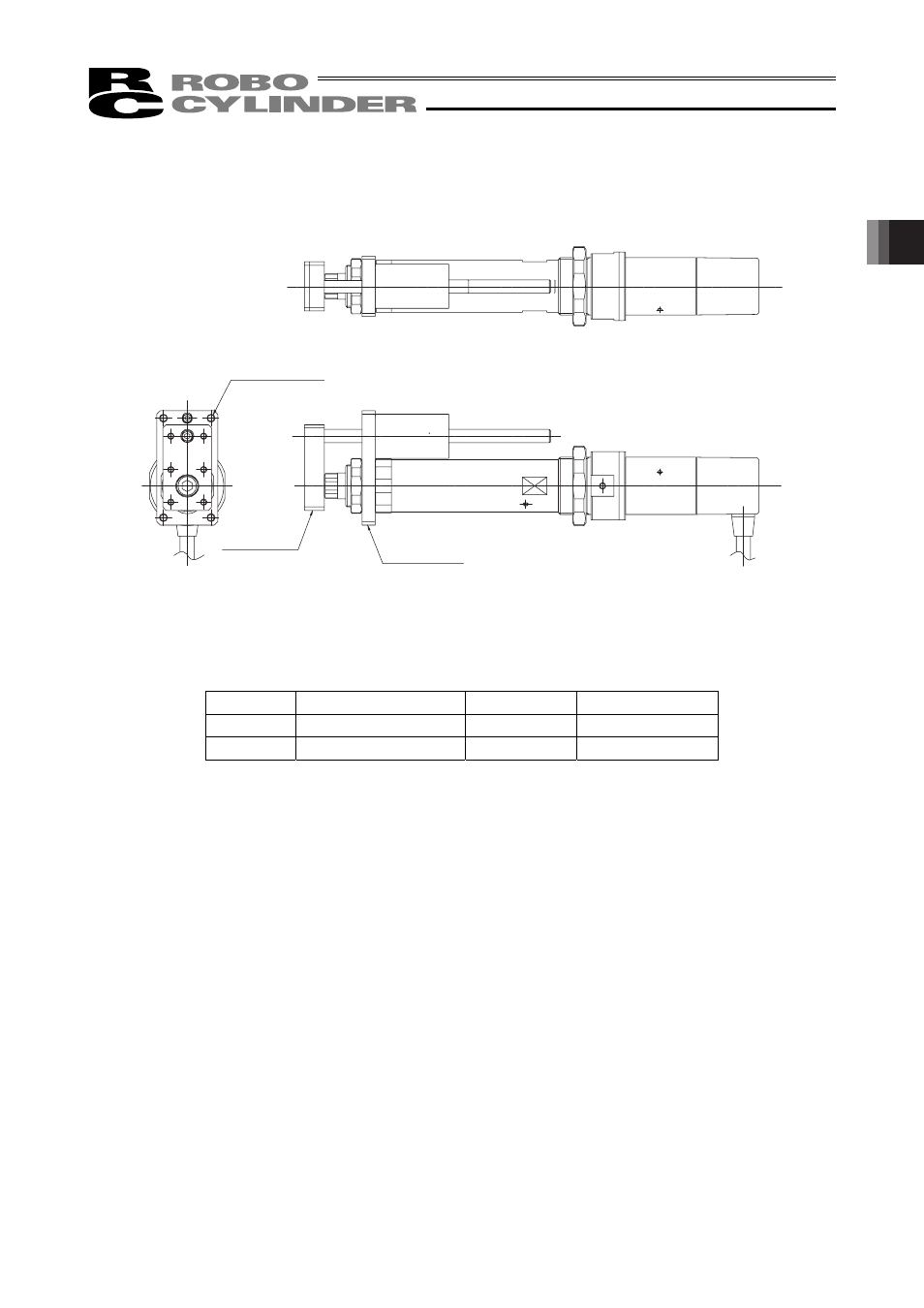

(8) Single-guide type
Use the tapped holes in the bracket for installing an actuator of the single-guide type.
z Applicable models: Double-guide type RGD3, RGD4
Type Tapped hole diameter Tapped depth Tightening torque
RA3 type M5 8 mm 3.4 N•m
RA4 type M5 8 mm 3.4 N•m
Tapped mounting hole
Bracket A
Bracket B
