3/4"(19MM) SOCKET
1/2" DRILL
TORQUE WRENCH
SAFETY GLASSES
INSTALLATION E
TOOLS REQUIRED
NOTE:

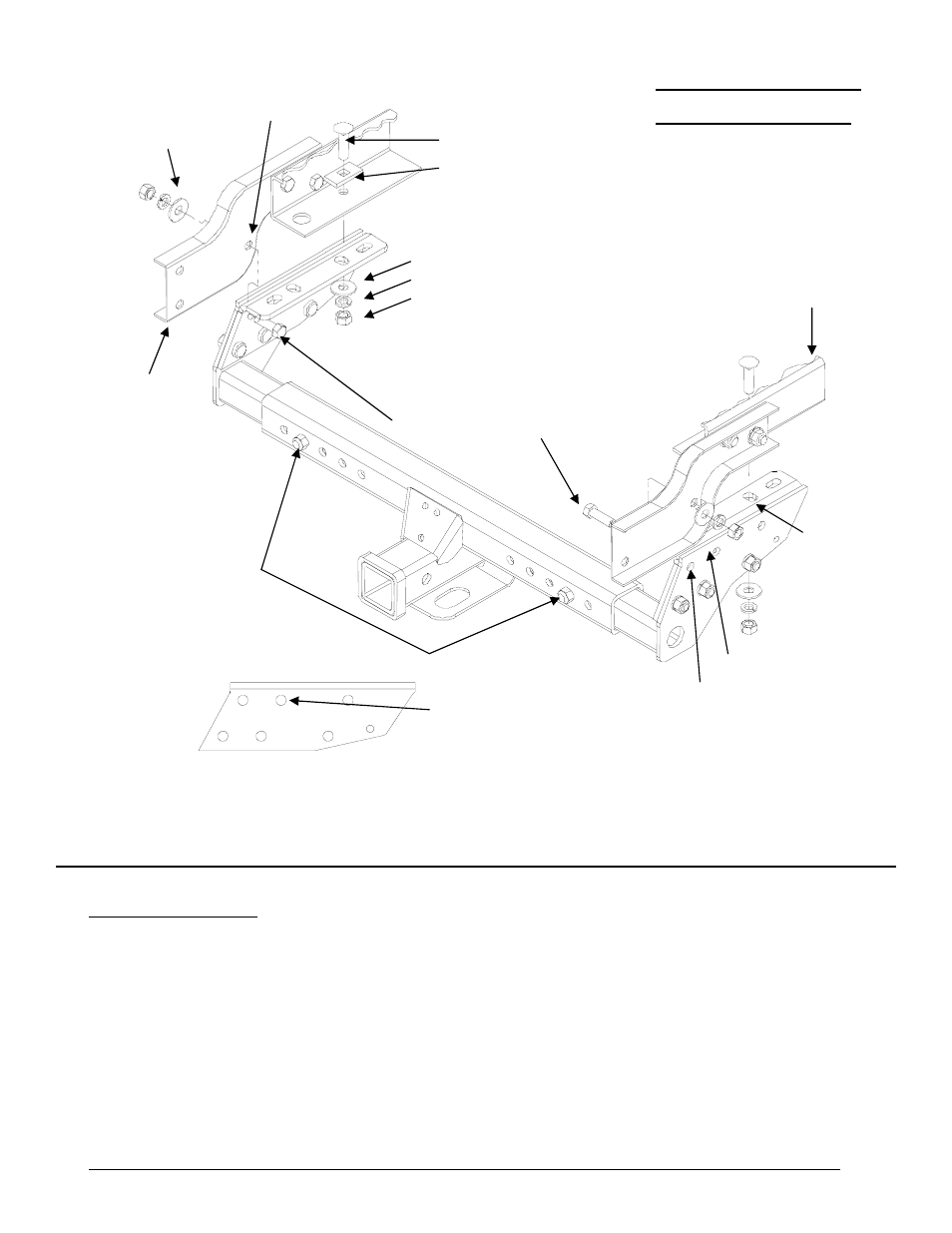

General assembly - loosely assemble center section (page 1); loosely install side brackets on vehicle (this page);
install center section assembly (page 2-3); tighten all fasteners to proper specifications (page 1)
1/2” FLAT WASHER
1/2” LOCK WASHER
1/2” HEX NUT
USE THIS HOLE
FOR CENTER
SECTION ASSEMBLY
BUMPER
BRACKET
DRILLED HOLE
VEHICLE
FRAME
1/4” BOLT PLATE
1/2 X 2” CARRIAGE BOLT
12mm X 1.75 X 40mm
HEX BOLT
HOLE #3
USE THIS HOLE
AS A GUIDE TO
DRILL FOR
MAZDA PICK-UPS
HOLE #6
HOLE #5
1/2” FLAT WASHER
1/2” LOCK WASHER
12MM HEX NUT
90-93 MAZDA PICK-UP
1. Raise the brackets up to the frame with the bracket as far forward toward the front of the truck as possible. Do
not let the bracket rest upon the weld in the frame. Clamp in place.
2. Drill a 1/2" hole into the frame using hole 3 as a guide. Thread a 1/2" carriage bolt onto the pull wire and place a
bolt plate over the bolt. Push the free end of the pull wire into the open end of the frame and bring it out through
hole 3. Pull the bolt down through hole 3. Unscrew the wire.
3. Make sure hitch is level. Drill a 1/2" hole through the bumper bracket using hole 6 as a guide.
4. Install center section per SIDE BRACKET LOCATION 1. (See page 2.)
5. Insert a 12mm bolt from the outside, into hole. Install 1/2" flat washers, lock washers, and nuts on all bolts.
REFER TO SIDE BRACKET LOCATION INSTRUCTIONS FOR PROPER BOLT TIGHTENING SEQUENCE
