Ransburg Evolver 303 Solvent Applicator A11976-XXX - Manual (Page 78)

79151-00 Needle Shaft 1
7723-06 Piston, U-Cup 1
79001-28 O-Ring, Solvent Proof 1
79001-29 O-Ring, Solvent Proof 1
13076-13 O-Ring, PTFE 1
RME-38 Spring 1
RME-32 Seal 1
79001-01 O-Ring, Solvent Proof 4
79001-04 O-Ring, Solvent Proof 1
79001-06 O-Ring, Solvent Proof 3
79001-05 O-Ring, Solvent Proof 1
A10411 SPRAY HEAD
REPAIR KIT
Part # Description Qty

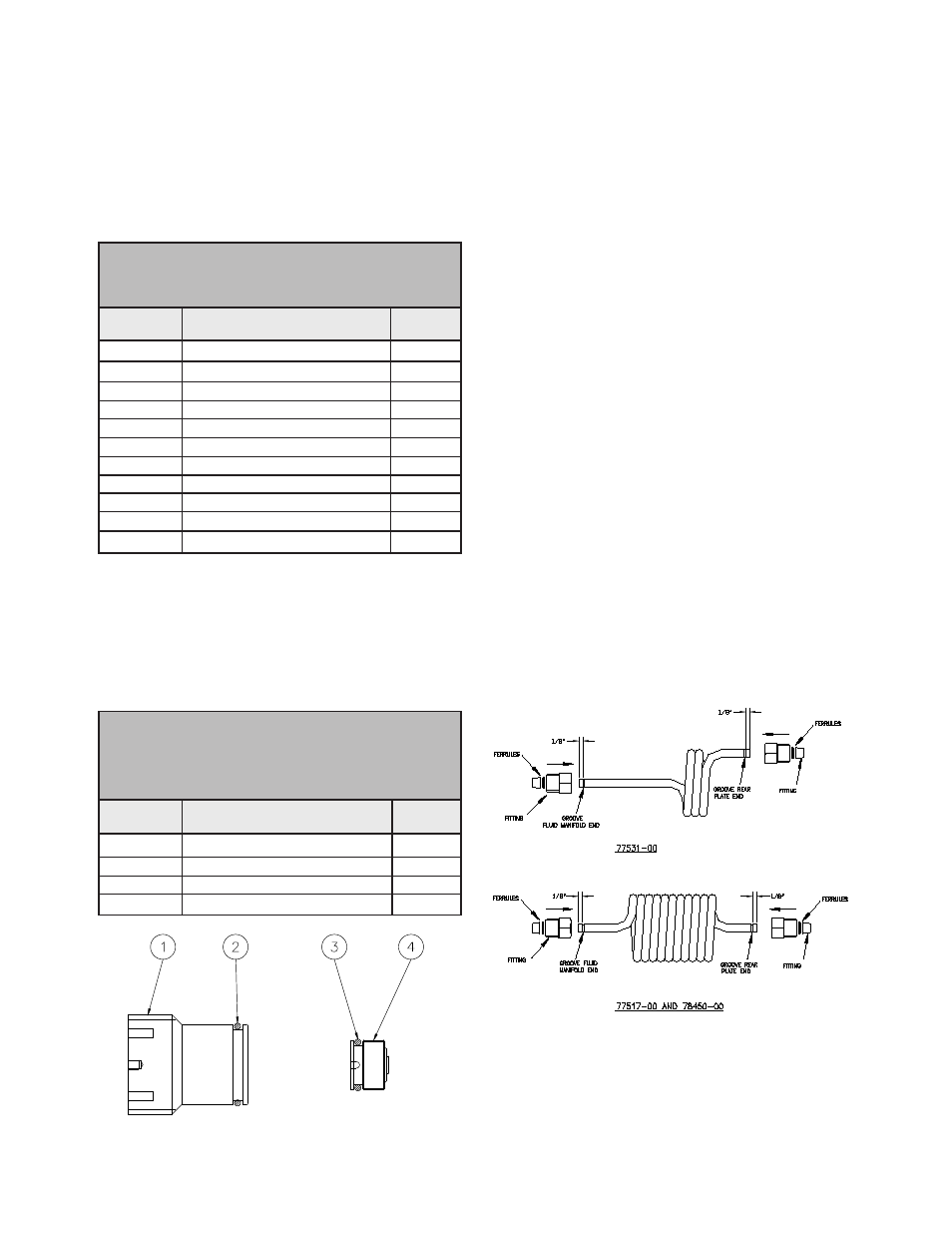

Figure 33: 77620-00 Valve Plug Assembly
Fluid Coils (Separate Sales Parts
Only)
If purchasing spare parts, they must be modified
as explained.
To ensure proper sealing and holding, the fittings
require that the ends of the PTFE fluid coils have
a groove cut into them as shown (see Figure 34).
Use groove cutter A11567-00 by sliding the end
of the tool over the PTFE tubing until it bottoms
out. Hold the tubing in one hand and the tool in
the other. Make three complete revolutions of the
tool, on the tubing, in the direction of the arrow
stamped on the tool. To remove the tool, hold the
tube and the main body of the tool with one hand,
slide the rear portion of the tool back until it stops.
Pull out the tubing from the end of the tool. By
pulling back the rear portion of the tool, it relieves
the pressure of the cutting edge off of the tubing
before sliding it out. Trim off ends to dimensions
shown. End should be cut off square. Slide the
fitting and ferrules onto the tube as shown. The
tapered ferrule must go past the newly cut groove
to properly lock into place when installed.
Tighten nuts into manifolds by hand until it stops.
Using a 9/16" end-wrench, tighten 1/4-1/2 turn.
Figure 34: Fluid Coils
79244-00 Plug 1
77618-00 Plug Seat 1
79001-19 O-Ring, Solvent Proof 1
79001-14 O-Ring, Solvent Proof 1
77620-00 VALVE PLUG KIT
(Optional - Use In Place Of
Valve & Seat)
Part # Description Qty
A10411-00 Spray Head Repair Kit
Available for purchase as a kit for the common
spray head parts that require replacement. This
kit contains parts for one applicator head.
77620-00 Valve Plug Kit
Available for purchase is a Valve Plug Kit than can
be used in place of valves and seats to convert
the applicator to a single purge applicator.
