Ransburg Evolver 303 Solvent Applicator A11976-XXX - Manual (Page 34)

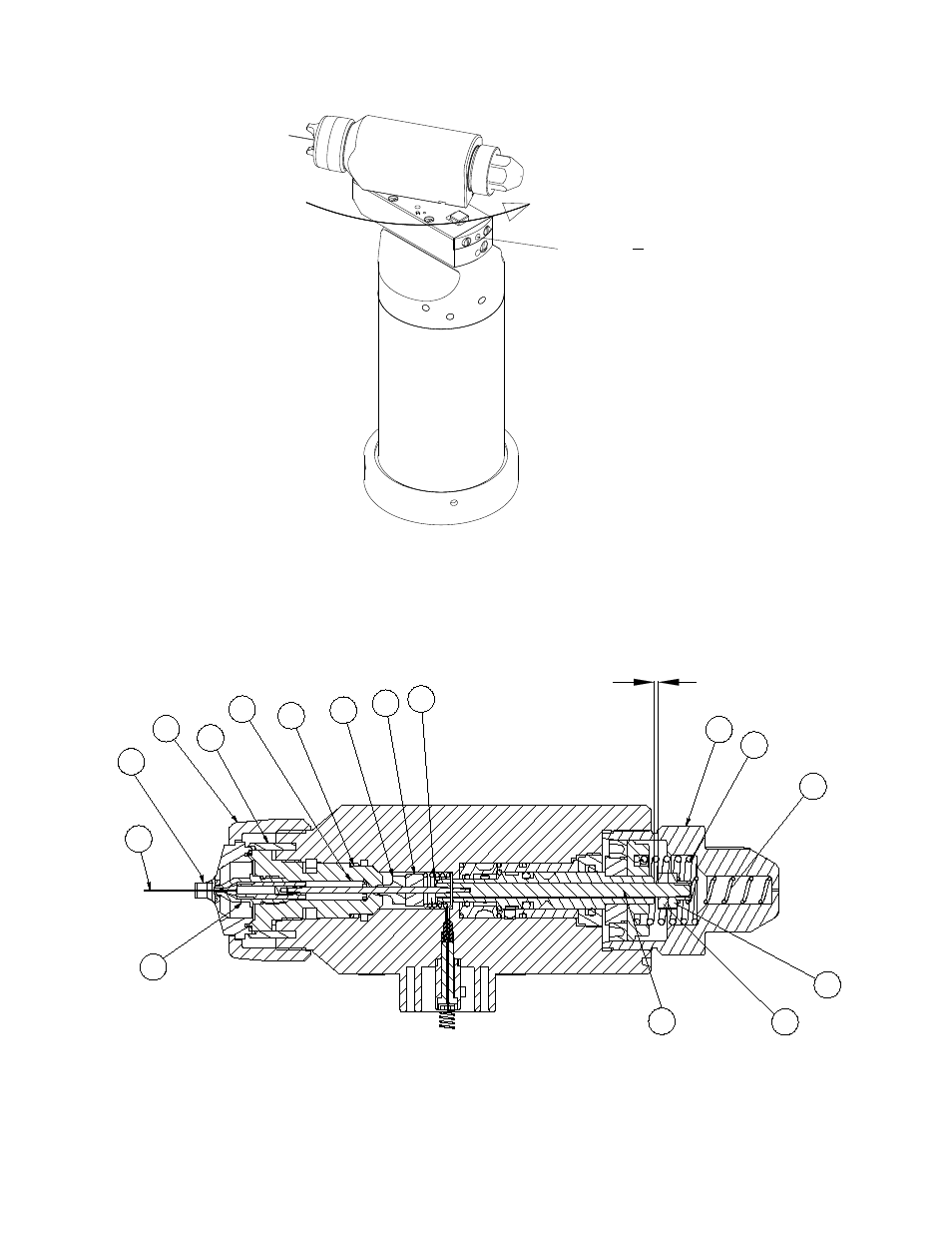

Figure 10b: Spray Head Assembly
Figure 10a: Spray Head Removal
ROTATE HEAD APPROX.
45° CCW TO REMOVE
INSERT A 3
16
" ALLEN WRENCH
THROUGH THE HOLE TO LOOSEN
THE LOCKING SCREW (3), TURN
THE SCREW CLOCKWISE, WHICH IN
TURN WILL DISENGAGE THE
LOCKING TAB (2), TURN UNTIL THE
TAB COMES IN CONTACT WITH THE
INSIDE WALL. AS ILLUSTRATED IN
FIGS. 24 THRU 27.
THEN ROTATE THE HEAD AS
SHOWN BY HAND AND PULL UP TO
REMOVE.
4
5
1/16" (1.59 MM)
34
31
35
29
36
33
32
30
28
27
6
2
3
1
31
Evolver 303 Robotic Atomizers - Maintenance
Ransburg
AA-07-03.2
