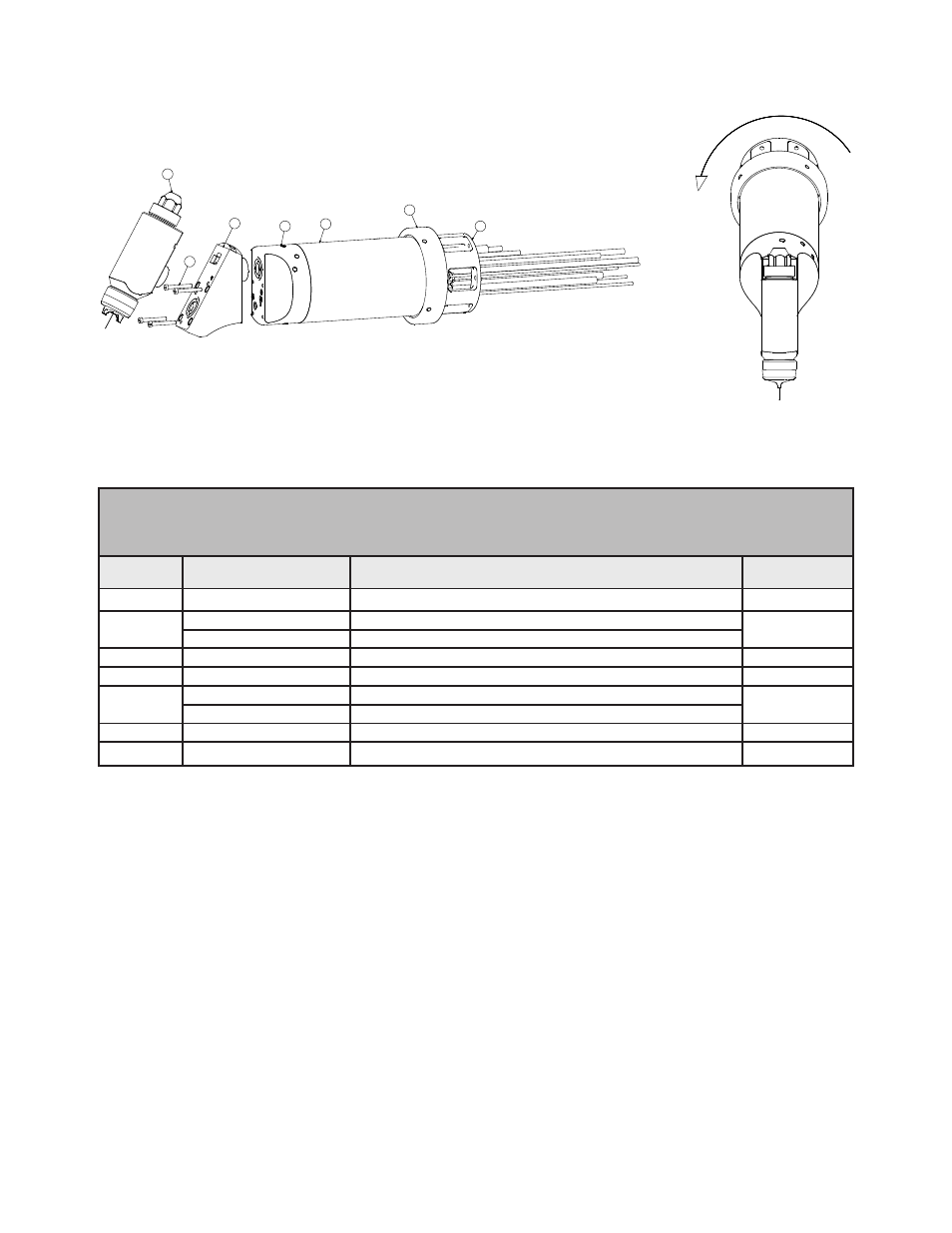

Figure 12: Evolver 303 60° Single Head Applicator Assembly

1

A11255-00

Shroud, RMA-303

1

2

A11061-XXXXXXX

Assembly, Robot Mount Tubing Bundle (Metric)

1

A12000-XXXXXXX

Assembly, Robot Mount Tubing Bundle (English)

3

79179-00

Mounting, Block Assembly

1

4

A11983-00

Manifold, Evolver 303 Assembly

1

5

79138-01

Spray Head Assembly, Conventional Spray

1

79138-02

Spray Head Assembly, HVLP Spray

6

A11201-00

Ring, Quick Disconnect

2

7

LSFA00027-00

Screw, Retaining, #10-32 X 1.50"

4

Item #

EVOLVER 303 60° SINGLE HEAD APPLICATOR ASSEMBLY -

PARTS LIST (Figure 12)

Part #

Description

Qty

5

3

4

1

6

2

7

CCW TO REMOVE

39

Evolver 303 Robotic Atomizers - Maintenance

Ransburg

AA-07-03.2
