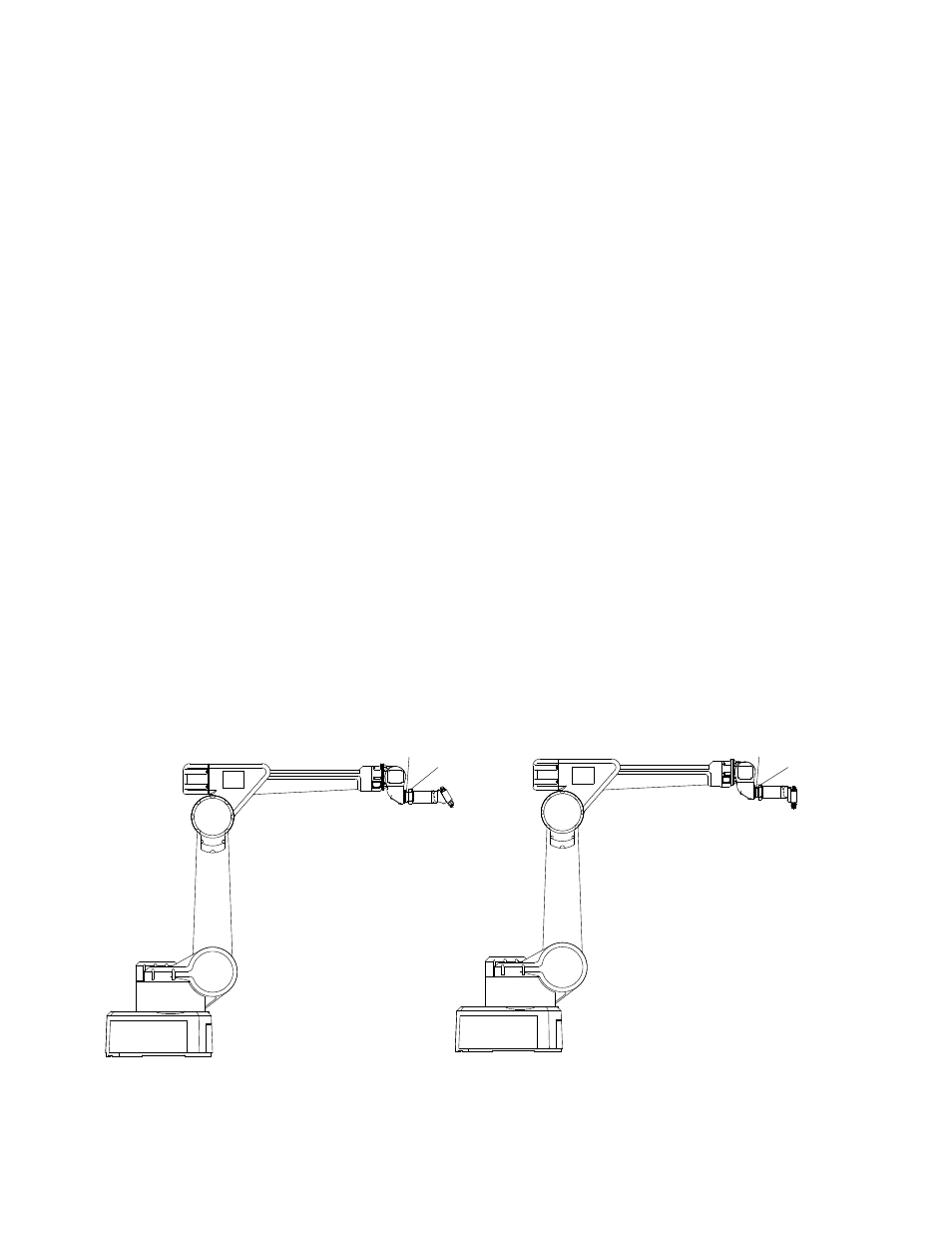

Figure 2: Typical Robotic Applicator Mounting

FEATURES

The features of the Evolver 303 Series Applicators

include:

! Quick disconnect spray head

! High quality Ransburg air cap and fluid

nozzle

! Various adapter plates available to match

most robotic mounting configurations

! No external high voltage Cable. The intern-

ally mounted high voltage cascade requires

only low voltage control wiring

! Less waste to the spray booth with the dump

valve located internally next to the feed tube

! Assembly components made of durable

engineered resin material for optimum

mechanical strength and solvent resistance

! Heavy duty design ensures excellent service

life even when subjected to the quick motions

of robotic applicators

! Small, light weight package allows for better

maneuverability in tight areas

! Negligible maintenance down time with the

quick disconnect feature. An atomizer can

be exchanged in less than two minutes for

off-line maintenance

! Field proven high voltage system

! Dual start, dual pitch air cap retaining ring

! Quick color change capability

! Clean interior design with slip-on shroud

! Internal fan and atomization air control valve,

with a mechanically timed trigger sequence

! Color coded air and trigger actuation lines

! Quick Change to a RMA-303 bell applicator

ROBOT MANIFOLD

QUICK DISCONNECT

RING

ROBOT SPACER PLATE

A11976-0XX

60° SINGLE HEAD

MOUNTED ON ROBOT

ROBOT MANIFOLD QUICK

DISCONNECT RING

ROBOT SPACER PLATE

A11976-1XX

90° SINGLE HEAD

MOUNTED ON ROBOT

13

Evolver 303 Robotic Atomizers - Introduction

Ransburg

AA-07-03.2
