TUBING BUNDLE

INSTALLATION

Typically, the tubing bundle is pulled through the

robot arm from the robot wrist side. Keep the

bundle taped except for the portion of the bundle

that will be inside the arm. Pull the tubing through

the wrist and arm, leaving about 250mm (10") of

tubing sticking out of the front of the wrist plate

(see Figure 8).

Fasten the cable bundle in the robot at the rear

exit of the arm. Push the robot spacer plate and

applicator mounting plate to the robot wrist plate

aligning the top dead center marks of the spacer

plate and robot wrist plate. Fasten using appro-

priate screws. Installing the tubing bundle in this

fashion will increase tubing bundle life significantly.

BUNDLE LUBRICATION

When the tubing bundle is installed, it should be

lubricated with a generous amount of lubricant to

increase the service life of the tubes. A recom-

mended lubricant is Shell Alvania EP #02. There

are other lubricants that are available for use.

Prior to using a lubricant, ensure it is silicone free,

resists heat breakdown, and is compatible with

the materials being applied.

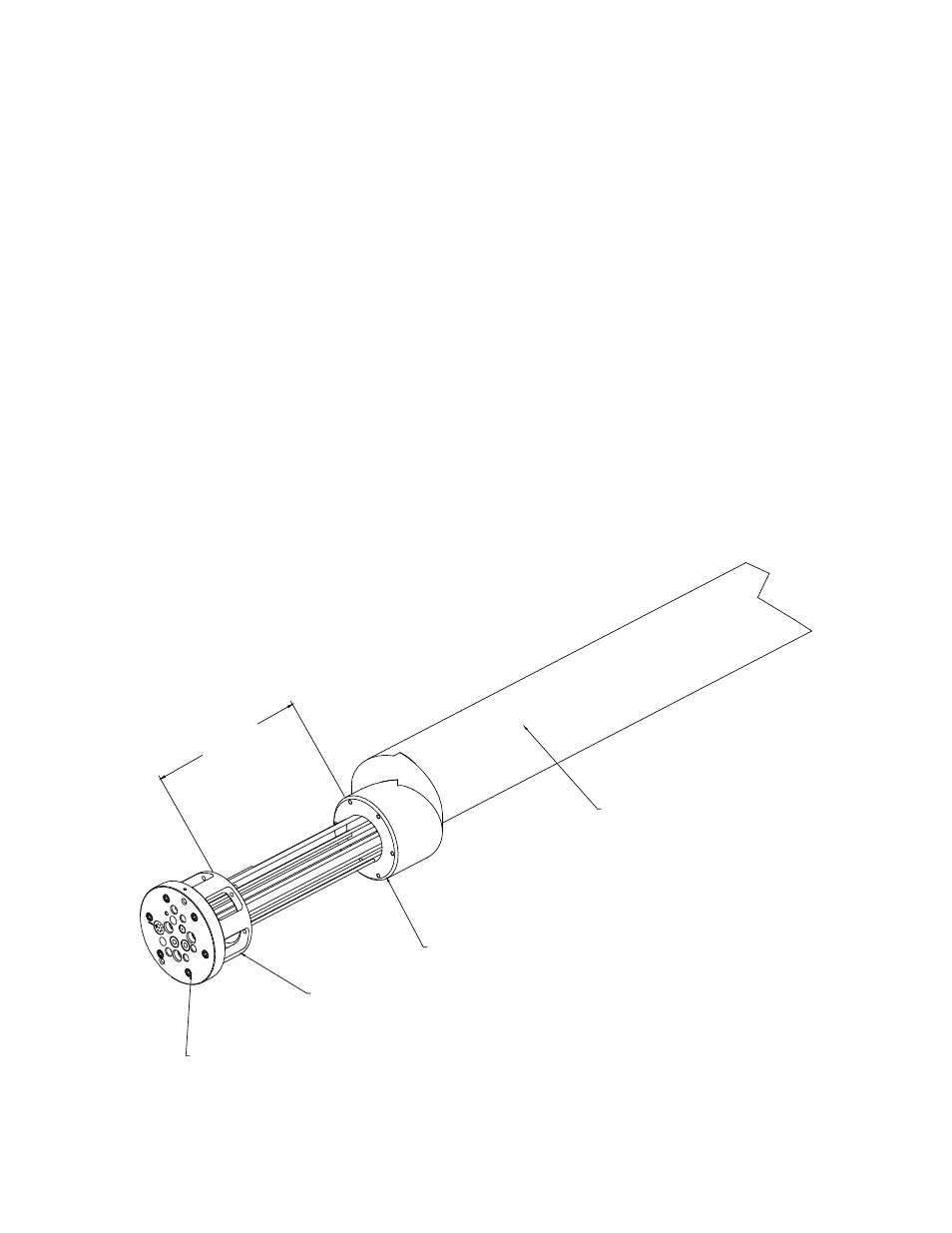

Figure 8: Tubing Bundle Installation

250 MM

(10")

APPROX.

ROBOT WRIST PLATE

TYPICAL

ROBOT

ARM

ROBOT

SPACER

PLATE

APPLICATOR

MOUNTING

PLATE

23

Evolver 303 Robotic Atomizers - Installation
