75777-01 Single Head Spray Applicator
75777-02 Dual Head Spray Applicator
75777-03 Robot Wrist Flange
75777-XX SPRAY
APPLICATOR COVERS
Part # Description
The 74035, Test Air Cap and Gauge Assembly, is
designed for use with a Test Station or while the
applicator is connected to the robot or reciprocator.
The test air cap is comprised of two air pressure
gauges, pressure gauge stand, special 74061-XX
air caps, and all required tubing and fittings.
The air cap has two tapped holes for small barbed
tube fittings. The fittings are located so that the
gauges connected to them will measure the actual
cap pressure of the atomization and pattern air.
Using this test cap will assure uniform atomization
and pattern quality, regardless of air supply tube
lengths from one applicator to another.
73896-01 Electrode and Air
Cap Protector
This is a plastic cylinder that fits over the air cap
retainer. The protector keeps the electrode and
other spray head parts from being damaged during
booth cleaning and at other times when the spray
applicator is not in use.

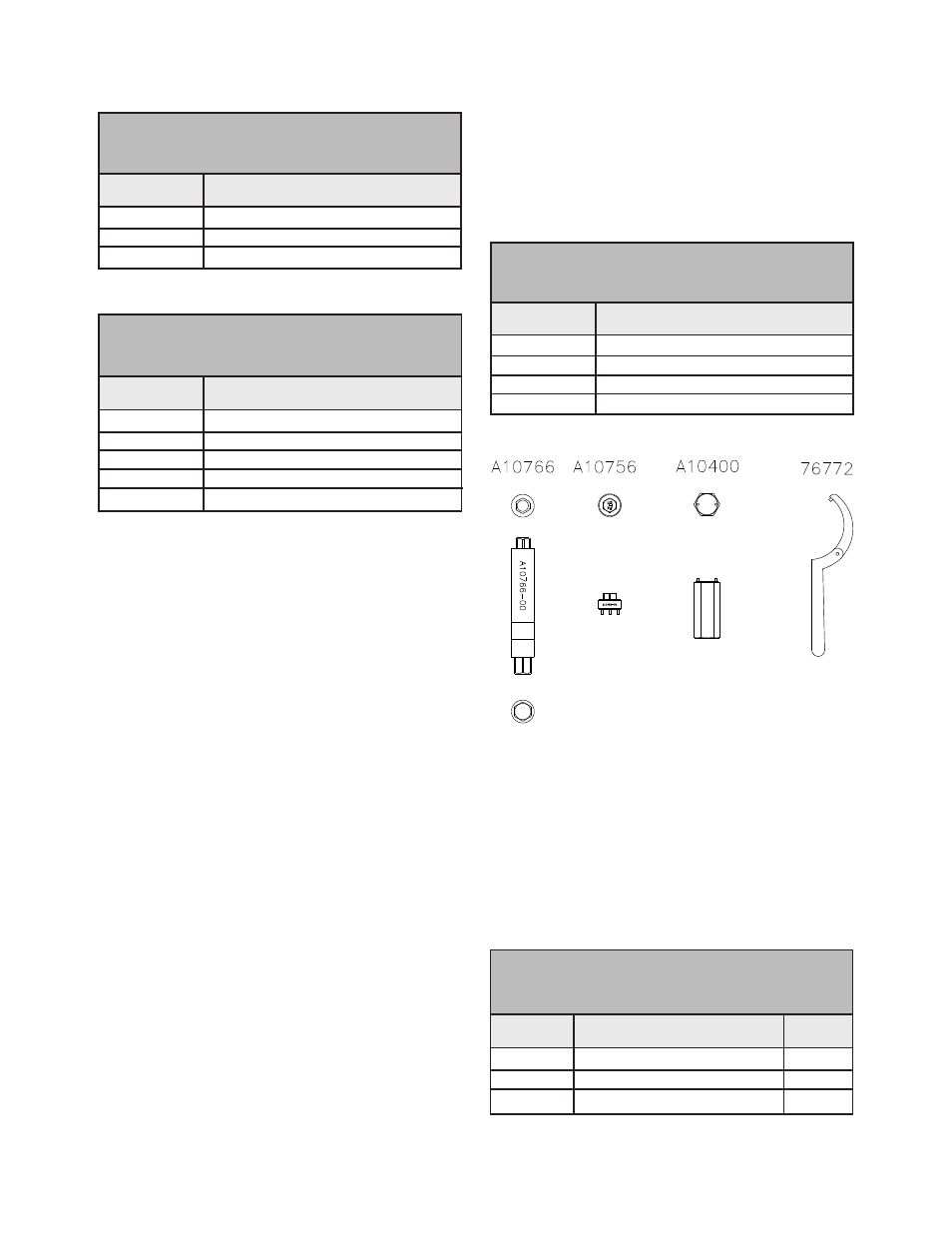

Figure 32: 79203-00 Tool Kit
79203-00 Tool Kit
Provided with each applicator is a tool kit to aid in
the disassembly and assembly of the applicator
during servicing.
A10410-00 SPRAY HEAD
O-RING KIT
Available for purchase as a kit containing all of the
o-rings used for a single Evolver 303 spray head.
This kit can be purchased to replace o-rings.
74035-21 #65R-1 Test Cap
74035-22 #98-1 Test Cap
74035-23 #63-1 Test Cap
74035-24 #48-1 Test Cap
74035-25 #481-1 Test Cap
74035-XX TEST AIR CAPS AND
GAUGE ASSEMBLY
Part # Description
A10756-00 Valve Removal Tool
A10766-00 Valve Seat Removal Tool
76772-00 Retaining Ring Spanner
A10400-00 Seal Carrier Tool
79203-00 TOOL KIT
Part # Description
79001-04 O-Ring, Solvent Proof 1
79001-06 O-Ring, Solvent Proof 1
79001-05 O-Ring, Solvent Proof 1
A10410-00 SPRAY HEAD
O-RING KIT
Part # Description Qty
74
