Ransburg, Low voltage cable removal - parts list (figure 15), Evolver 303 robotic atomizers - maintenance – Ransburg Evolver 303 Solvent Applicator A11976-XXX User Manual
Page 46

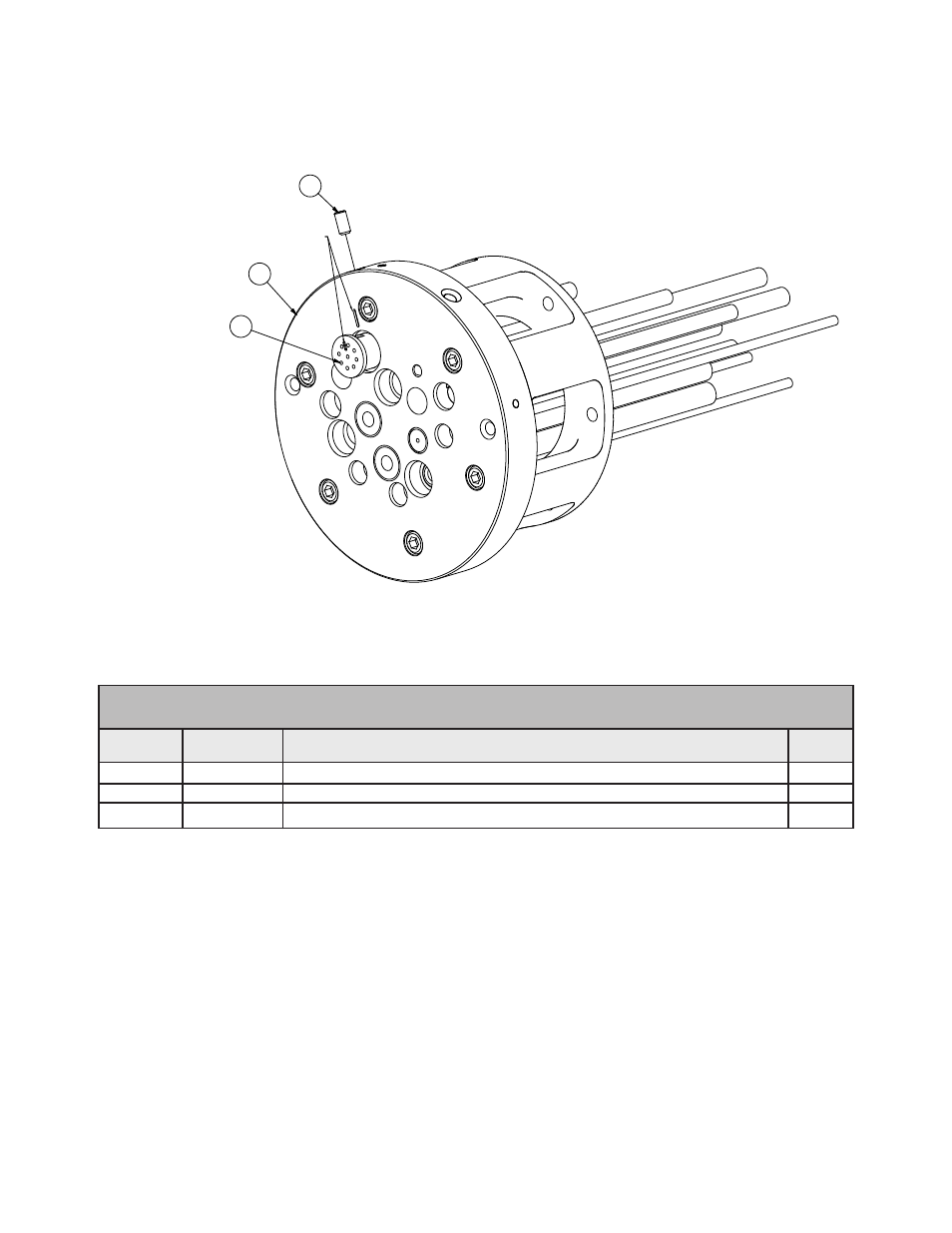

Figure 15: Low Voltage Cable Removal
1
A11062-00
Asssembly, Robot Mounting Plate
1
2
SSF-2052
Set Screw, 3/8" Lg. X #10-24
2
3
79008-XX
Assembly, Cable Low Voltage
1
Item #
LOW VOLTAGE CABLE REMOVAL - PARTS LIST (Figure 15)
Part #
Description
Qty
2
1
3
ALLIGN TIMING AS SHOWN
43
Evolver 303 Robotic Atomizers - Maintenance
Ransburg
AA-07-03.2
