A11976-XXX EVOLVER
SPRAY APPLICATOR
ASSEMBLY
The spray applicator assembly is designed to con-
nect to hollow wrist robots. A low voltage control
cable is supplied with the tubing bundle to connect
the cascade to the MicroPak power supply.

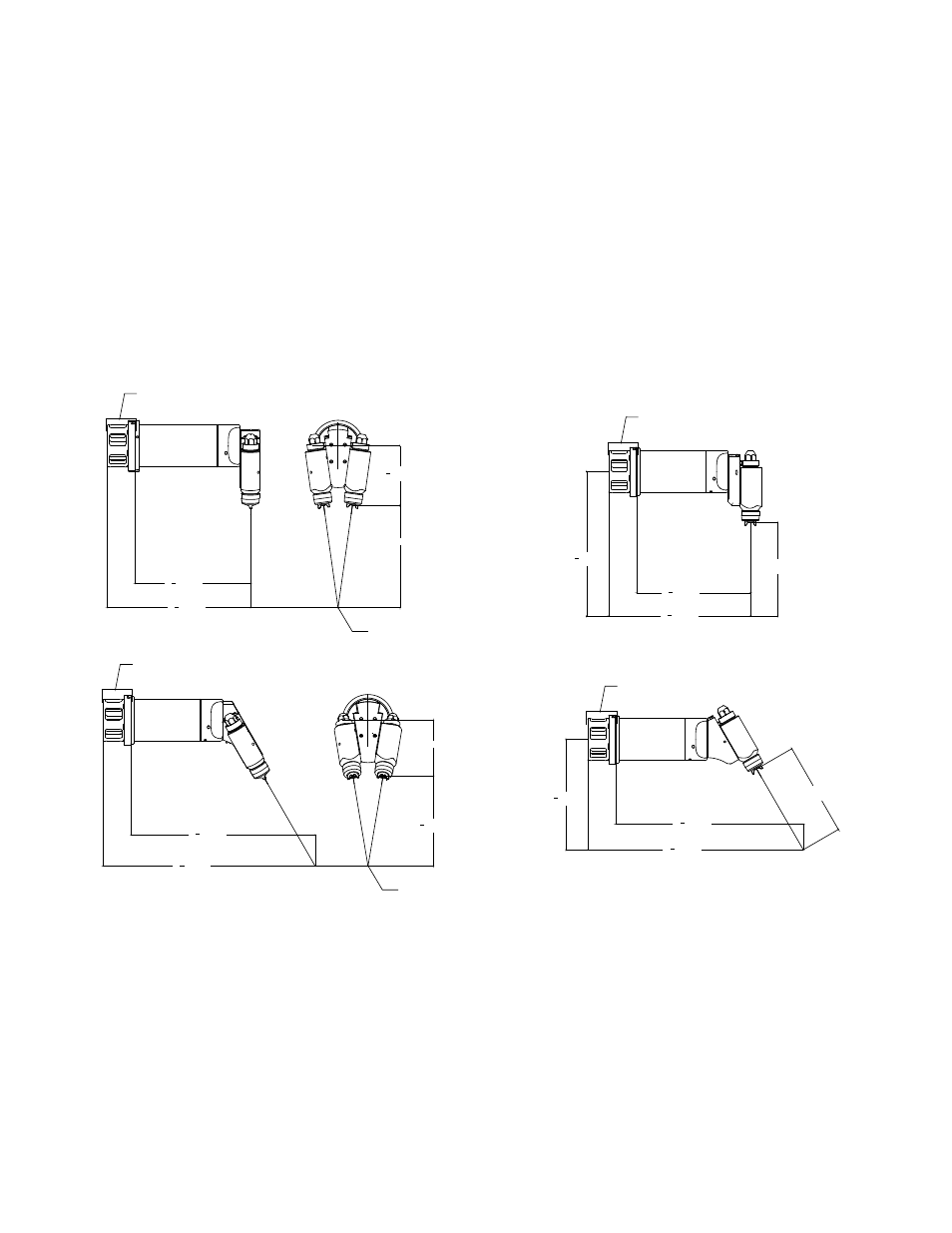

Figure 3: Tool Center-Point
Tool Center-Point
Figure 3 shows the tool center-point information
for the four applicators. For dual head applicators,
the tool center-point is based upon the conver-
gence point. For the single head applicators it
is based upon a 10" target distance. The "Tool
Center-Point Comparisons Table" compares the
tool center-point of several automatic spray ap-
plicators.
6 [151.9]
DUAL HEAD 90° SINGLE HEAD 90°
SINGLE HEAD 60°
DUAL HEAD 60°
CONVERGENCE POINT
CONVERGENCE POINT
ROBOT ADAPTER AND
MOUNTING PLATE
ROBOT ADAPTER AND
MOUNTING PLATE
ROBOT ADAPTER AND
MOUNTING PLATE
ROBOT ADAPTER AND
MOUNTING PLATE
2318 [587.5]
1514 [386.3]
1512 [392.8]
2234 [578.4]
1134 [299.9]
638 [161.4]
11 [279.1]
1538 [390.6]
10 [254.0]
TARGET DISTANCE
10 [254.0]
TARGET DISTANCE
1214 [310.2]
2018 [511.4]
1238 [314.5]
958 [245.6]
1934 [502.4]
14
Evolver 303 Robotic Atomizers - Introduction
Ransburg
AA-07-03.2
