Low Voltage Cable Removal
(Refer to Figure 15)
1. Disconnect low voltage cable [3] from rear
of power supply. For A10406-XX power supply,
disconnect circular connector from receptacle on
rear of power supply. For LECU5004-XX power
supply, disconnect wires from connector J3 at rear
of MicroPak.
2. Loosen retaining ring [6] (see Figure 13) and
remove applicator from robot wrist.
3. Using 3/16" Allen wrench, remove set screw
[2] (see Figure 14).
4. Remove the low voltage cable [3] by pulling
through the robot arm and mounting plate [1].
5. To reinstall, insert power supply end of cable
[3] through mounting plate [1], pull through robot
arm and connect to junction box or power supply.
For connections to power supply, plug connector
into receptacle (A10406-XX power supply) or con-
nect wires as shown in Figure 4 (LECU5004-XX
power supply).
6. Align the timing mark of the plug on the ap-
pli-cator end of the cable [3] with the mark on the
mounting plate [1] and tighten set screw [2].
Rear Manifold Removal /
Replacement
Remove the rear manifold from the applicator (see
"Spray Applicator Disassembly" in the "Mainte-
nance" section). Inspect the valve weep ports on
the manifold body for leaks or contamination. If
any paint is visible in these areas, the valves need
to be replaced as shown in Figure 16.

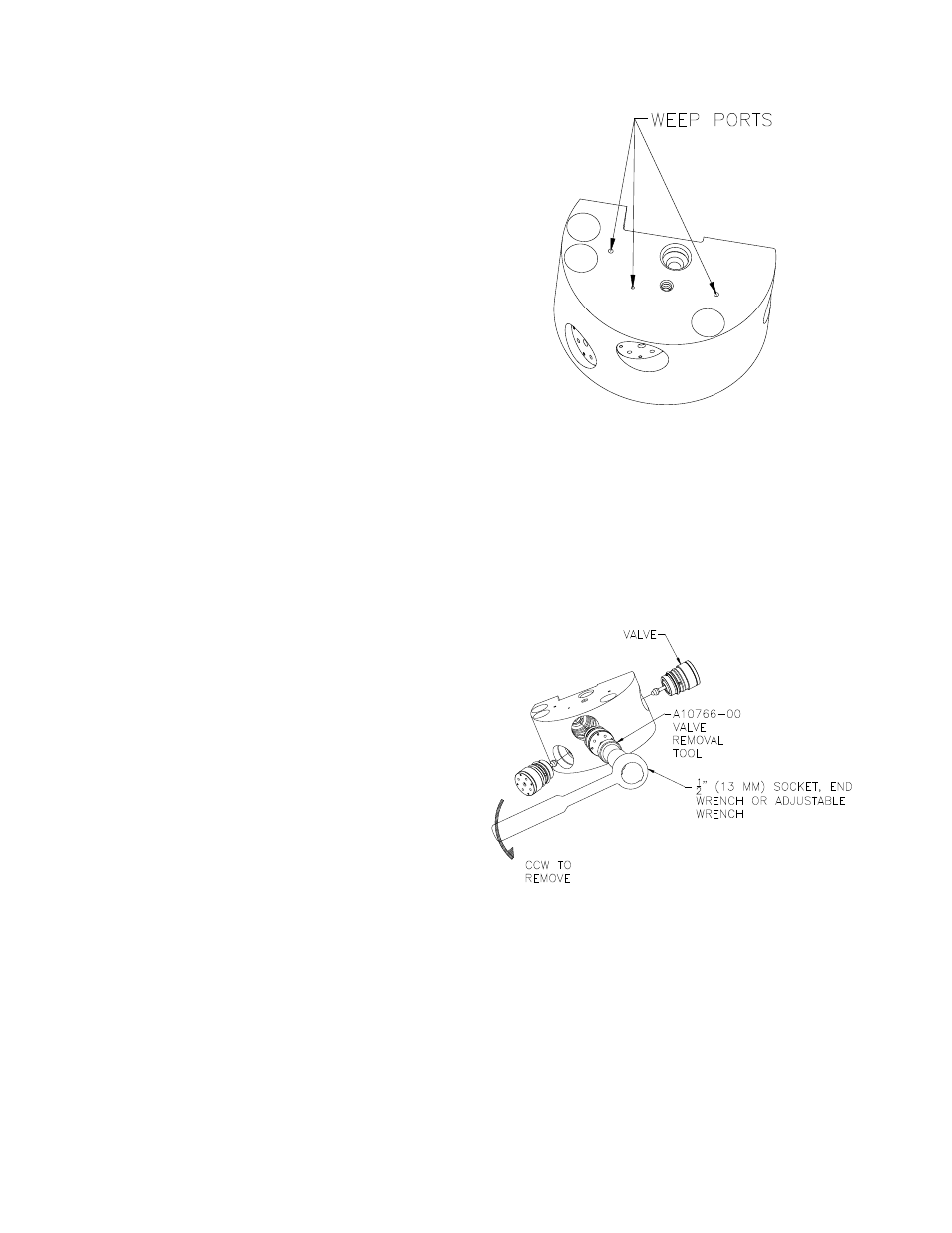

Figue 16: Weep Port Locations
Using the valve removal tool (A10766-00), engage
the four (4) pins on the tool to the corresponding
four (4) hole pattern in the top of the valve. Using
a 1/2" (13mm) socket, end-wrench, or adjustable
wrench, remove the valve by turning counter-clock-
wise, as shown in Figure 17.
Figue 17: Valve Removal
