Chapter 2 Installation Communications Connections
34 PowerSmart+ Power Quality Meter

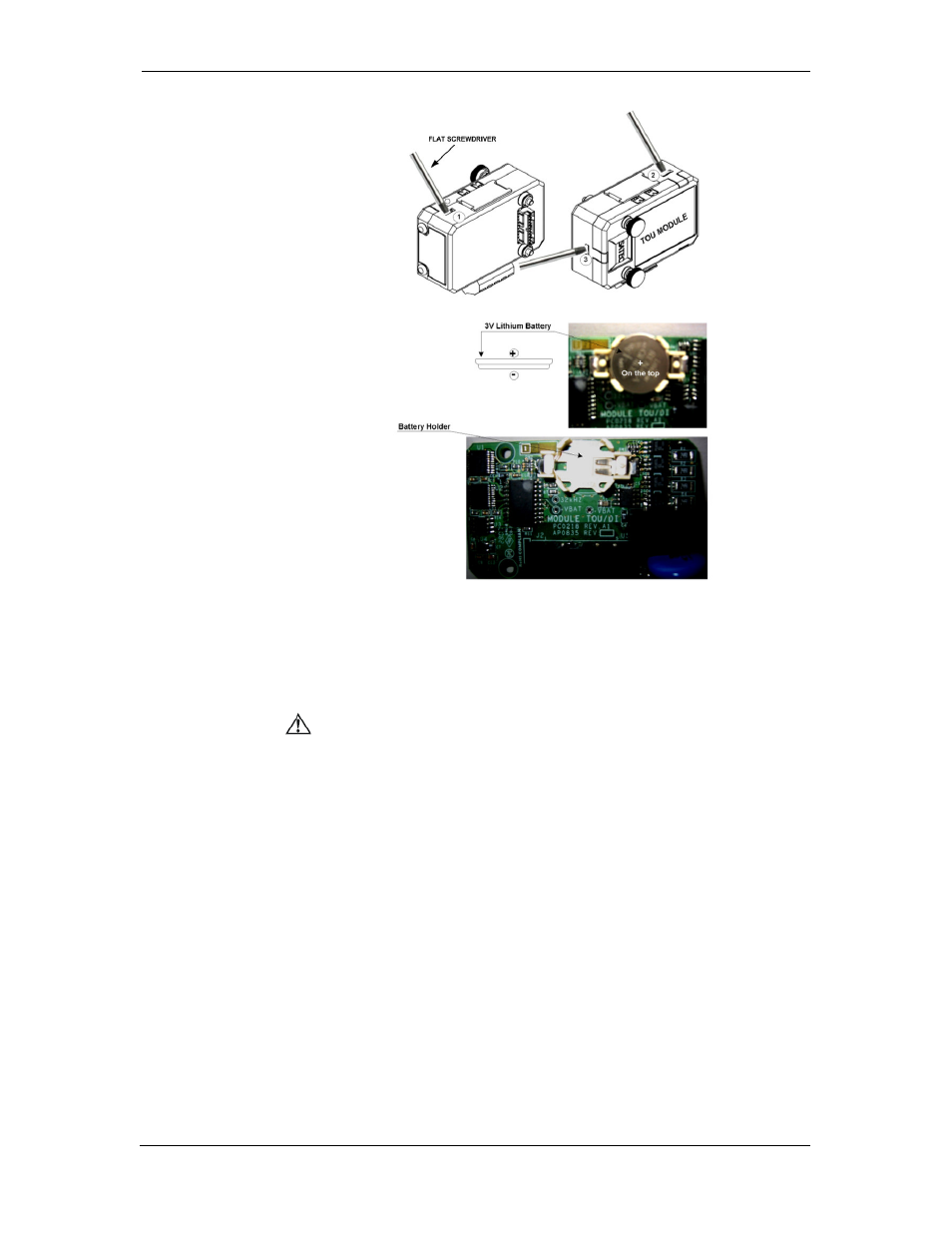

Figure 2-26: TOU RTC Battery Replacement
2.6 Communications Connections
Before installing the Communication Module, ensure that all
incoming power sources are shut OFF. Failure to observe this
practice can result in serious or even fatal injury and damage
to equipment.
Several communication options are available for the PowerSmart+ PQM:
• COM1: RS-485
• COM2, on optional communication module:
Ethernet 10/100BaseT
RS-232 or RS-422/485
A connection to the Ethernet connector is made through a cable adaptor
provided with your meter.
A full description of the communication protocols is found in the
PowerSmart+ PQM protocol guides that come with your meter.
⇒
The 12DI/4RO module can be equipped with optional communication
port COM2 – ETHERNET or RS-422/485
