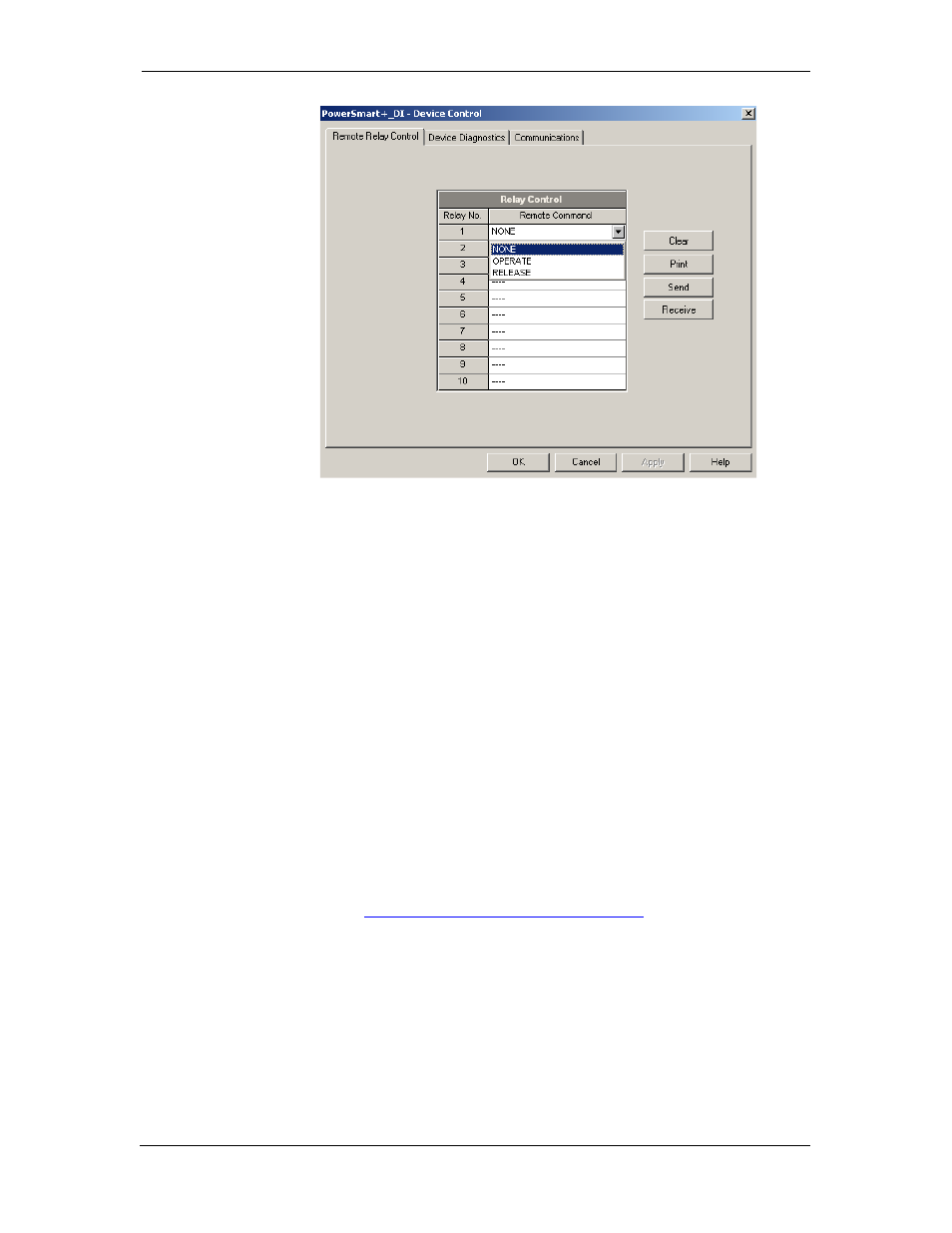

Figure 6-5: Device Control Dialog Box – Remote Relay Control Tab
To send a remote command to a relay:
1. Select a desired command in the Relay Command box for a
relay:
OPERATE – to operate a relay
RELEASE – to remove your remote command, or to release a
latched relay
2. Click Send.
6.5 Upgrading Device Firmware
Your meter has upgradeable firmware. If you need to upgrade your
device, download a new firmware file to the meter through Power
Software.
Firmware can be downloaded via the Modbus RTU or Modbus/TCP protocol
through any communication port.
To download a new firmware file to your device:
1. Ensure that the communication port you are connected through to
the meter operates in Modbus mode.
2. If you are connected to the meter through a serial interface, it is
recommended to set the port baud rate to 115,200 bps. See
Setting Up Serial Communication Ports on how to remotely
change the protocol and baud rate in your meter.
3. Ensure that the On-line button on the Power Software toolbar is
checked, and then select Flash Downloader from the Monitor
menu and confirm downloading.
4. Point to the firmware upgrade file for your meter, click Open, and
then confirm upgrading the meter.
