Chapter 2 Installation Site Requirements
18 PowerSmart+ Power Quality Meter
Chapter 2 Installation
This chapter discusses the following types of physical installations for the
PowerSmart+ PQM Powermeter:
• Mechanical Installation
• Electrical Installation
• I/O Connections
• COM Port Connections.
2.1 Site Requirements
• Environmental conditions: as specified in Technical Specifications
in Appendix A
• Electrical requirements: as specified in Technical Specifications in
Appendix A
See Technical Specifications in Appendix A for more details
2.2 Package Contents
The PowerSmart+ PQM Powermeter package contains the following items:
• PowerSmart+ PQM unit
• Technical Documentation in CD Rom
• Optional accessories (depending on the options ordered, if any)
• Cables
2.3 Mechanical Installation
Refer to the figures provided in this section to properly perform the
mechanical installation.

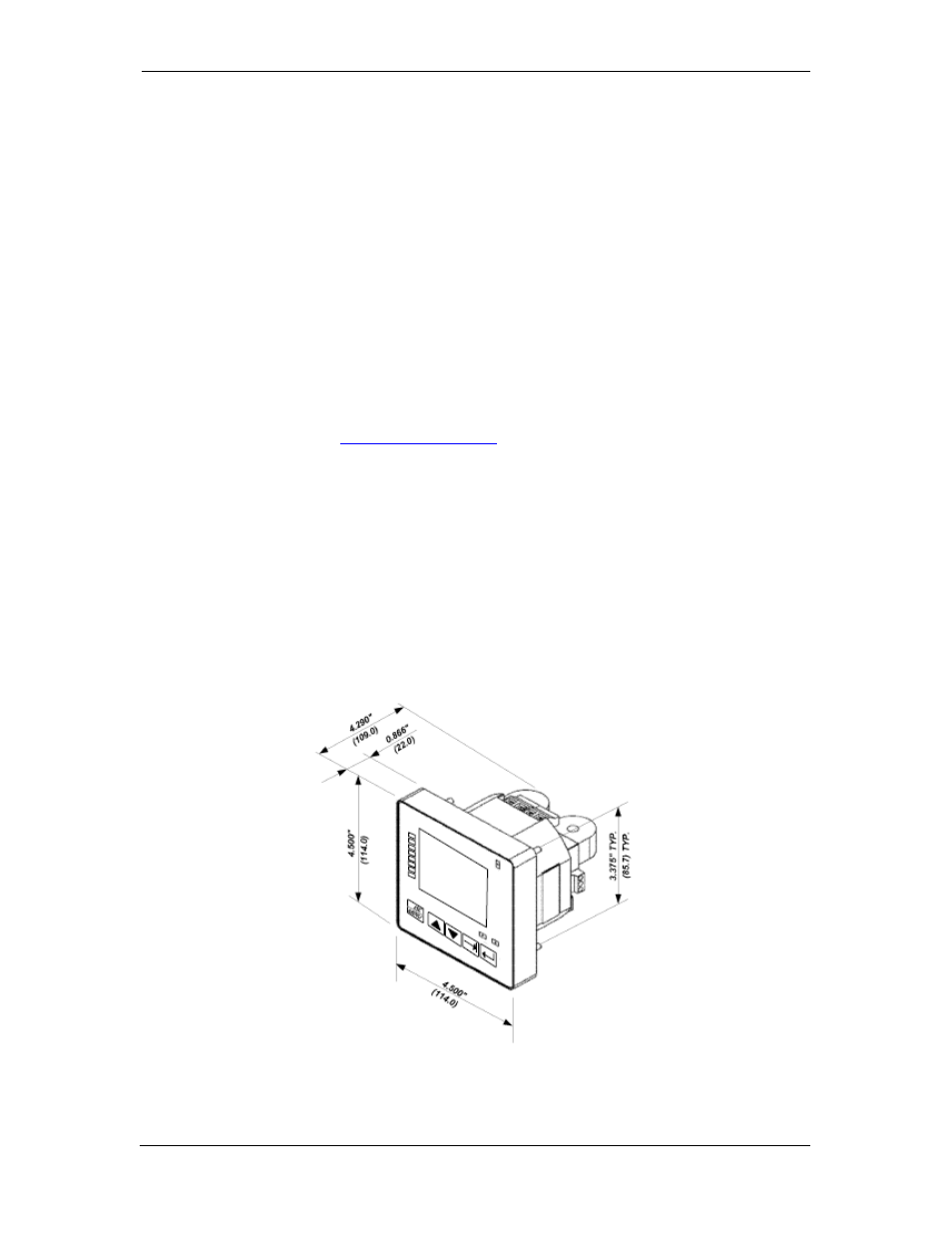

Figure 2-1. Dimensions
