Display and Operation Panels Model 7500ZA
Teledyne Analytical Instruments 34

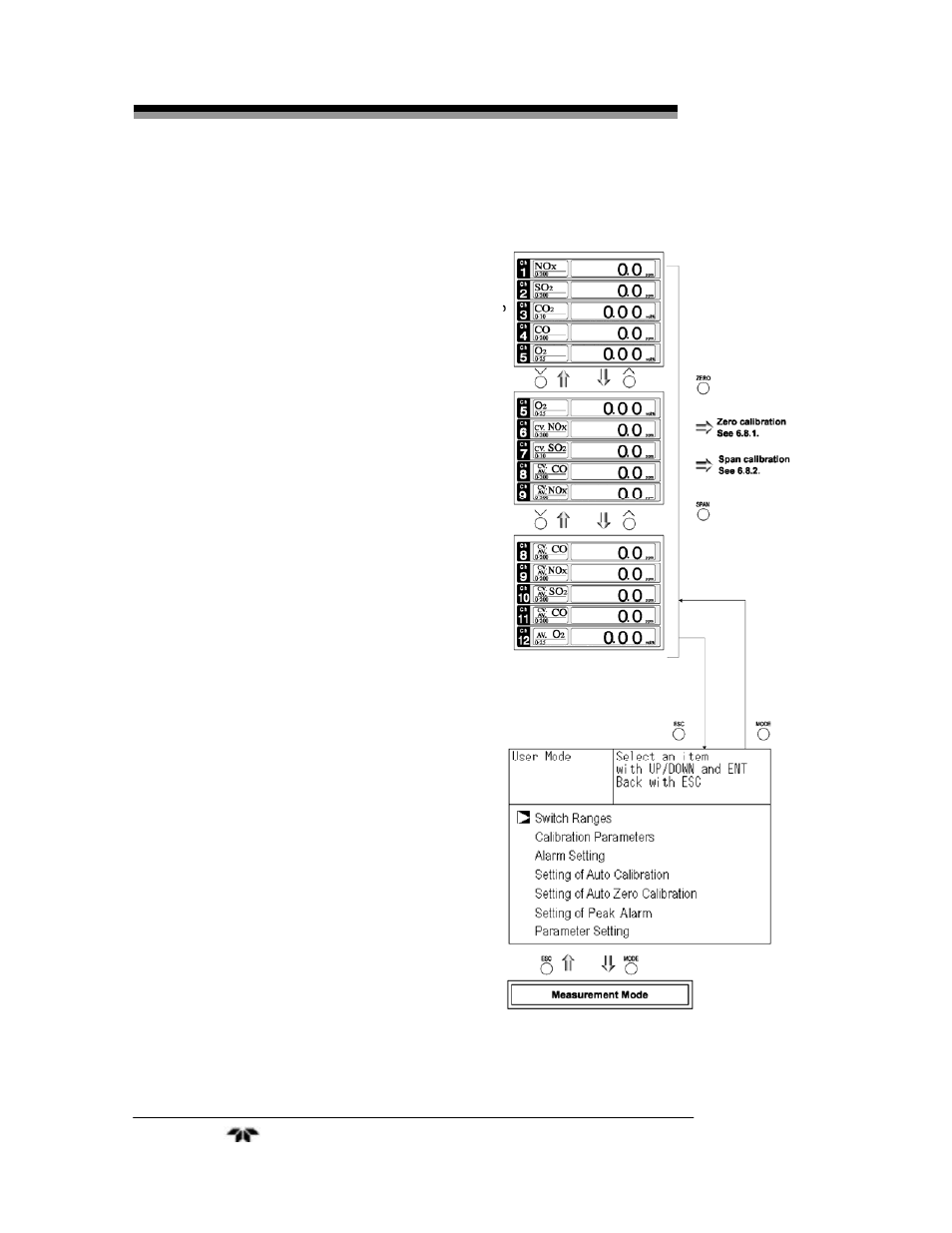

5.4 Basic Operation
 Measurement mode
The measurement mode can display up to
5 channels in a single screen. If 5 channels or
more are to be displayed in a single screen,
press the UP or DOWN key to scroll the
channels one by one.
•
•
•
•
•
User mode displays
• Switch Ranges
• Calibration Parameters
• Alarm Setting
• Setting of Auto Calibration
• Setting of Auto Zero Calibration
• Parameter Setting.
• Press the UP or DOWN key to move
the cursor to the desired function.
• Select the function by pressing the
ENT (ENTER) key. The screen display
will change to that of the selected
function.
• Each function is described in Chapter
6. Settings and Calibration.
