Installation Model 7500ZA
Teledyne Analytical Instruments 8
3.1 Installation Conditions
To install the analyzer for optimum performance, select a location
that meets the following conditions;
1. This instrument is designed for rack mounting in a standard 19”
equipment rack.
2. Indoor use only.
3. Vibration-free.
4. Free of dust and debris and obstruction around the analyzer.
5. AC power: 100V to 240 VAC
Operating voltage: 85V to 264V AC
Rated frequency: 50/60 Hz
Power consumption: 100 VA max.
6. Operating conditions:
Ambient temperature : -5° to 45°C (max. 40°C when two optical
units are used, and the power supply is more than 200V AC)

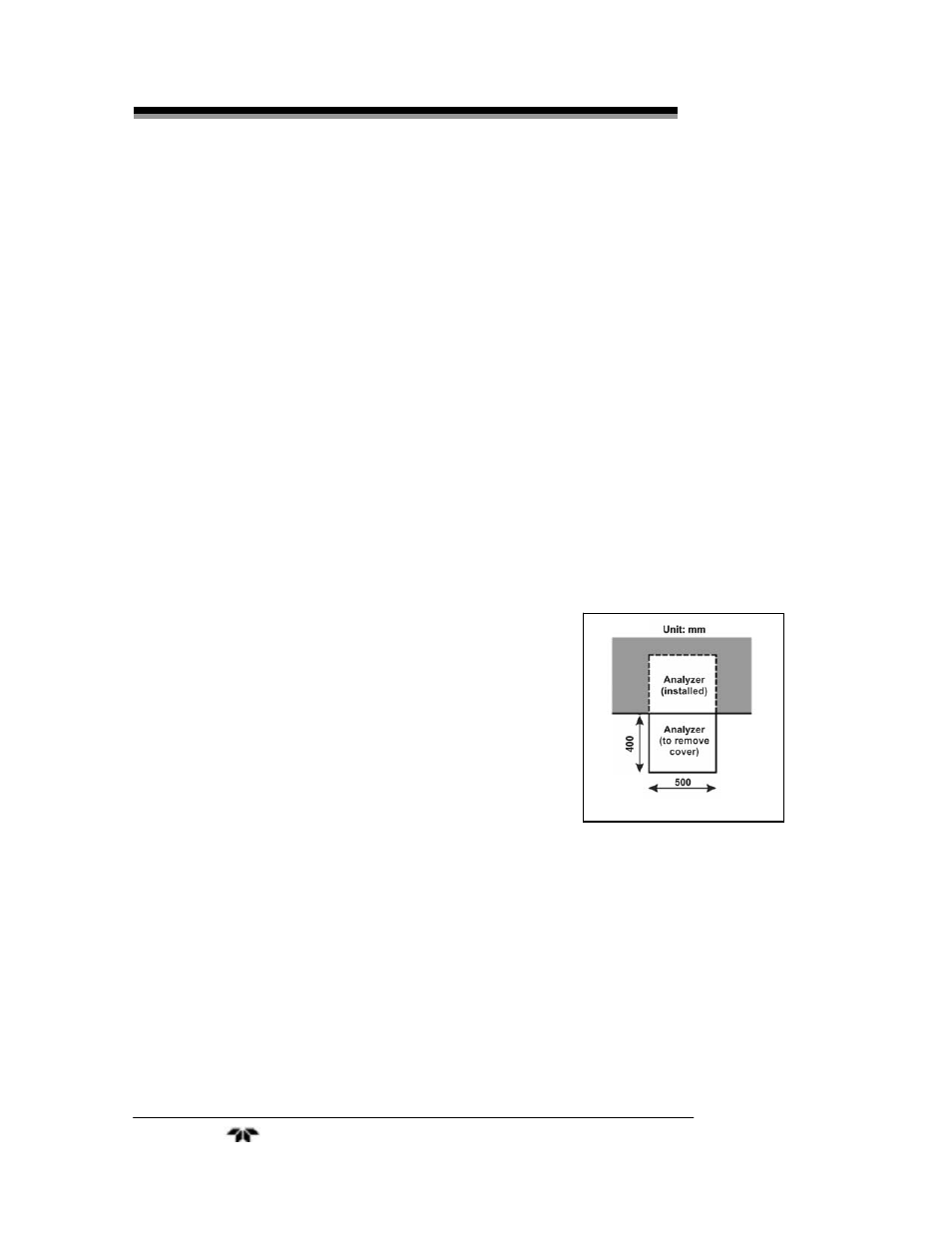

7. Maintenance space:
When analyzer is installed by itself, adhere to the
diagram to make sure there is adequate space to
remove the cover for maintenance.
When the analyzer is installed as an unit, See
Section 3.2.1
8. A circuit breaker that meets IEC60947-1 and
IEC60947-3 specifications should be installed.
9. A breaker should be installed near the analyzer
where an operator can access it.
10. A label that clearly identifies the breaker should be visible.
11. The breaker rating should meet the analyzer rating max 2A and
conform to all necessary approvals.
3.2 Installation
3.2.1 Installation of Analyzer Main Frame
Installation methods for the analyzer main unit is shown below.
