Items Included with Analyzer Model 7500ZA
Teledyne Analytical Instruments 4
RS-484 Connector
(1) (when provided with communications
function)
9 pin D-sub connector male
M2.6 x 4 mm
Ferrite Core
(1) for power cable (When terminal block
for power supply is specified)
Power Supply Cord (1) (when power input
is specified)
•
2.2 Name and Description of Analyzer
The operator interface is shown in Figure 2-1A and the various
connections to the instrument are shown in figure 2-1B.

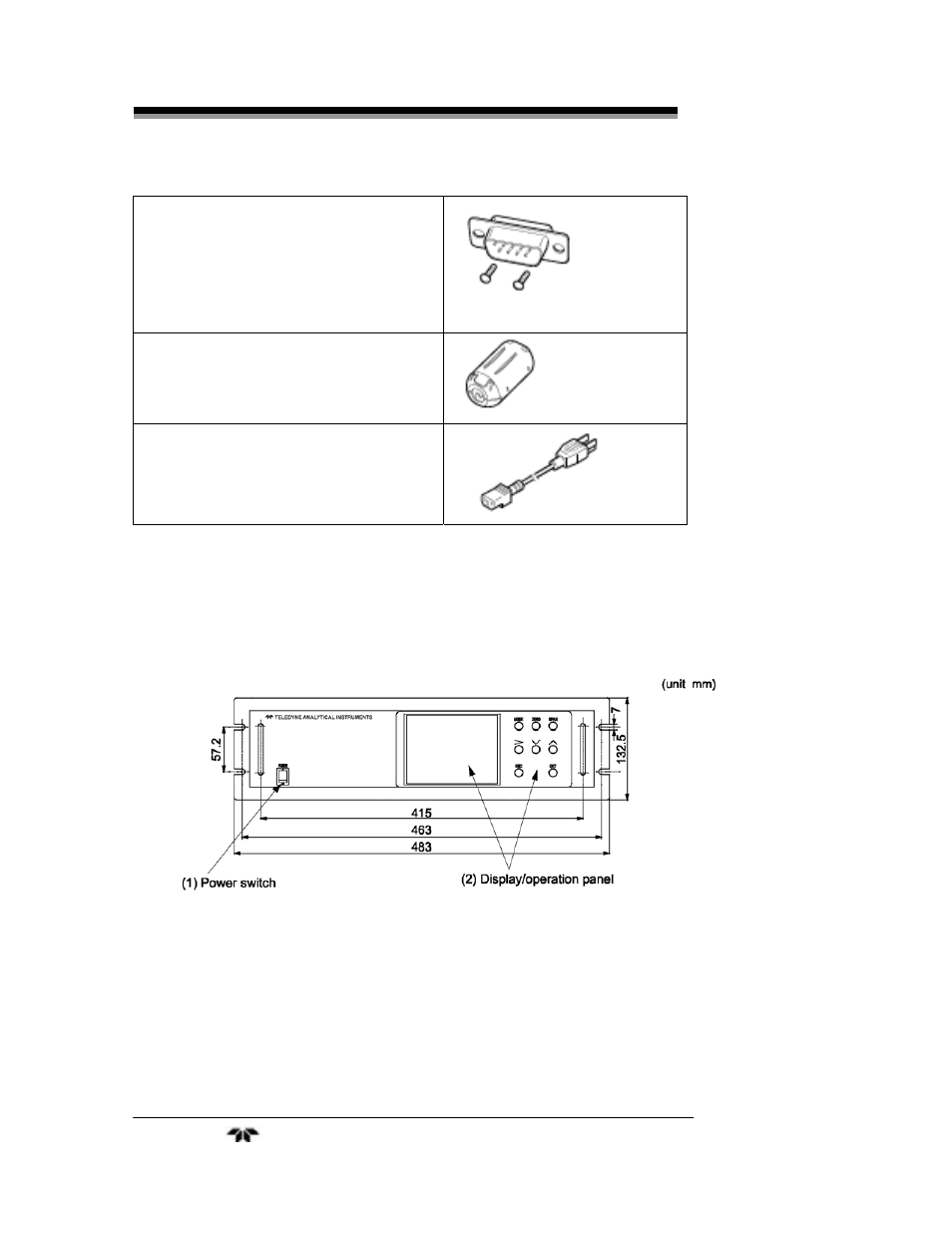

Figure 2-1A: Model 7500ZA Front Panel
