Introduction

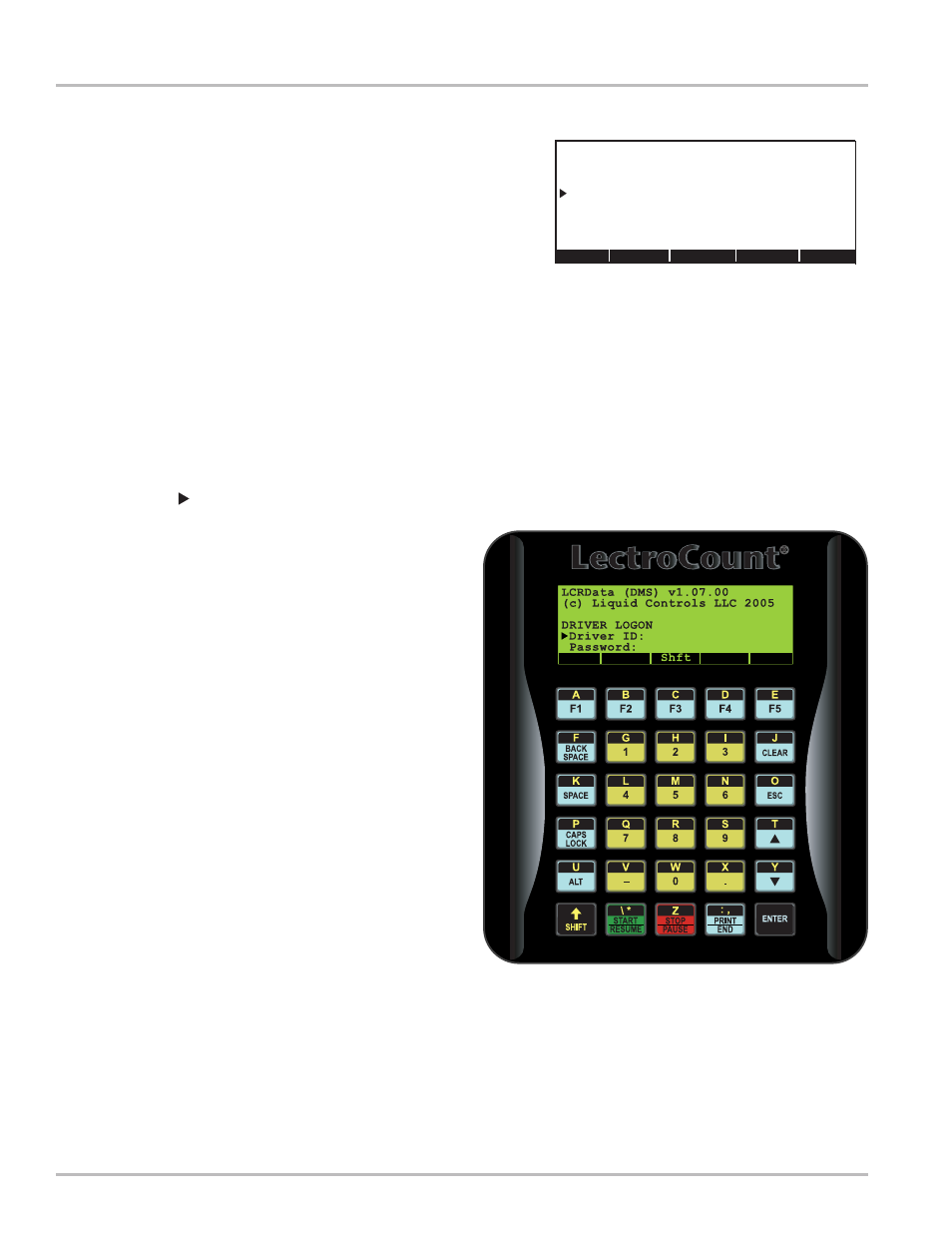

DMS Lap Pad Keyboard Layout
DMS Lap Pad Display Layout
Navigating the DMS Lap Pad
The DMS Lap Pad has an 8-line, 30 character per line
display. The layout of the screens displayed on the DMS
Lap Pad vary according to function. Each screen will have
items that appear as fixed standard fields, and most
screens will have fields that can be modified.
In the example screen on the right, Lines 1, 2, and 3 are
fixed standard fields. The information displayed in these
lines can’t be changed on this screen.
Line 1: Displays the screen title, ACCOUNT
INFORMATION, to the left and the screen count,
(2/3), on the right, indicating that the operator is
currently on the second of three screens.
Line 2: Displays the customer account number, 1111113,
on the left, and the tank number, 2, on the right.
Line 3: Displays the customer’s name.
Lines 4-7: Display a list of options that can be selected
using the (pointer) character. Using the up and
down arrows on the DMS Lap Pad, the pointer
moves up and down along the left side of the
options. The ENTER key selects the option to
the right of the pointer.
Line 8: Displays the commands assigned to the function
keys (F1 - F5) on the top row of the DMS Lap
Pad keyboard. In the example:
Util (F3) will bring up the Utilities menu
Back (F4) returns to the previous screen,
ACCOUNT INFORMATION (1/3)
Fwd (F5) advances to the next screen,
ACCOUNT INFORMATION (3/3).
The choices available in Line 8 will vary from screen to
screen.
ACCOUNT INFORMATION
1111113
Albert Constantine
Presets
Miscellaneous Fees
Discounts
Price and Tax Line 1
Line 2
Line 3
Line 4
Line 5
Line 6
Line 7
Line 8
F1 F2 F3 F4 F5
(2/3)
2
$25.00
0
Util Back Fwd
