IntroductIon -
lcr 600 InStrumentS and controlS
Text Buttons
Navigation Buttons
alphanumeric Keypad
The alphanumeric keypad is the navigation and data entry tool of the LCR 600. The four larger buttons on the right
side of the keypad are used primarily for navigating to fields on the display screen and navigating from one display
screen to the next. The ten smaller buttons on the left side are used to enter numbers, characters, and text when
changing the value of a field.
Next/Previous Screen
S Y S T E M S E T U P 1
Meter ID:
Unit of Measure:
Decimal Digits:
Residual Processing:
Flow Rate Base:
Flow Direction:
Printer:
Ticket Required?
dP Shutdown Value:
LCP Node Address:
Delivery Screen:
A101
GALLONS
TENTHS
ROUND
PER MINUTE
->
EPSON OldFontA
YES
25.0
250
Aviation
Display Screen Title
Pointer
Screen Navigation Field
Field Name
Field Value
Arrow Button to scroll the
pointer up the left side of the
display
Arrow Button to scroll the
pointer down the left side of the
display

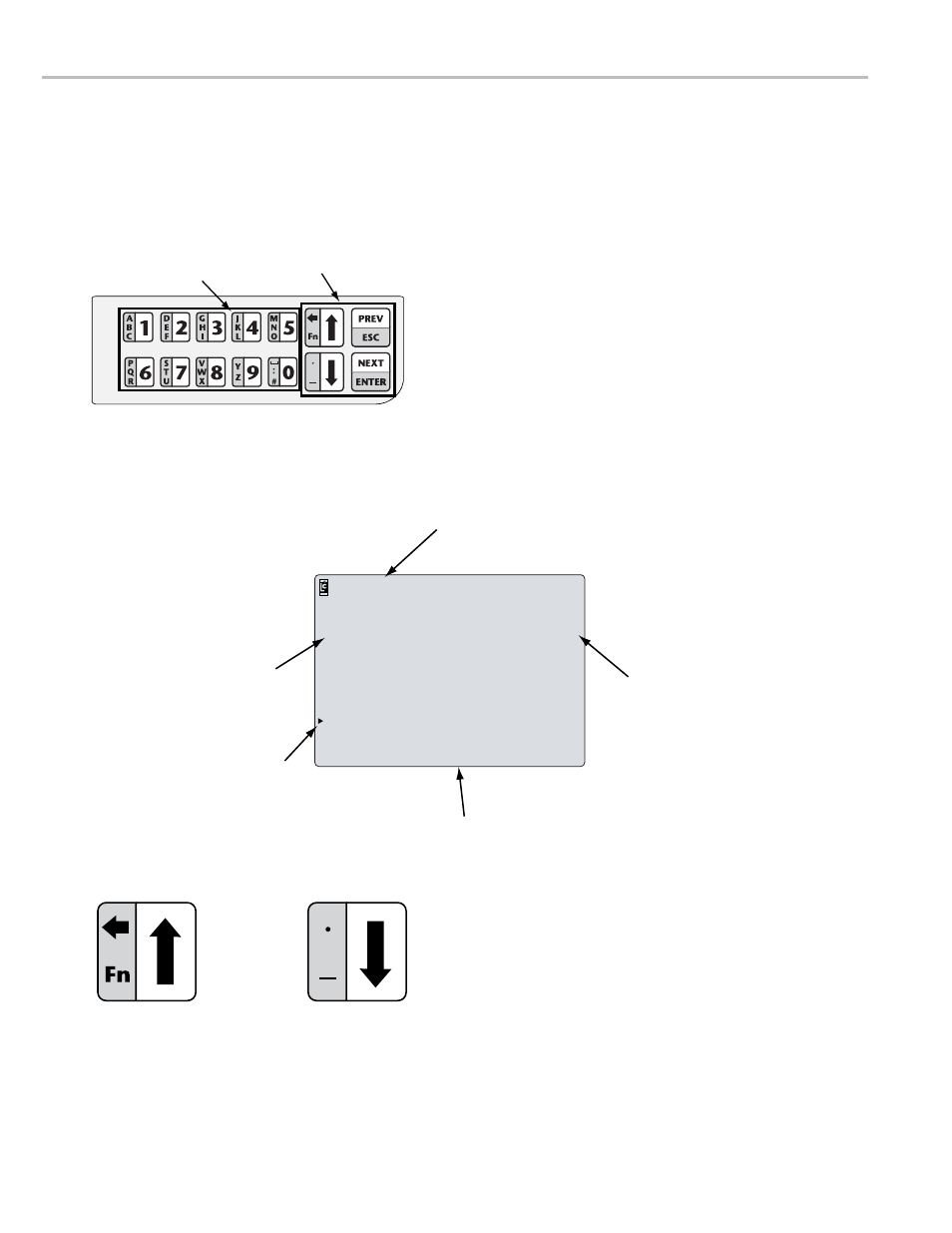

LCR 600 Alphanumeric Keypad
display Screens
LCR 600 display screens can contain up to 16 fields.
The values of most LCR 600 fields can be edited;
however, some fields are shown for data monitoring and
informational purposes only and can not be edited.
SelectIng fIeldS
To navigate to a field, there is a pointer that scrolls up
and down along the left side of the LCR 600 display
screens. If a field is not editable, the pointer will skip
over it.
To select a field on a display screen:
1. Move the pointer  on the far left of the display to the
desired field using the  and  buttons.
2. Press the EntEr button to open a list box or a text box.
After a field is selected, the LCR 600 will bring up a list
box or a text box, depending on the field, where the
value of the field can be changed.
