lcr 600 InStrumentS and controlS
- IntroductIon
red Selector Switch
The LCR 600 red selector switch, located at the bottom left of the LectroCount LCR 600, has five positions. The
selector switch’s primary purpose is to control everyday fueling and print functions. Functions include opening and
closing the control valve (via the deadman) in order to start and stop fuelings and prompting the printer to print fueling
tickets.

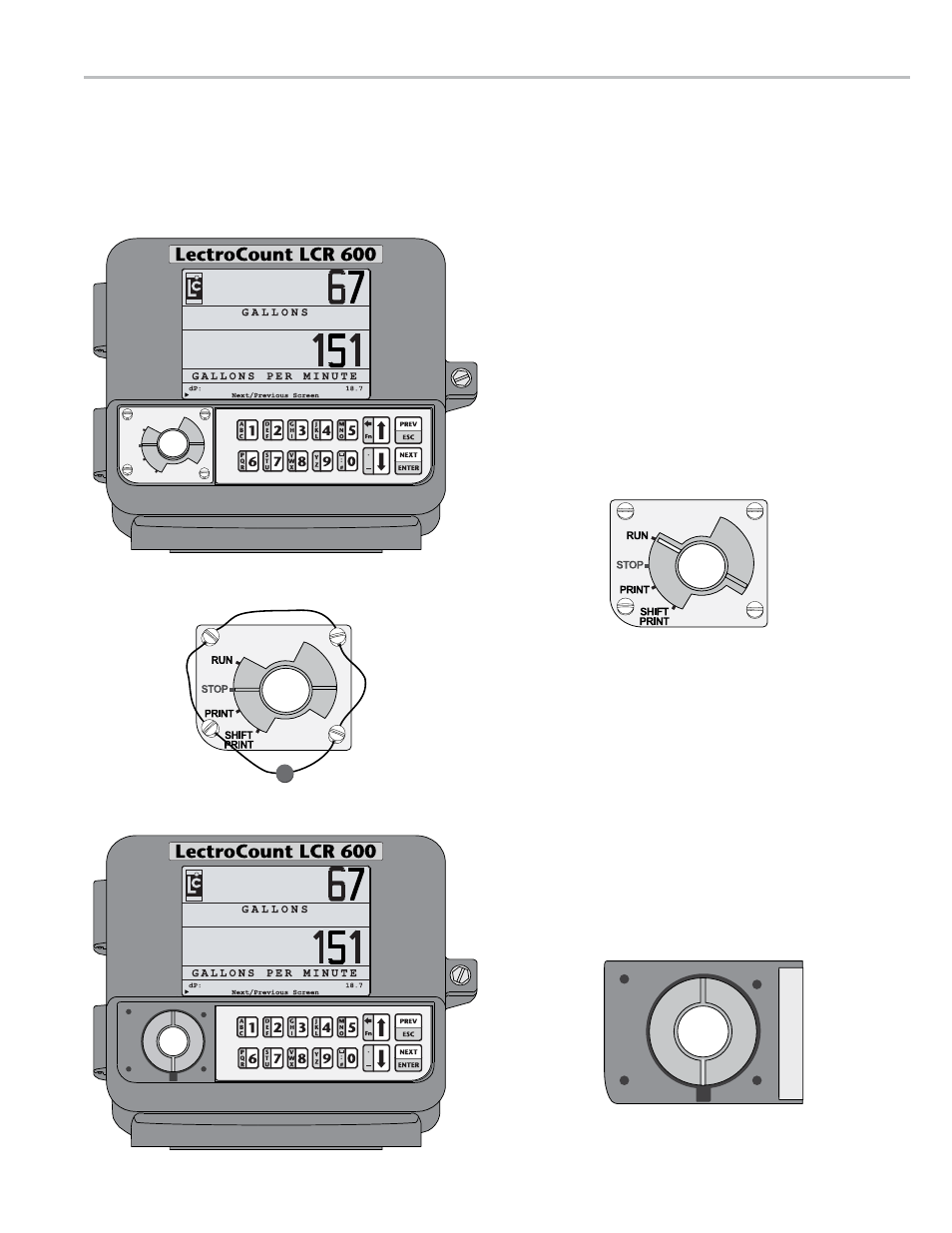

Red Selector Switch
Six o’clock Calibration Position
calIbratIon poSItIon
The red selector switch also provides a secure
calibration position. When in the calibration position, the
LCR 600 may be used to calibrate the flowmeter and
enter sensitive Weights & Measures data.
To turn the selector switch into the six o’clock calibration
position, the LCR 600’s switchplate must be removed. To
take off the switchplate, remove the four screws holding
it in place. If the LCR 600 has been previously calibrated
and approved by Weights & Measures, you will need to
remove the lead seal and the wire threaded through the
switchplate screws.
Selector Switch & Seal
LCR 600
LCR 600 without Switchplate
RUN
STOP
SHIFT
PRINT
PRINT
the fIve poSItIonS on the Selector SWItch
Run - activates the Deadman and opens the control valve to
begin a fueling
Stop - deactivates the Deadman and closes the control valve
to pause a fueling
pRint - ends a fueling and prints a fueling ticket
Shift pRint - this position is not used in FlightConnect LCR 600.
Shift information is automatically printed and sent to the office at fueler
log off.
Calibration position - allows access to calibration
configuration settings.
