To print a diagnostic ticket:
1. Turn the LCR 600 selector switch to STOP.
2. Turn the selector switch to SHIFT PRINT for less than 2
seconds and turn the switch to PRINT.

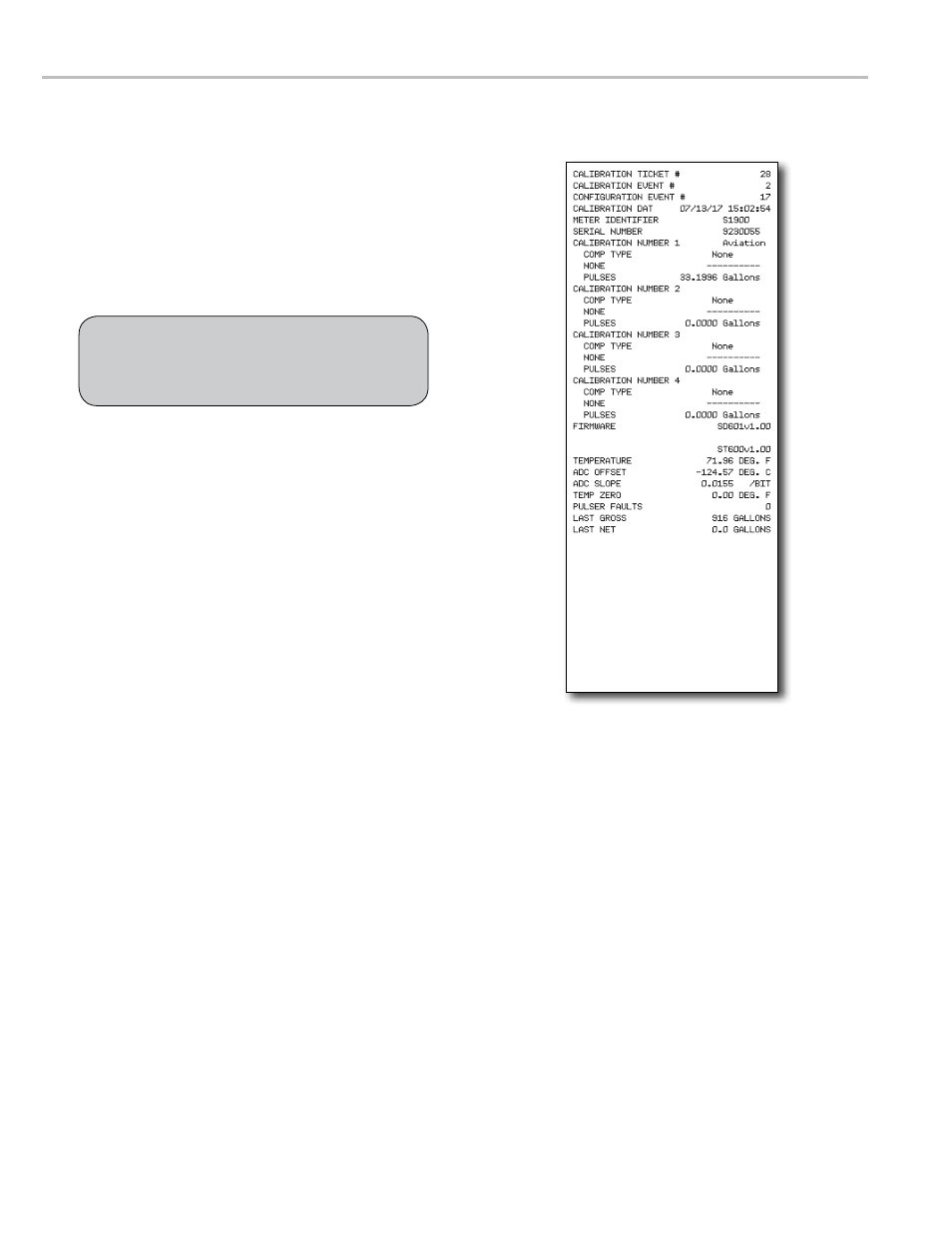

Diagnostic Ticket (Calibration Ticket)
diagnostic ticket
dIagnoStIcS -
dIagnoStIc tIcKet
Diagnostic tickets can run over the length of a standard
slip printer ticket. Two tickets may be required. When
the printer stops printing, replace the ticket and press
EntEr
on the LCR 600.
