Page 49

45
Operatingandfunctions

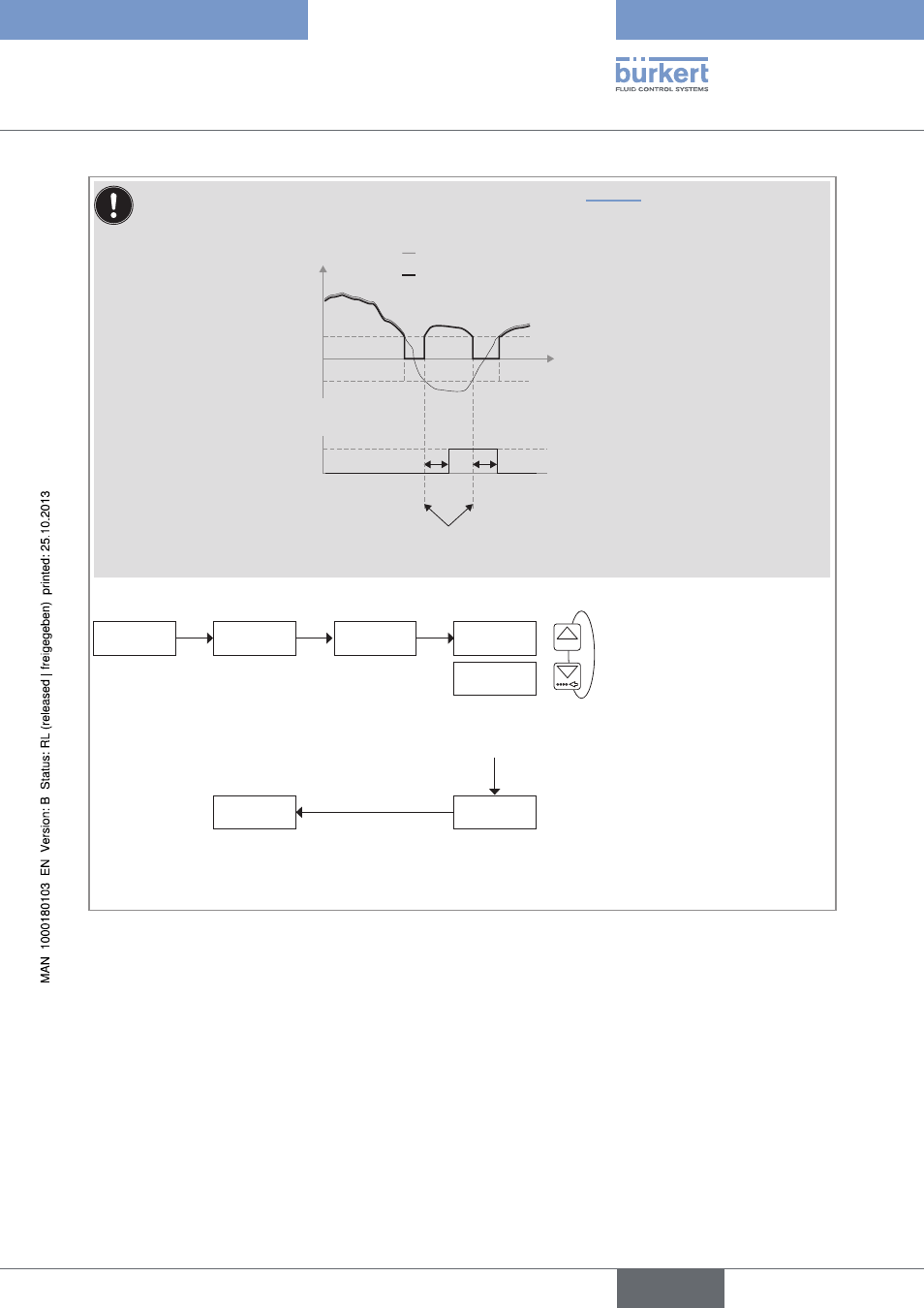

When	the	measured	flow	rate	is	in	the	cut-off	flow	range	(see	chap.	“8.6.16”),	the	flow	rate	is	set	to
0	and	positive.	The	following	diagram	shows	the	behaviour	of	the	DO	output	when	it	is	configured	to
indicate	the	fluid	circulation	changes,	when	the	CUT-OFF	function	is	used.
+CUTOFF
t
0
-CUTOFF
DEL
DEL
DO output active
DO output inactive
measured flow rate
displayed flow rate
flow rate
As	long	as	the	measured	flow	rate	is	lower	than	"-CUTOFF",	the	device	status
LED	is	orange	and	the	message	"NEG.	FLOW"	is	added	to	the	warning	message
list.
The DO2 or DO3 relay output can be configured to indicate the fluid circulation change.
OUtPUt
DO2
DiRECtiO.
DO3
iNV YEs
iNV NO
0......9
→
Choose	the	operating,	inverted	or	not	inverted,	of	the
relay	output.
DEL. 2= 00
→
Enter	the	time	delay	before	switching	value	(value
between	0	and	99	s).
→
Confirm.
Fig. 41:
Configuration of the DO2 or DO3 relay output to indicate the fluid circulation changes
English
Type 8045
