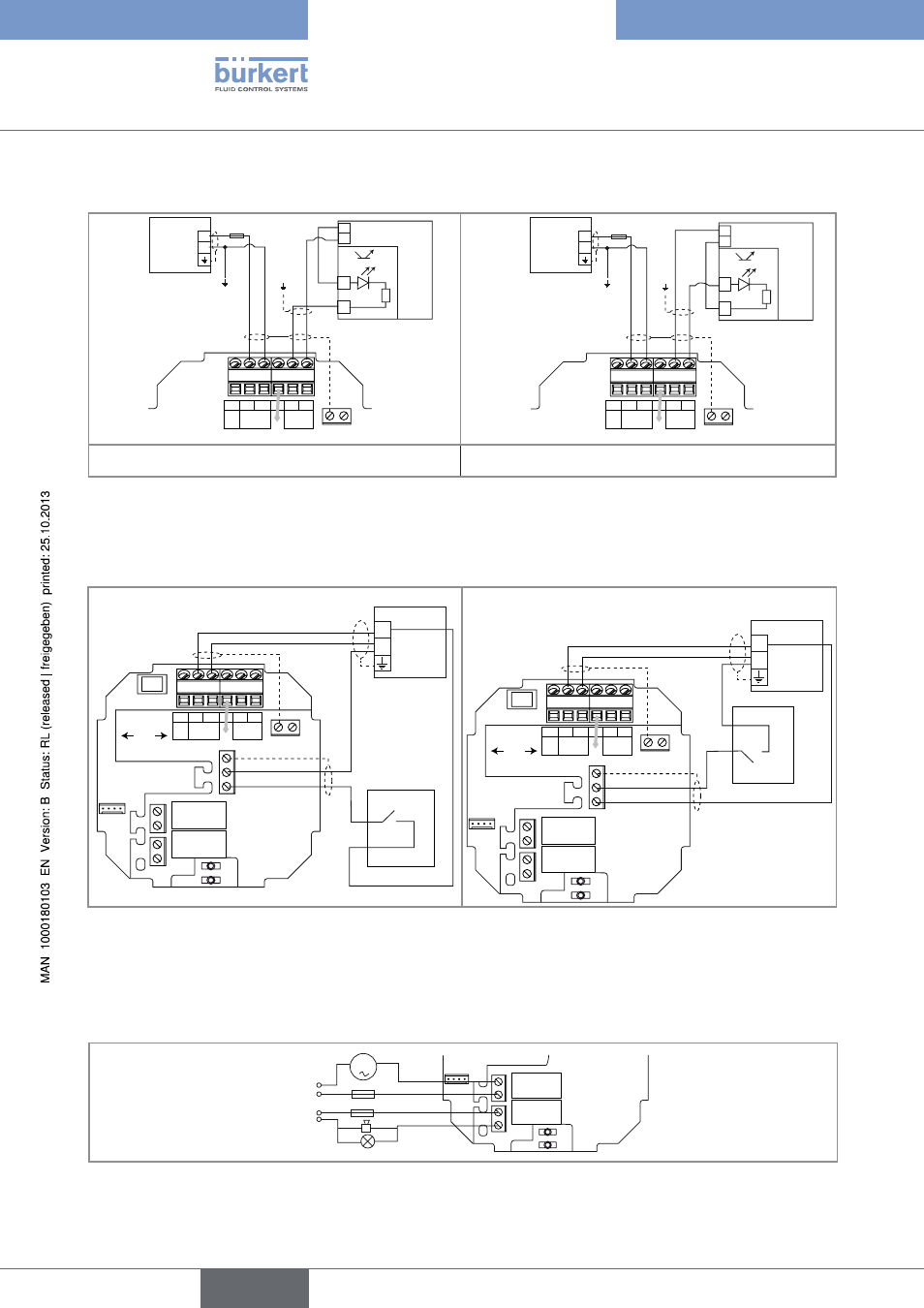

Page 30: English, 26 installationandcommissioning, Fig. 25: wiring of the do2 and do3 relay outputs, Type 8045

26
Installationandcommissioning
7.3.5.
Wiring the Do1 transistor output
L+ L- PE P+ P-
Iout
Supply
18...36 Vdc
PULSE
DO1
PE
AO1
300 mA
+
-
18-36 V DC
(*)
+
-
+
- 5-36 VDC
PLC
Power supply
L+ L- PE P+ P-
Iout
Supply
18...36 Vdc
PULSE
DO1
PE
AO1
300 mA
(*)
+
-
+
- 5-36 VDC
+
-
18-36 V DC
Power supply
PLC
Fig. 22:
nPn wiring of the DO1 transistor output
Fig. 23:
PnP wiring of the DO1 transistor output
*) If a direct earth connection is not possible, fit a 100 nF/50 V capacitor between the negative power supply terminal and the
earth
7.3.6.
Wiring the DI1 digital input
SOURCE
SINK
L+ L- PE P+ P-
Iout
Supply
18...36 Vdc
PULSE
DO1
CURRENT
PE
DI1
PE
DO2
DO3
AO1
+
-
18-36 V DC
+
-
(*)
Power supply
Switch
Power supply
Switch
SOURCE
SINK
L+ L- PE P+ P-
Iout
Supply
18...36 Vdc
PULSE
DO1
CURRENT
PE
DI1
PE
DO2
DO3
AO1
+
-
18-36 V DC
+
-
(*)
Fig. 24:
Possible wirings of the DI1 digital input
*) If a direct earth connection is not possible, fit a 100 nF/50 V capacitor between the negative power supply terminal and the
earth
7.3.7.
Wiring the Do2 and Do3 relay outputs
DO2
DO3
230 VAC
m
3 A
3 A
230 VAC
Fig. 25:
Wiring of the DO2 and DO3 relay outputs
