12
Technicaldata
part
material (8045 with flow sensor in
pVDf) material (8045 with flow sensor in
stainless steel)
Seal FKM 8045 with a G2" nut: FKM
Earth ring of the flow sensor Stainless steel 316L (DIN 1.4404)
or Alloy C22 -
Electrodes holder - PEEK
Electrodes Stainless steel 316L (DIN 1.4404) or Alloy C22
180
91
21
218
181
11
3
123
116
88
88
ENTER

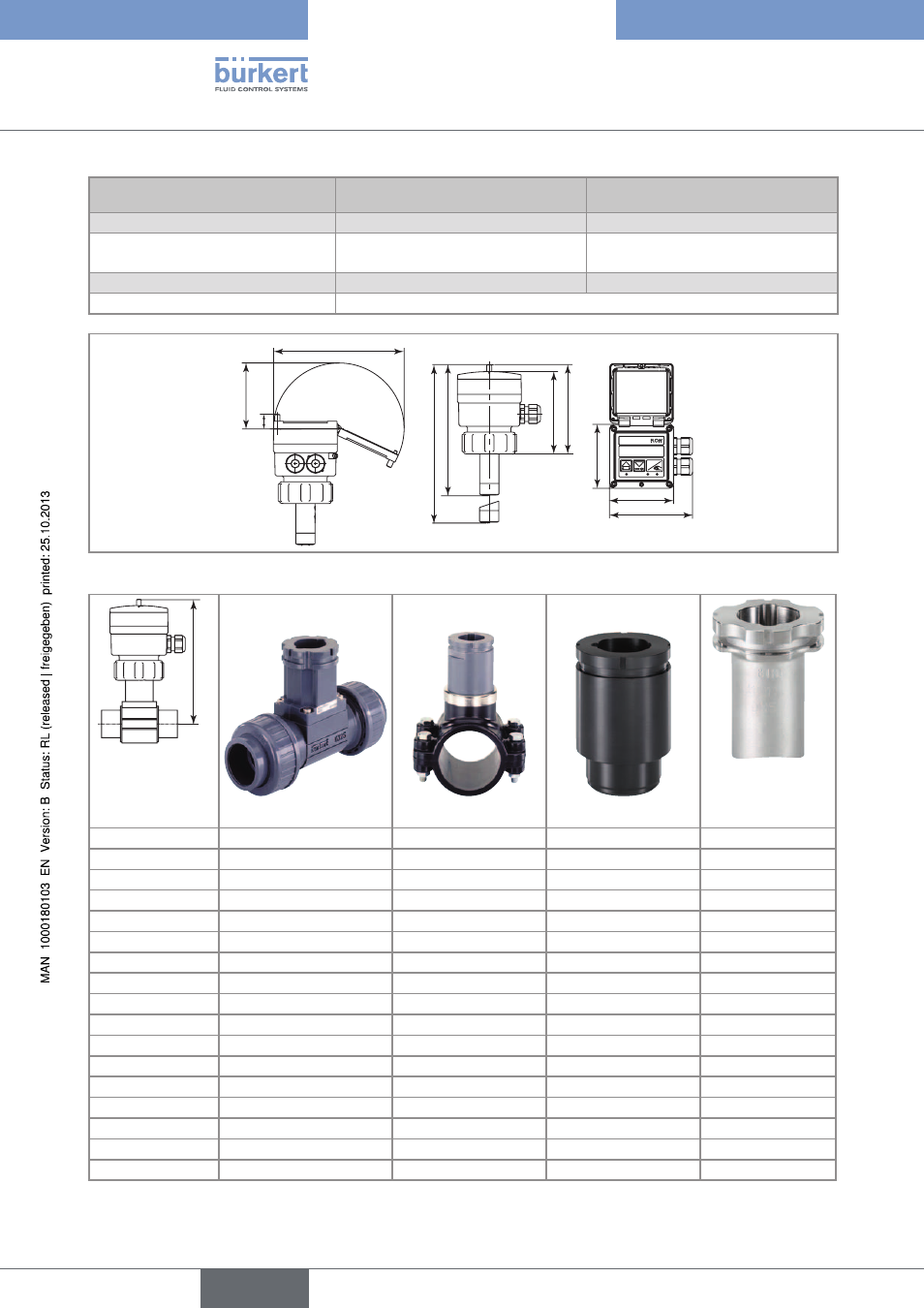

Fig. 2: Dimensions of flowmeter 8045 with a G2" nut [mm]
H
T-fitting Saddle Spigot, in plastic
Welding tab with
radius, in stainless
steel
DN6 182
DN8 182
DN15 187
DN20 185
DN25 185
DN32 188
DN40 192 188
DN50 198 223 193
DN65 198 222 206 199
DN80 226 212 204
DN100 231 219 214
DN110 227
DN125 234 254 225
DN150 244 261 236
DN180 268
DN200 280 282 257
DN250 300 317
English
Type 8045
