18
Installation

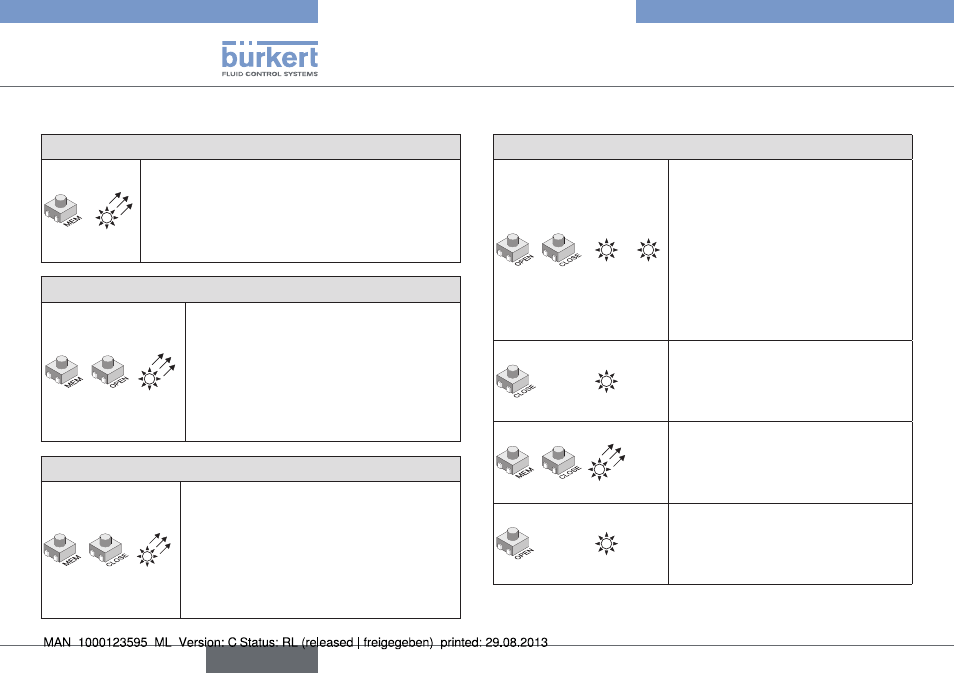

Specify control signal type
Control signal when voltage 0 – 10 V
R
→
Press push-button and switch on the
card (hold down push-button).
The RED LED lights up 3x.
→
Release push-button and disconnect
the card from the power supply.
Control signal when current 0 – 20 mA
R
→
Press and push-
button and switch on the card (hold
down push-button).
The RED LED lights up 3x.
→
Release and push-
button and disconnect the card from
the power supply.
Control signal when current 4 – 20 mA (preset)
R
→
Press and push-
button and switch on the card (hold
down push-button).
The RED LED lights up 3x.
→
Release and
push-button and disconnect the card
from the power supply.
Learning mode
Specify end positions
G R
→
Press and
push-button and switch on the
card (hold down push-button).
The RED and the GREEN LEDs light
up.
→
Release and
push-button.
Both LEDs go out.
Learning mode is selected.
R
→
Press push-button to
move the shut-off valve into the
closed position.
The RED LED lights up.
R
→
Press and
push-button to save the closed
position.
The RED LED lights up 2x.
G
→
Press push-button to
move the shut-off valve into the
open position.
The GREEN LED lights up.
english
Type 3004
