User Manual of iVMS-4000(V2.03)

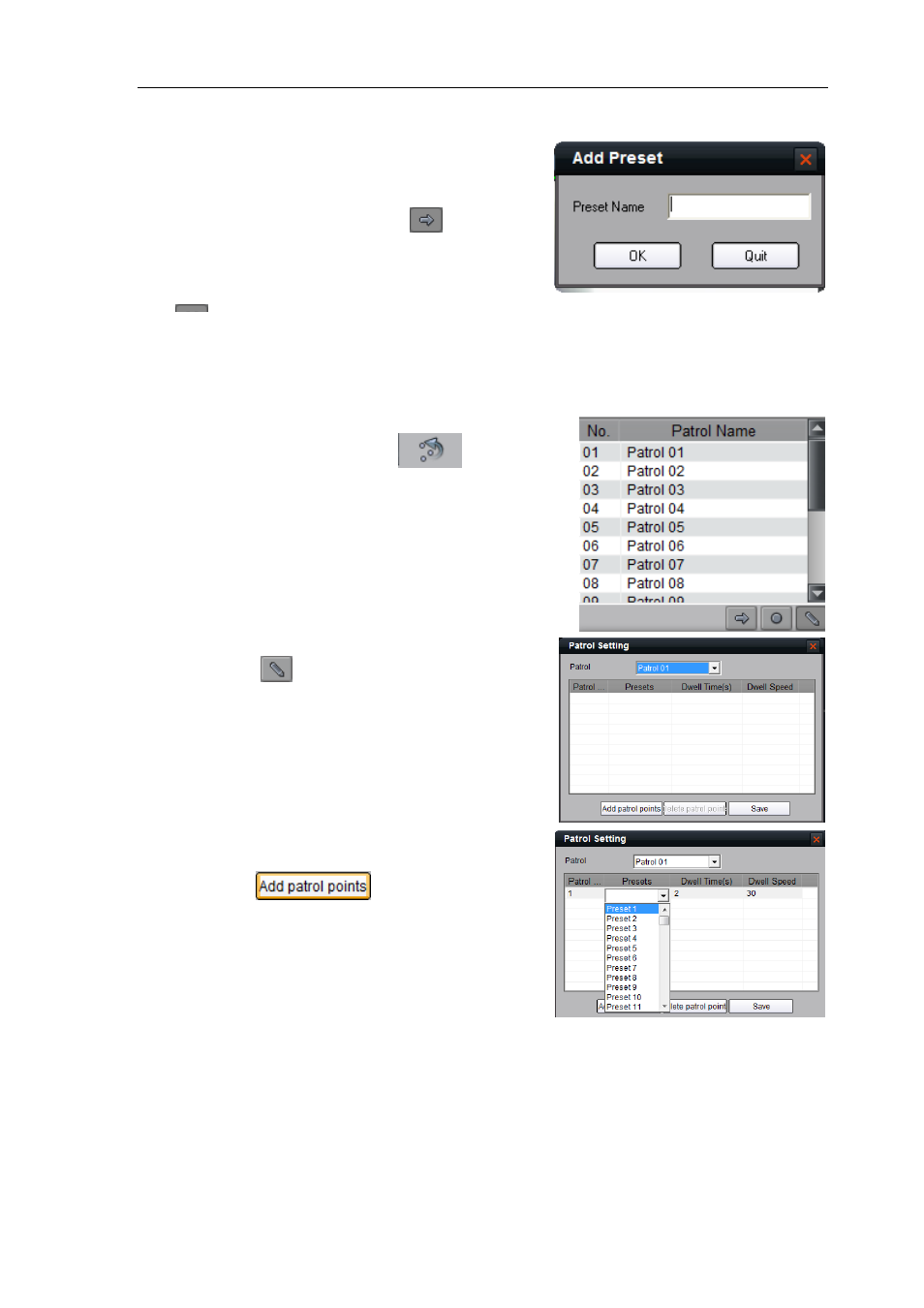

Right click preset to modify or delete this preset,
Move the PTZ to the position you want, and click
“Add” to input preset name, then click OK to finish.
Then double click preset in list or click to call
it.
6.5 Patrol
After adding two or more presets for one channel, you can set a patrol with presets for PTZ.
1 st step: select one channel and click key
to show patrol list.
2 nd step: Click or right click patrol name then
select the preset you would like to enter patrol configure
menu.
3 rd step: Click add the preset to
the patrol, you can also click preset area to select presets
from the list.
43
