If you need to use your own Software Control program from a PC or
automation, the device allows communication through an ASCII code
protocol. All commands can be found on the CD-Rom shipped with
the Eikos in the “External Programming” file.
Information can also be found in the “Programmer’s Guide” on certain
media or documentation (website, CD-Rom,...).
All Analog Way products equipped with a RS-232 input are
compatible with Crestron, AMX, Medialon, and most major control
systems. TCP/IP control ports are also available on most Analog
Way products, as standard or as options.
To control an Eikos with an External Remote Controller (PC Software
Control - Touch Pad Controller…) follow the indications below :
1. First establish a RS-232 communication between the Remote
Control Software and the Eikos, in order to setup the LAN
parameters of the product.
2. In the “Control” - “Eikos LAN Setup” menu, configure the
connection of the Eikos in UDP mode and setup the Local and
Remote Addresses as well as the Local and Remote Ports in
concordance with your Network.
3. Configure the TCP/IP address of your External Remote
Controller.
In example: 192.168.000.001

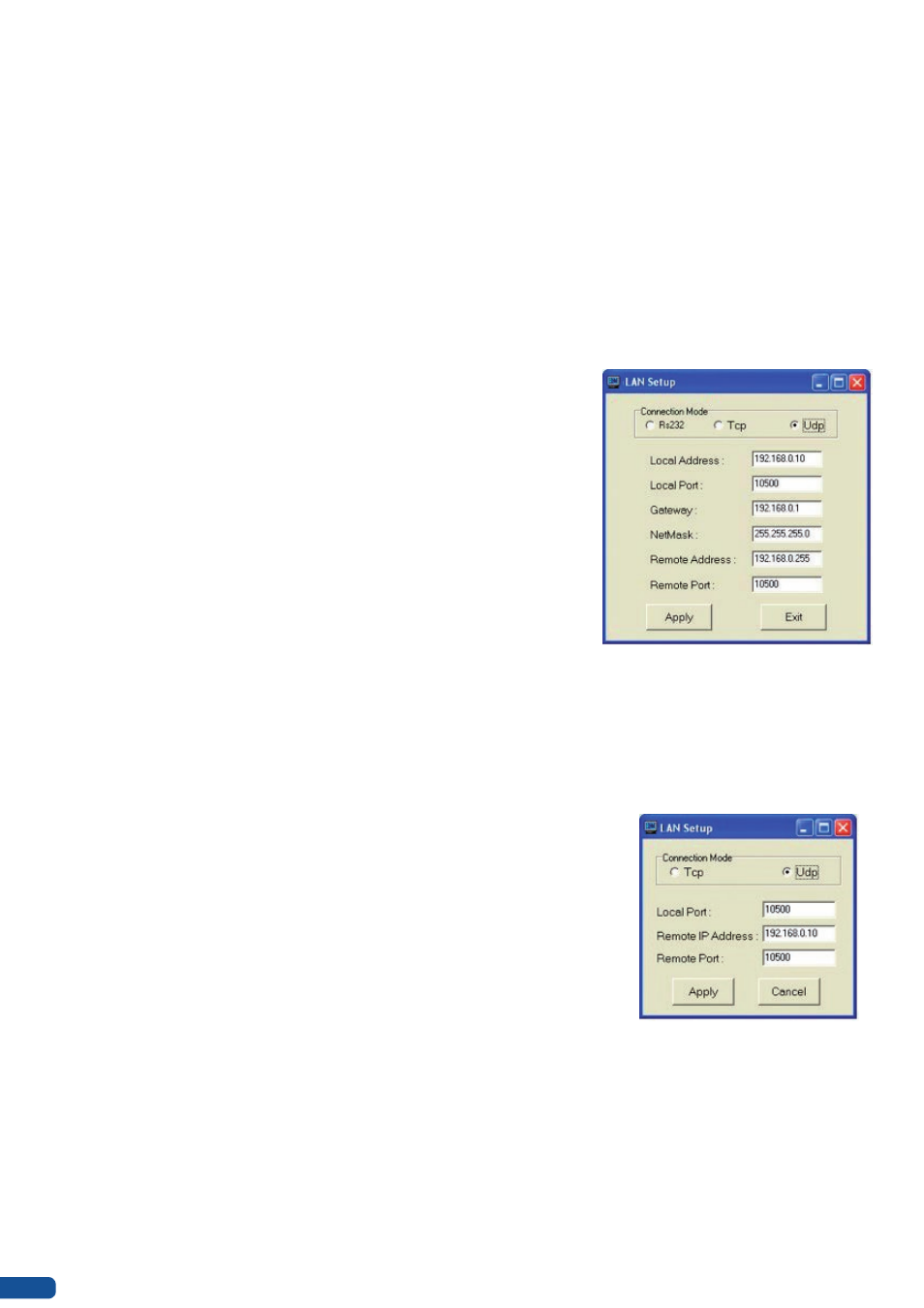

4. Setup the UDP connection of your External Remote Controller in
concordance with your Network.
For example on the Remote Software in the “Control” - “RS232/
LAN Setup” - “LAN/Setup” menu :
5. Setup the LAN parameters in UDP mode in the “Console” - “LAN
Setup” menu.
For example: RK Address: 192.168.000.002
Remote Address: 192.168.000.010
Gateway Address: 192.168.000.001
RK Port: 10500
Remote Port: 10500
Netmask: 255.255.255.000
6. Select the LAN communication port in the remote controller
console - “RS232/LAN port” menu.
7. You can now control your Eikos with an External Remote
Controller.
7-3. EXTERNAL PROGRAMMING
