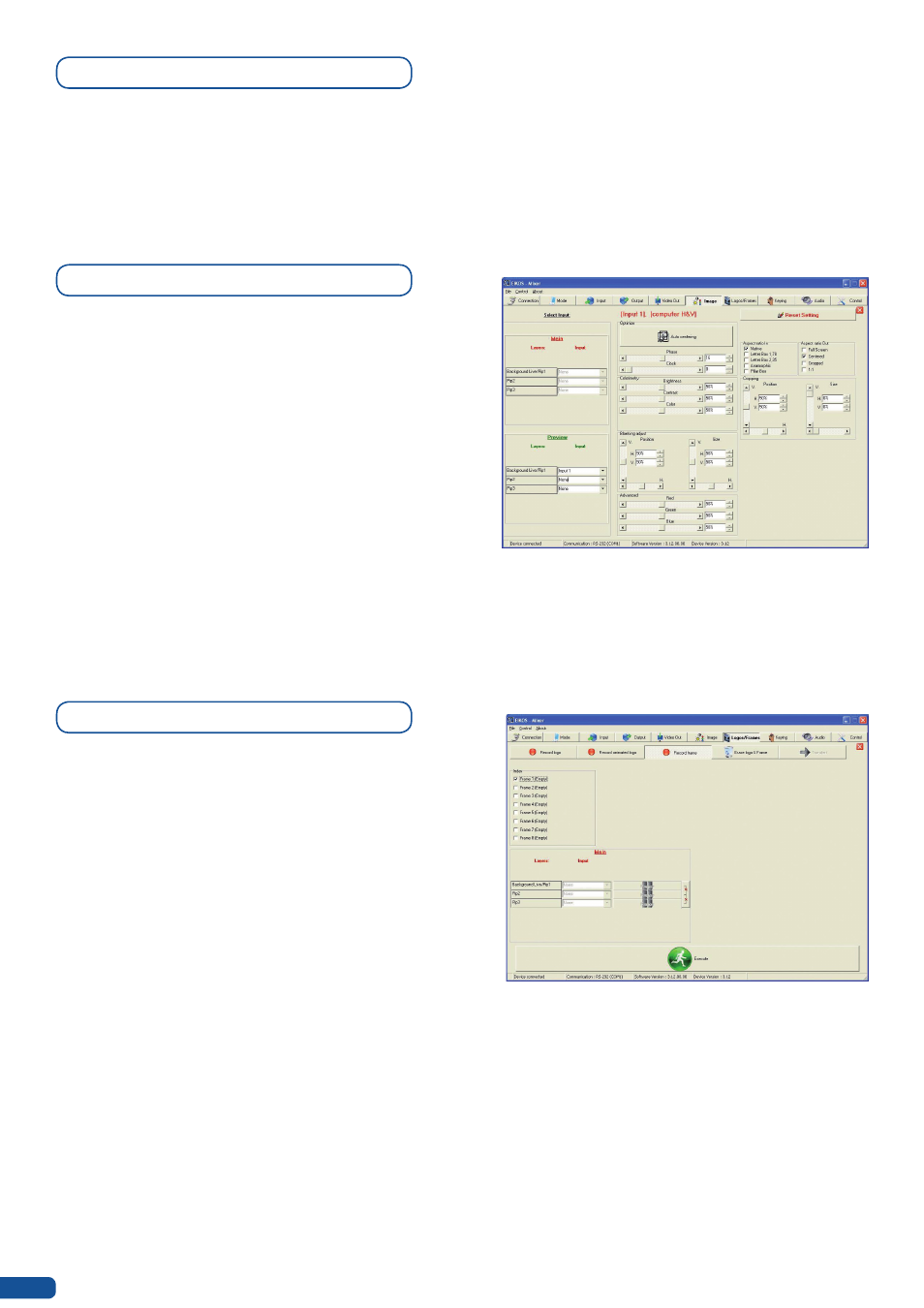

Working with PIPs
The Eikos allows users to manipulate 2 PIPs (Picture In Picture) which you can move, size, crop or zoom,
apply transparency or transitions to.
PIP configuration
1. Click on the Image tab of the RCS interface. The
empty Image screen will appear on screen.
2. By clicking on the drop-down menu in the
Preview section, situated next to the layer
you wish to use as a PIP, you will access the
image parameters of the PIP source you select
( # 1 to # 12)
3. Set the desired PIP attributes (size, position, zoom,
border, transparency...).
4. Click on the Image tab to return to the main screen.
Working with Frames
It is possible to store up to 8 frames in the Eikos non
volatile memory. Frames are mainly used as backgrounds
in a typical show or event setup, and can be recorded from
any of the 8
Eikos sources and called back at the click of
a single button.
* NOTE * : To memorize a frame, select an input, and take
it to the Main screen. Once the frame is displayed on your
Main output, it is then possible to store it to the
Eikos non
volatile memory.
* NOTE * : Frames may be used only one at a time. A
frame may not be used as a Live Background.
