4-2. THE EIKOS MENU

Home menu

Pressing the MENU button in the menu section of the

Eikos, will display and give you access to the following

items on the menu VFD screen:
-

MODE:

select to choose which mode the

Eikos will work (in Mixer or Matrix or Quadravision Mode,

see

Eikos modes p.5).

INPUT:

select to configure the 12 individual input types and resolutions.

MAIN OUT:

in Mixer Mode, select to set the output types and resolutions of the Main output.

OUTPUT 1:

in Matrix Mode, select to set the output types and resolutions of Output 1.

PREVIEW OUT:

in Mixer Mode, select to set the output types and resolutions of the Preview output.

OUTPUT 2:

in Matrix Mode, select to set the output types and resolutions of Output 2.

VIDEO OUT:

select to configure Video output card settings.

PRESET:

select to store and use presets.

PREDEFINED LAYOUTS:

select a layout for the Quadravision Mode.

IMAGE:

select to change source image settings of an input.

KEYING/TITLING:

select to access keying and titling controls and parameters when video layer is selected.

LAYER:

select to adjust layer size, position, border, transparency or transitions.

LOGO/FRAME:

select to store (record), use and manage logos and frames into the

Eikos.

AUDIO

select to access all audio input and output parameters.

OSD Settings:

select to display OSD.

CONTROL:

select to access device software information, LAN settings, reset factory settings, amongst

other user oriented functions.

VIRTUAL T-Bar:

select to access the Virtual T-Bar.

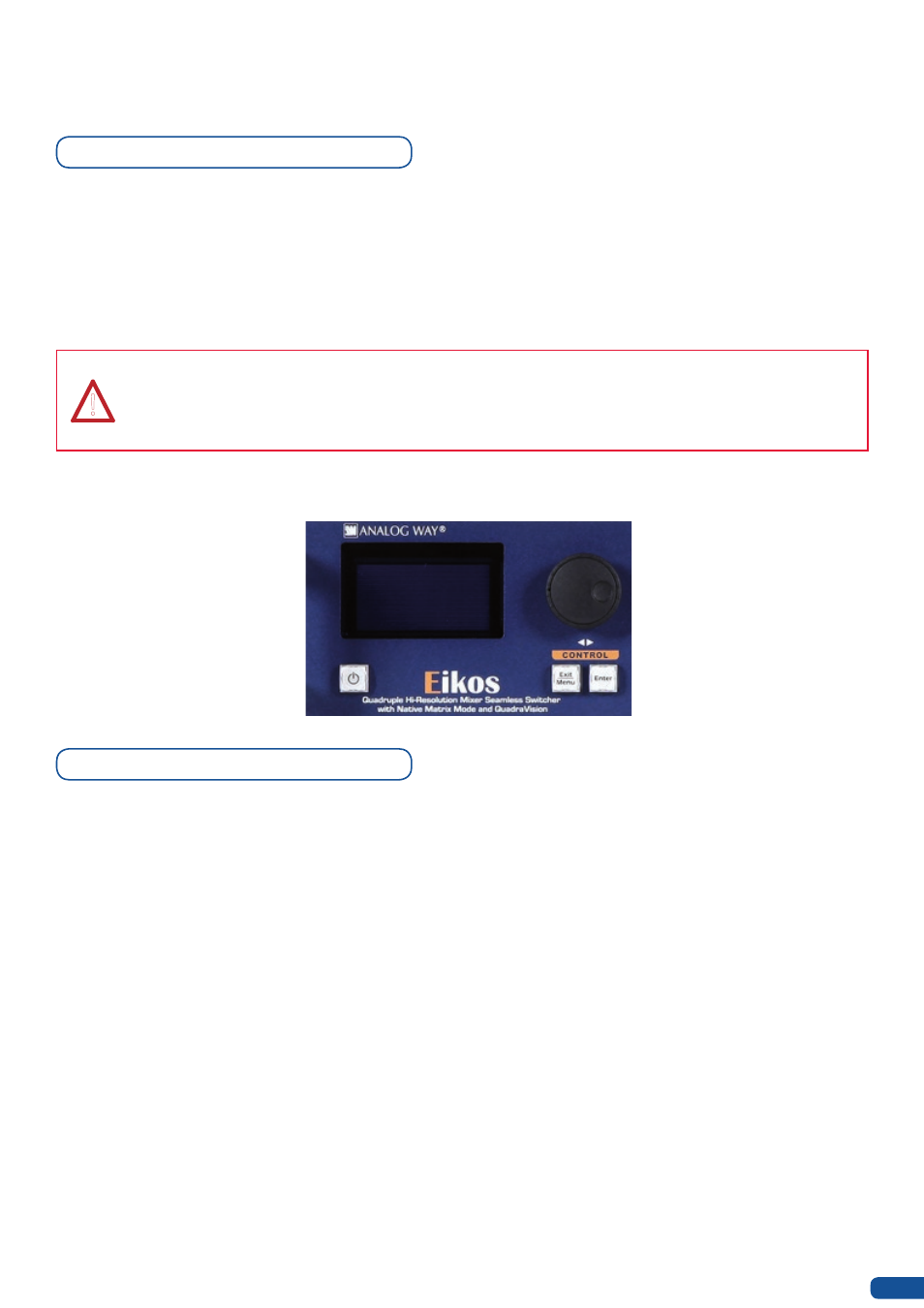

Menu navigation

To access the

Eikos menu, press the EXIT/MENU button in the control section (4). To highlight items in

the menu which will appear on the VFD screen (2), turn the scroll knob (3) left or right to the desired menu

item. When you have reached the desired menu item, press the ENTER button in the control section (4) to

access that menu function. Pressing the ENTER button when a selection has been made sets the value to

that selection in the

Eikos memory. When all settings have been made, press the EXIT/MENU button to exit

sub-menus and return to the main menu.

Simply selecting a menu item will not set it to that value. Be sure to press the ENTER button when

parametering the menu items or to push the scroll knob.
