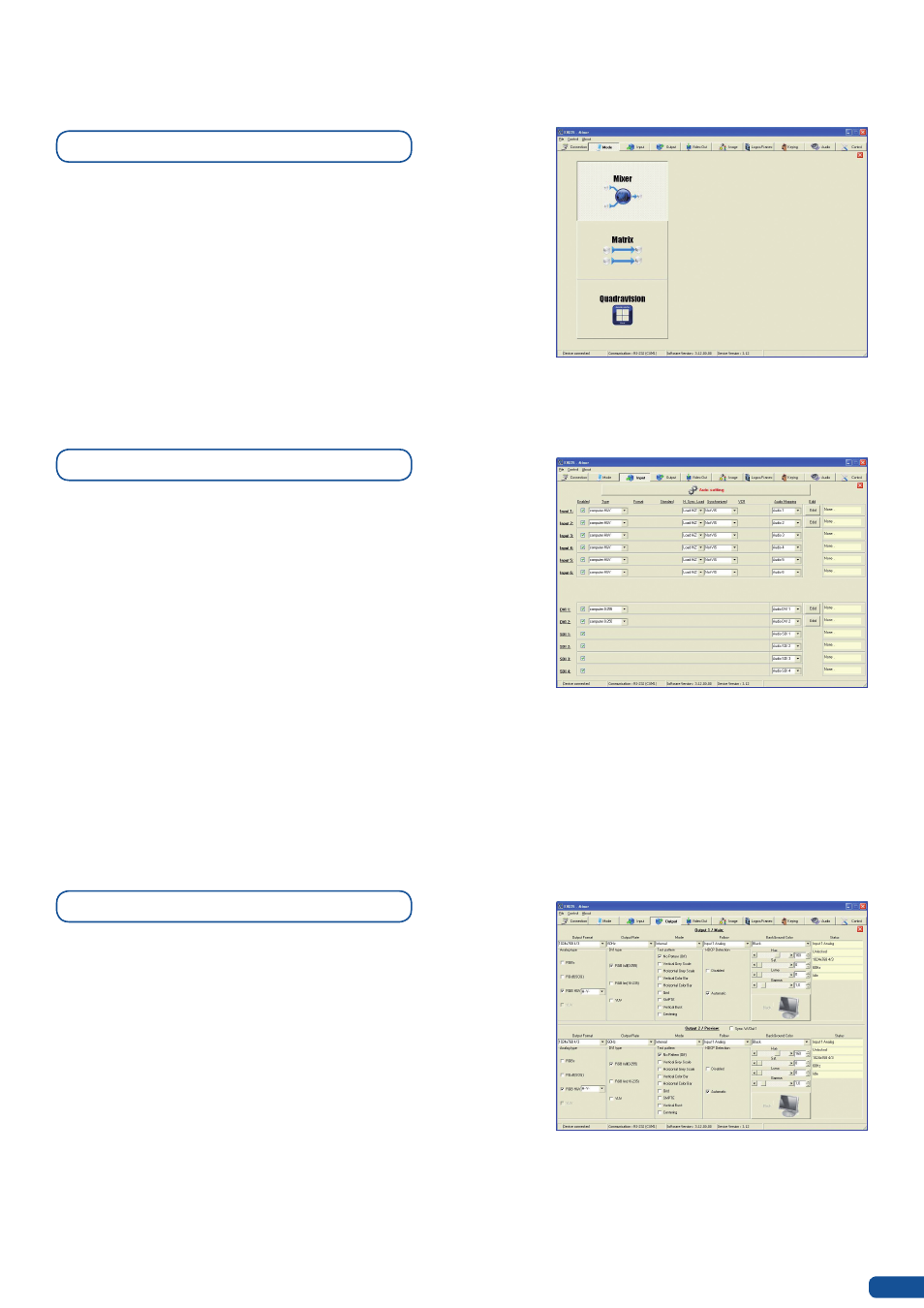

5-2. WORKING WITH THE RCS
Operating Mode
To choose the operating mode you want your Eikos to work in,
simply click the “Mode” tab, then select the desired mode by
clicking on one of the two mode buttons (Mixer or Sync Matrix).
* NOTE * : for further details on different modes, restrictions and
settings, please refer to the “Working with the Eikos” chapter,
p.32, and the “Home Menu” chapter p.61 .
Source input configuration
Once your Eikos is wired up to your PC, the first step in properly
configuring your machine is to individually select and parameter
your inputs.
1. Click on the “Inputs” tab of the RCS.
2. In the Plug column of the “Input” page, select the plug type by
clicking the appropriate field.
3. Activate the input in the Enabled column if it is not.
4. In the scroll-down menu of the Type column, select the signal
type connected to that plug.
5. Repeat steps 2 to 4 for all sources connected to the rear panel of your Eikos.
6. Click on the “Inputs” tab to return to the main screen.
Source output configuration
1. Click on the “Outputs” tab of the RCS.
2. Select the type of plug which is connected to outputs #1 &
#2 of your Eikos by clicking in the appropriate field in Analog
Type or DVI Type for both Main and Preview outputs.
3. Select the appropriate output format and output rate.
4. Click on the “Outputs” tab to return to the main screen.
The Output menu also allows you to generate test patterns. The test patterns available through the
Output menu let you quickly and reliably setup your projectors.
* NOTE * : Be sure to turn the test pattern off to display your sources again.
